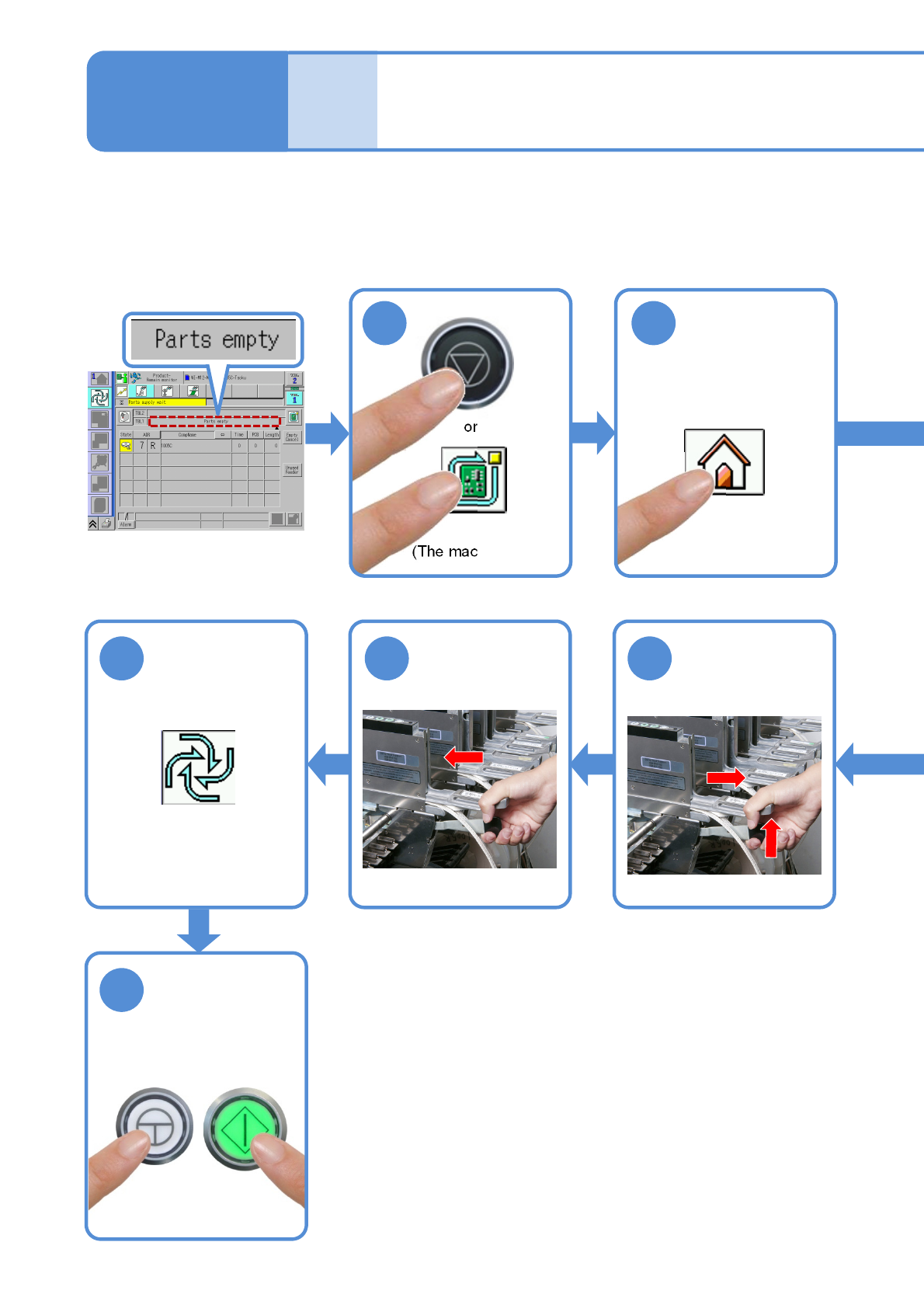

NPM-W2 EJM7DE-MB-03O-00
3-3-1-1
Compo-
nent
supply
Substitution component
supply
(intelligent feeder)
Operating procedure
3-3-1
●Operate the following procedure under Engineer mode.
●Registering components used in normal production as [Master component] and components used in
substitution as [Sub component] enable you to substitute components in the case of component empty.
・How to register (→[NPM-DGS] Operating Instructions Chapter.6)
(The component empty
message appears)
2
10 9 8
or
Remove the
feeder for master
components
Set the feeder for
sub components
to the same slot
Restart
production
●If you are in Operator
mode, change to
Engineer mode.
11
ENABLING START
(The machine stops)
1

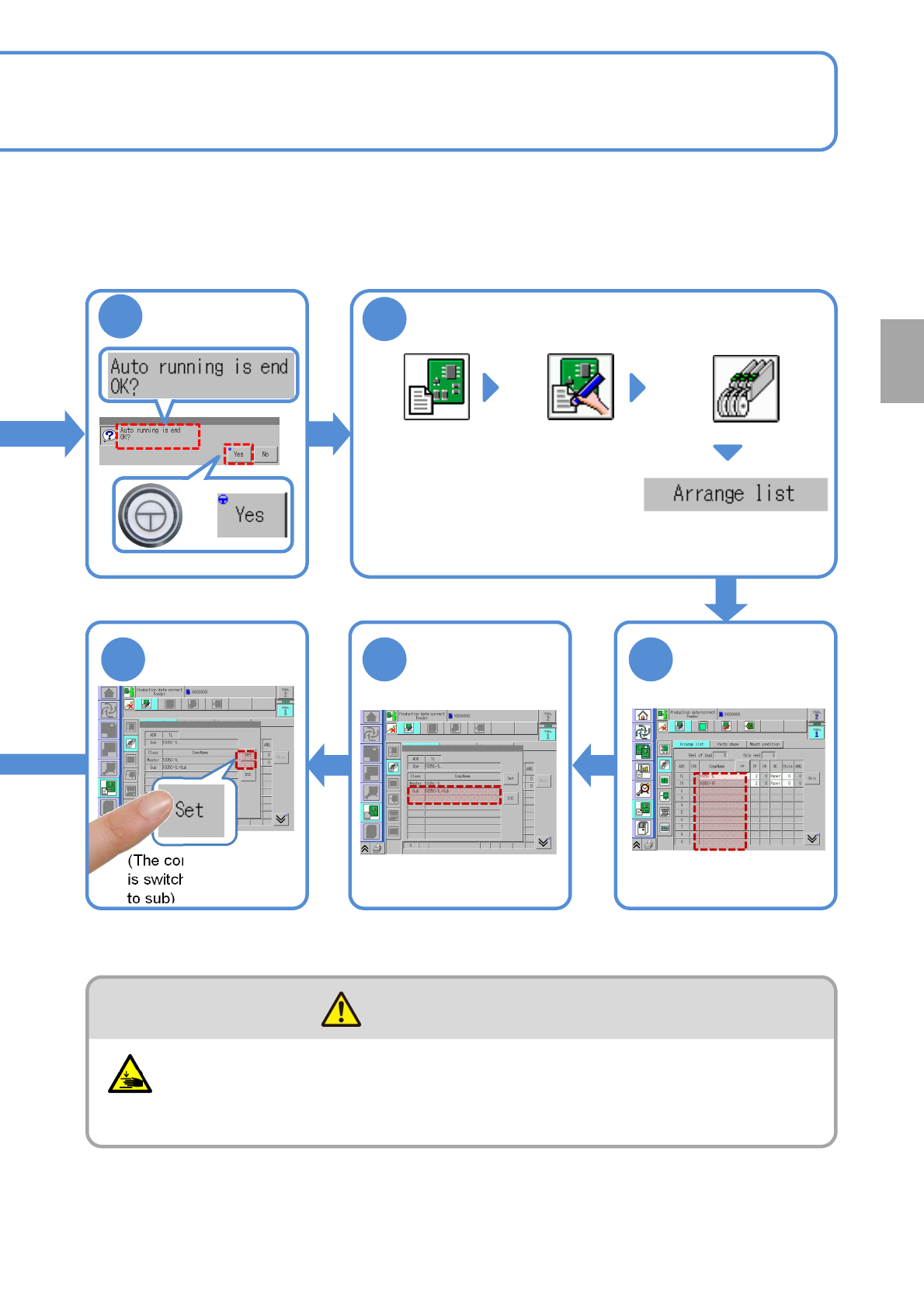

NPM-W2 EJM7DE-MB-03O-00
3-3-1-2
3
4
7 6 5
Confirm the
message
Display the data edit
screen
(Data edit)
Choose the arrangement
list from “Feeder/Tray” layer
Choose a master
component
(→P.6-1-7)
Choose a sub
component
(The component source
is switched from master
to sub)
+
Be careful not to get your fingers caught
(Risk of injury)
●When you attach or detach the feeder.
CAUTION
Production
NPM-W2 EJM7DE-MB-03O-00
3-3-2
A feeder free arrangement function allows the machine to continuously produce PCB even when component
empty by arranging a feeder stored with the same components to the given slot on the table.
Preparation: ●Writes parts information. (→[Support station] operating instruction Chapter 3)
●Turn [ON] the [Parts verification] and [Feeder free arrangement] in
[Feeder]-[option] (→P.7-1-1).
Compo-
nent
supply
Feeder free
arrangement
Operating procedure
3-3-2
Install the feeder set with
the same components to
the empty slot.
Component supply during component empty
Component empty feeder
The message
disappears and
production restarts
Component supply before component empty
Component running out
feeder
Install the feeder set the
same components to the
empty slot.
The message
disappears and
production restarts
