NPM-W2 EJM7DE-MB-03O-00
3-3-2
A feeder free arrangement function allows the machine to continuously produce PCB even when component
empty by arranging a feeder stored with the same components to the given slot on the table.
Preparation: ●Writes parts information. (→[Support station] operating instruction Chapter 3)
●Turn [ON] the [Parts verification] and [Feeder free arrangement] in
[Feeder]-[option] (→P.7-1-1).
Compo-
nent
supply
Feeder free
arrangement
Operating procedure
3-3-2
Install the feeder set with
the same components to
the empty slot.
Component supply during component empty
Component empty feeder
The message
disappears and
production restarts
Component supply before component empty
Component running out
feeder
Install the feeder set the
same components to the
empty slot.
The message
disappears and
production restarts
NPM-W2 EJM7DE-MB-03O-00
3-3-3
Compo-
nent
supply
3
1
5 4
2
6
7
8
Operating procedure
3-3-3

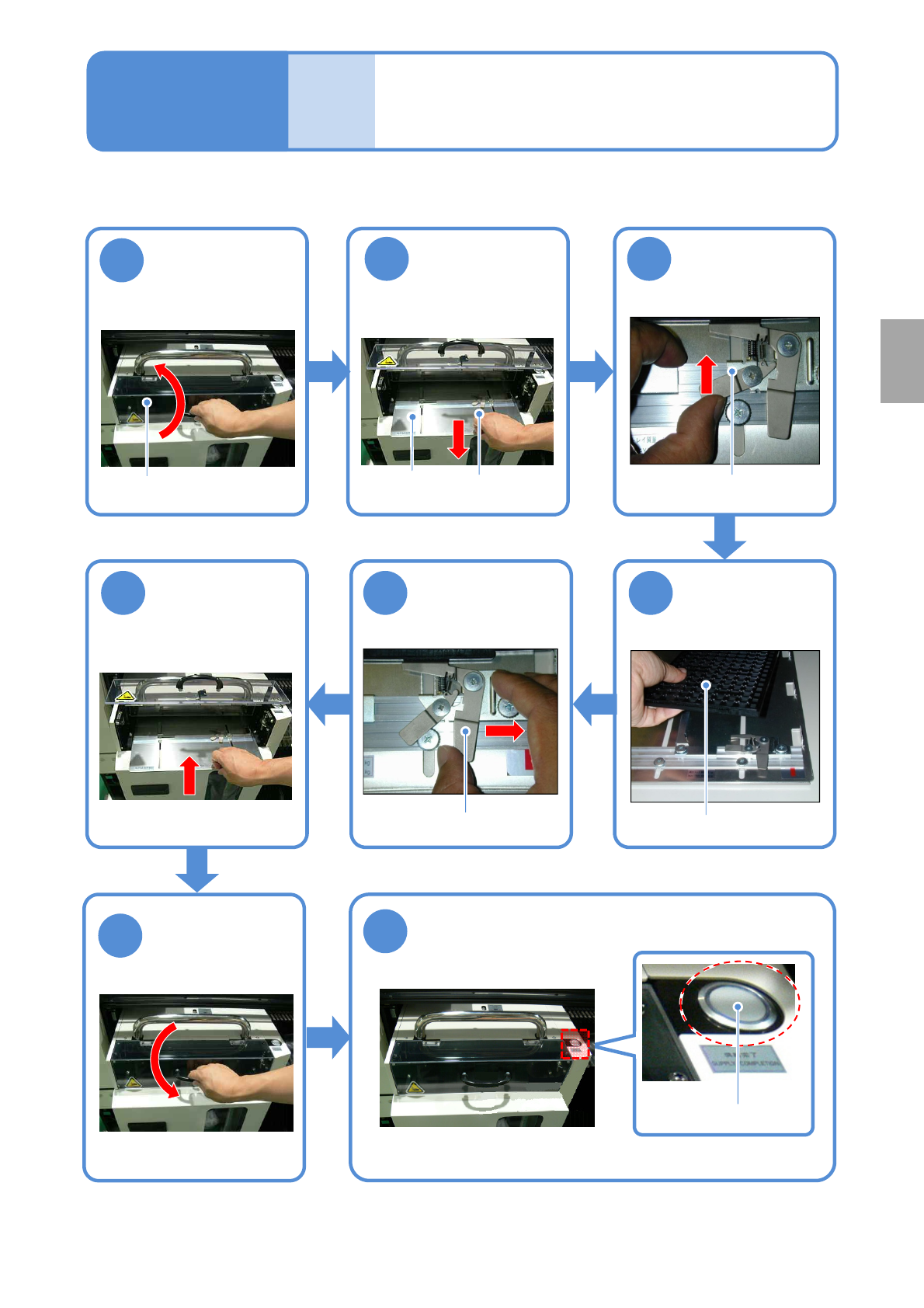

Tray replacement
(tray feeder)
Open the feeder
cover
Release the
clamp
Take out the
pallet
Replace the tray
Secure the tray
Return the pallet
back
Close the feeder
cover
Press the Feeder set
button
(The pallet moves back into the magazine)
Clamp release lever
Feeder set button
Feeder cover
Pallet
Clamp release lever
Clamp
When all components in the tray run out, replace it with the new components installed tray.
Production
Tray
