NPM-W 2 EJM7DE-MB-04 O-00 4-4-3 -8 D C E F G H I J 1 B A C D G H E F I J A B TBL (table) ADR (address) Returns to the previous screen. (Displays detailed error information) Foreign body Different component Flip-over The …

100%1 / 714
NPM-W2 EJM7DE-MB-04O-00
A
TBL (table)
B
ADR (address)

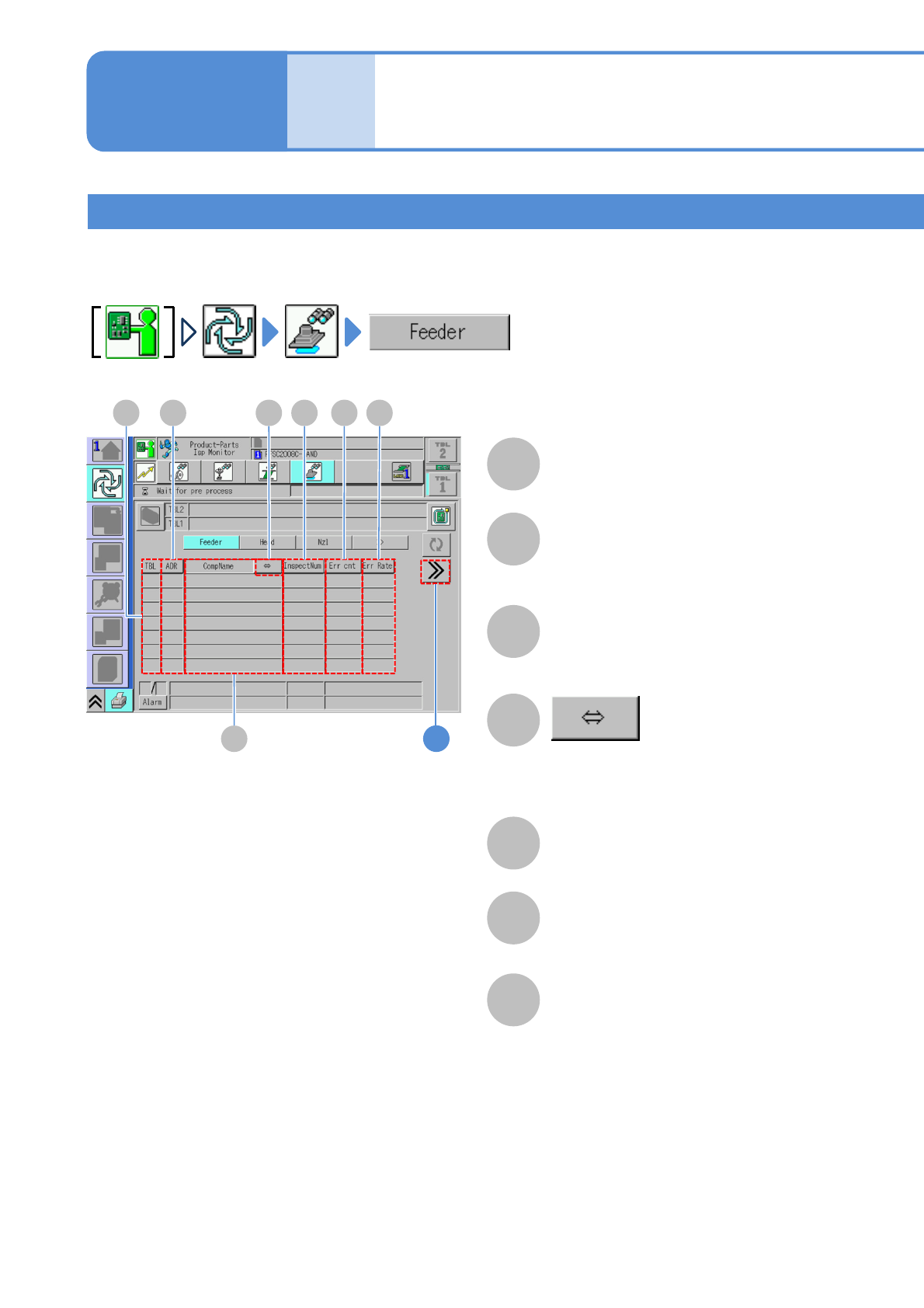

Feeder
A
C
C
CompName
4-4-3-7
B D E F G
D
F
G
E
Err cnt
Err Rate
1
Inspection monitor 4
Operating procedure
4-4-3
Produc-
tion
Shows the rest of the component name
by scrolling.
InspectNum
Feeder address No.
e.g., (02L...05R...07C )
The number of inspected components
judged as defective.
(Err cnt / InspectNum) × 100 (%)
In the cases such as these, where certain feeders produce a high concentration of defects, the components
judged as defective are checked on a per-feeder basis so that they are utilized to identify and take measures
against the causes of defects.
NPM-W2 EJM7DE-MB-04O-00
4-4-3-8
DC E F G H I J
1
B
A
C
D
G
H
E
F
I
J
A
B
TBL (table)
ADR (address)
Returns to the previous screen.
(Displays detailed error information)
Foreign body
Different component
Flip-over
The number of polarity inspection errors.
Presence/absence
The number of foreign body inspection
errors.
The number of different component
inspection errors.
(Currently not in use)
Position
Polarity
The number of polarity inspection errors.
Other
The number of other errors.
The number of presence/absence
inspection errors.
The number of displacement inspection
errors.
Component
inspection
NPM-W2 EJM7DE-MB-04O-00
4-4-3-9
A
B
E
F
A
C
C
Nozzle No.
D E F
TBL (table)
B
Nozzle Pos
D
Err cnt
Err Rate
InspectNum
1
Inspection monitor 5
Operating procedure
4-4-3
Produc-
tion
Placement head
In the cases such as these, where certain placement heads produce a high concentration of defects, the
components judged as defective are checked on a per-placement head basis so that they are utilized to
identify and take measures against the causes of defects.
The number of inspected components
judged as defective.
(Err cnt / InspectNum) × 100 (%)
Position of nozzles inside the placement
head.
