NPM-W2 EJM7DE-MB-05O-00
Checking the lighting condition (Unnecessary under normal condition)
Operating procedure
5-3-2
1
Name
Comment
●Choose the component search mode.
2
+
1
■When the mode is a component name
1
Produc-
tion data
and
teach
Capturing the images
of teaching PCB 3
1 2
3
3
Confirm the message
The lighting adjustment function is used only if difficult to inspect solders in the normal lighting conditions.
Move the inspection head to a solder location, and, checking the image, adjust the lighting to the condition
(high contrast condition) best suited for inspection. For your information, if applying the adjusted lighting
condition for the inspection condition, set the lighting condition in 2D inspection editor on a per-solder basis.
(→[NPM-DGS 2D inspection editor])
●Even though the PCB after solder printing is used, the head is moved to the placement position to specify
the component.
5-3-2-5
(PCB is loaded, and the component
search/image confirmation screen is
displayed)
●A message appears when there are
not any PCBs in the upstream machine.
+
NPM-W2 EJM7DE-MB-05O-00
2
Choose a component name
2
3
+
(The head moves to the selected
component position.)
A
4
5
+
3
4 5
A
（Returns to the next layer up.）
（Returns to the next layer up.）
5-3-2-6
Solder
inspection

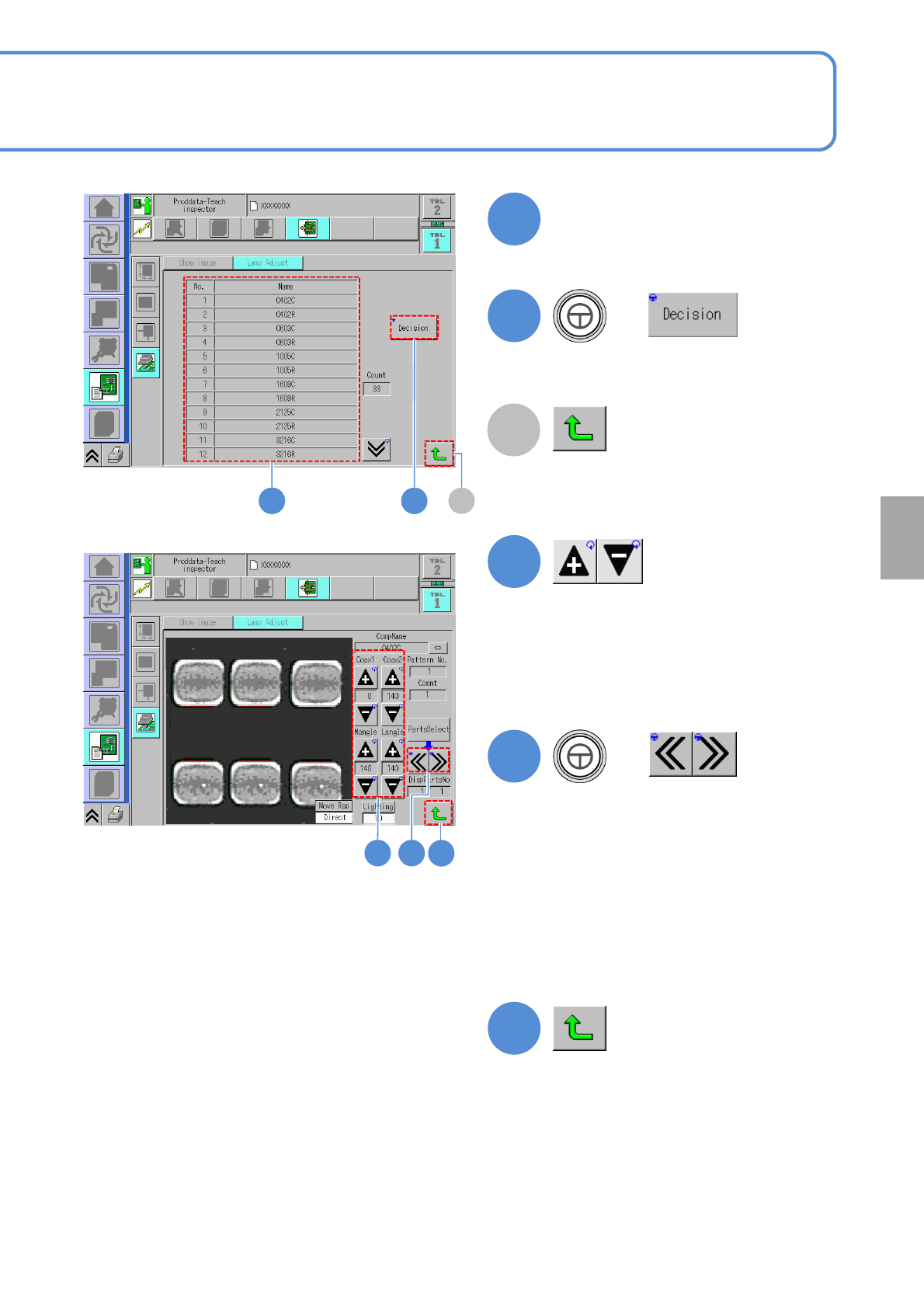

(The inspection head moves to another
part of the same component name)
●Use to check an image of another
solder.
●Check the screen for the imaging
capability suitable for inspection while
changing each lighting value.
●In adopting the adjusted lighting value
to inspection condition, record the
adjusted value
6
●Change each lighting value of coaxial1,
coaxial2, middle angle and lower angle
then adjust the image which is suitable
for inspection.
6
