NPM-W 2 EJM7DE-MB-05O-0 0 Ca pturing the ima ges of teac hing PCB 4 Operating procedure 5-3-2 1 ■ When the mode is a comment 1 (The screen where you select the componen t to check its image condition is displayed.) 2 3 5…
NPM-W2 EJM7DE-MB-05O-00
2
Choose a component name
2
3
+
(The head moves to the selected
component position.)
A
4
5
+
3
4 5
A
（Returns to the next layer up.）
（Returns to the next layer up.）
5-3-2-6
Solder
inspection
(The inspection head moves to another
part of the same component name)
●Use to check an image of another
solder.
●Check the screen for the imaging
capability suitable for inspection while
changing each lighting value.
●In adopting the adjusted lighting value
to inspection condition, record the
adjusted value
6
●Change each lighting value of coaxial1,
coaxial2, middle angle and lower angle
then adjust the image which is suitable
for inspection.
6
NPM-W2 EJM7DE-MB-05O-00

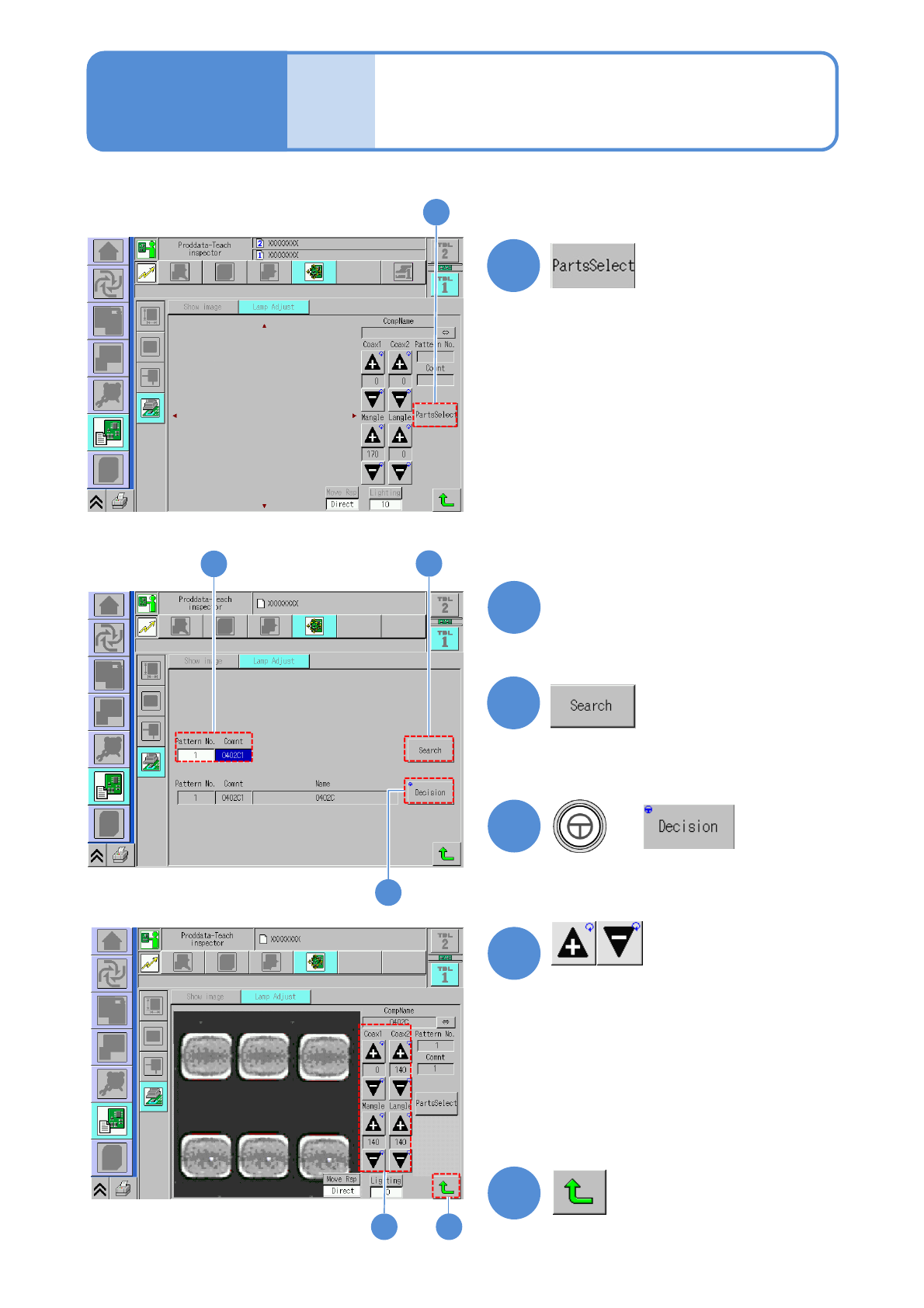

Capturing the images
of teaching PCB 4
Operating procedure
5-3-2
1
■When the mode is a comment
1
(The screen where you select the
component to check its image condition
is displayed.)
2
3
5
4
Enter the pattern number and
the comment
2
3
(The comment information that matches
the entered data is displayed on the
screen.)
4
+
●The head moves to the selected
component position.
5
Produc-
tion data
and
teach
5-3-2-7
（Returns to the next layer up.）
6
6
●Change each lighting value of coaxial1,
coaxial2, middle angle and lower angle
then adjust the image which is suitable
for inspection.
●Check the screen for the imaging
capability suitable for inspection while
changing each lighting value.
●In adopting the adjusted lighting value to
inspection condition, record the adjusted
value
NPM-W2 EJM7DE-MB-05O-00
5-4-1

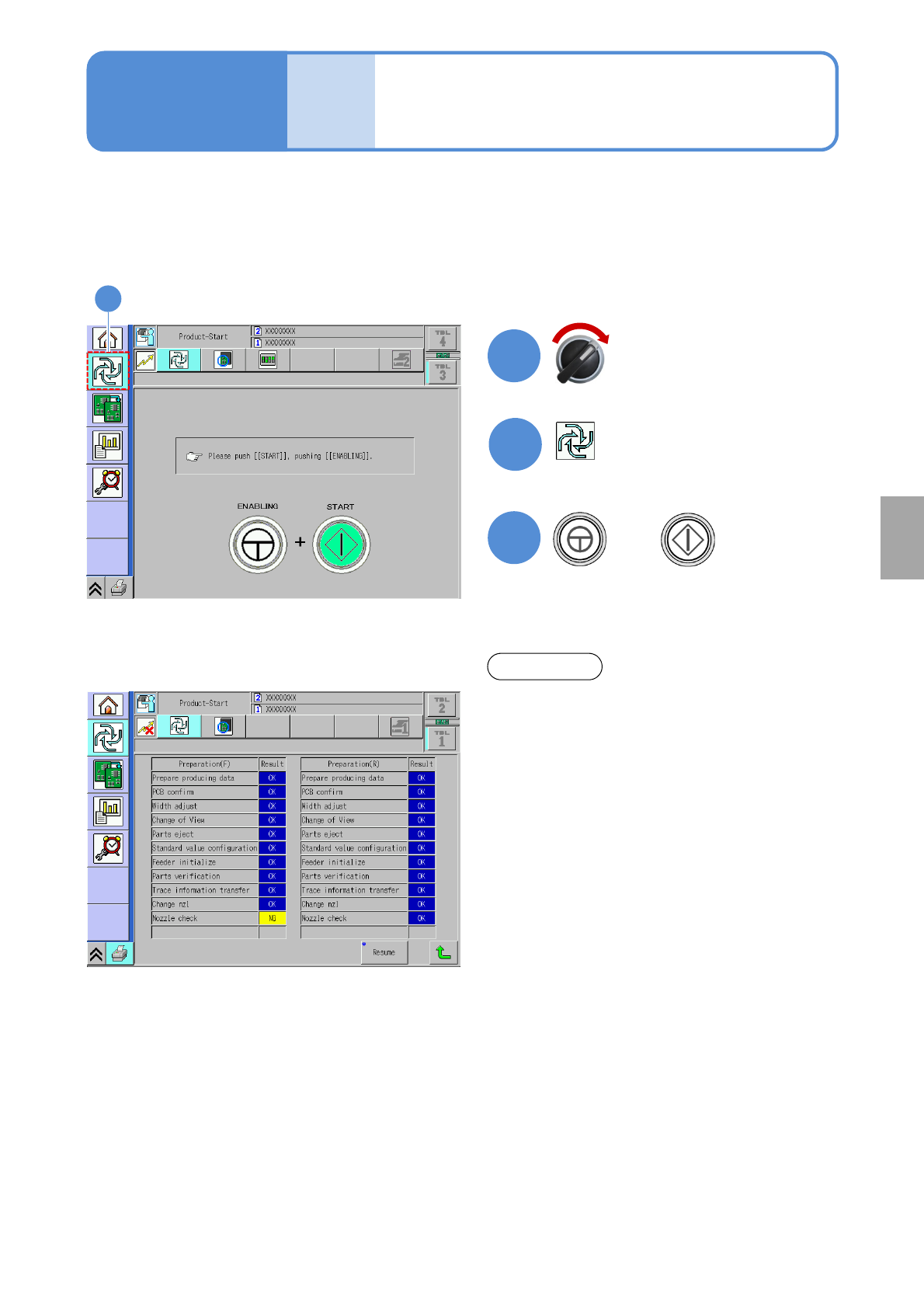

When the production data teach ends, the production starts.
2
2
Starting production
Operating procedure
5-4-1
●Ensure that the power supply of the peripheral devices such as barcode reader is turned ON when
starting the production.
Servo switch ON
1
3
+
Produc-
tion
When something abnormal occurs during self-
diagnosis, an error item is displayed. Please
handle the error accordingly.
NOTICE
Solder
inspection
