NPM-W 2 EJM7DE-MB-05O-0 0 1 5-4-4 -4 1 When setting the undefined on a per-solder basis ■ For over judge (OK judge) (Over judge is set, and a component is placed) ● In the presence of other defecti ve solders, the next o…
NPM-W2 EJM7DE-MB-05O-00

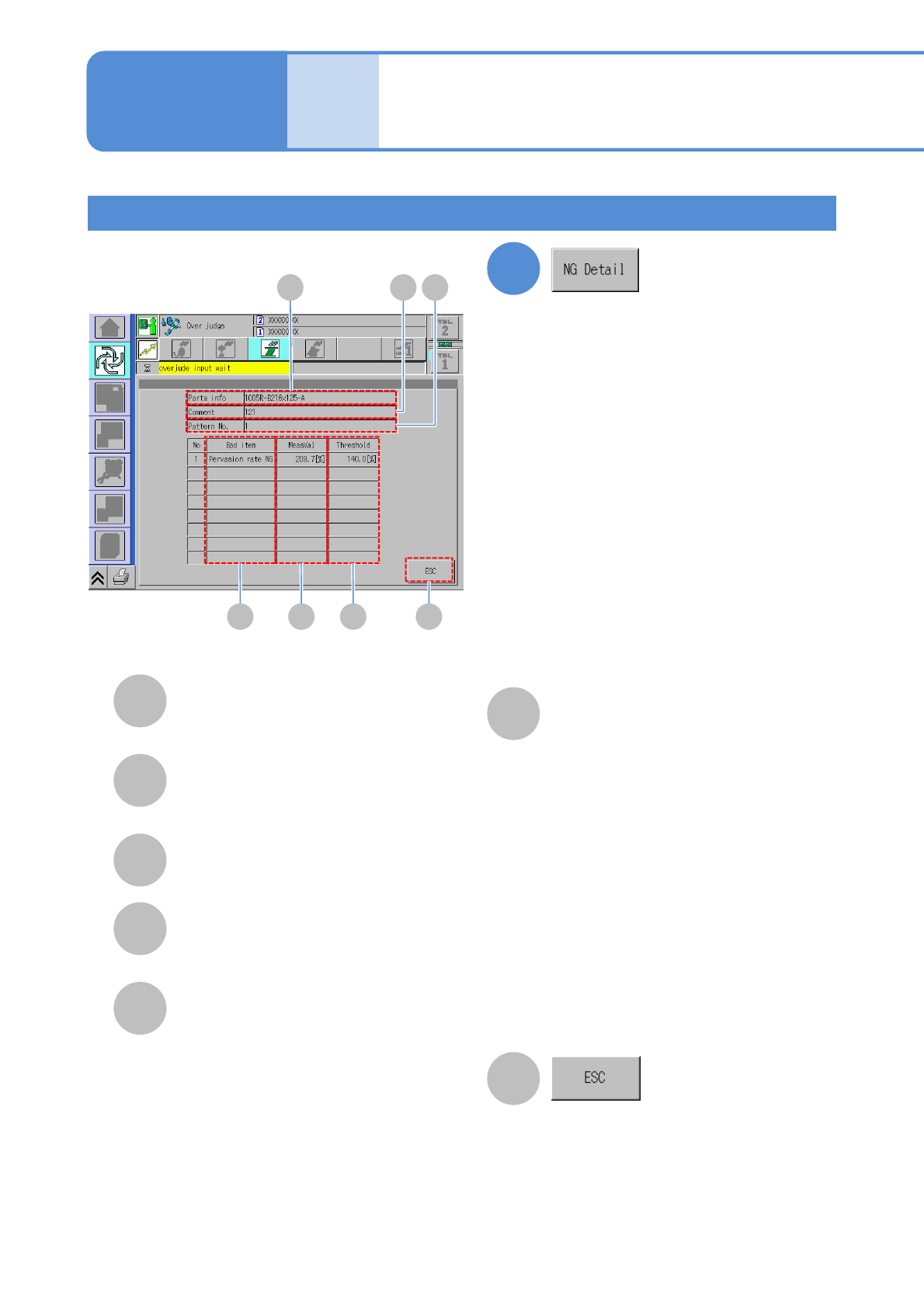

Wrong judgment input
screen 2
Operating procedure
5-4-4
A
E
B
Comment
C
Pattern No
G
Return to the previous screen.
MeasVal
Displays the measurement value per defect
item.
Fill rate NG: Area rate [%]
Pervasion rate NG: Area rate [%]
Bridge NG: Bridge width [mm]
Misalignment X NG: Misalignment X [mm]
Misalignment amount Y NG: Misalignment
Y [mm]
Shape error NG: Abnormal shape rate [%]
GD
A
D
Bad item
Displays the defect item name regarding
solder displayed on the screen.
B C
E F
Comp info
Name of a placement component (part
name).
F
Threshold
Display the threshold per defect item
Fill rate NG:
Lower limit threshold of area rate NG [%]
Pervasion rate NG:
Upper limit threshold of area rate NG [%]
Bridge NG:
Upper limit threshold of bridge width
NG [mm]
Misalignment amount X NG:
Upper limit threshold of misalignment X
NG [mm] (±)
Misalignment amount Y NG:
Upper limit threshold of misalignment Y
NG [mm] (±)
Shape error NG:
Upper limit threshold of abnormal shape
rate NG [%]
Produc-
tion
5-4-4-3
1
Over judge input
(Displays detailed NG information)
NPM-W2 EJM7DE-MB-05O-00
1
5-4-4-4
1
When setting the undefined on a per-solder basis
■For over judge (OK judge)
(Over judge is set, and a component is
placed)
●In the presence of other defective
solders, the next one is displayed.
■For NG solder judge
(NG is set, and components are not
placed)
●In the presence of other defective
solders, the next one will be displayed.
■For NG placement
(NG is set, and a component is not
placed)
●In the presence of other defective
solders, the next one will be displayed.
Solder
inspection
NPM-W2 EJM7DE-MB-05O-00
5-4-4-5
1
2
+
+
1
Wrong judgment input
screen 3
Operating procedure
5-4-4
Produc-
tion
When setting all the undefined at once
2
2
or
●
Placement proceeds along the course of the
setting of solder inspection condition.
All subsequent placements discontinues.
Choose a collective setting
method
■For placement by pattern
after all solders inspection
■For placement after all solders
inspection
■ The number of NG judgments < 100
(All the undefined is set as NG at once)
●The confirmation screen varies with
the setting of solder inspection
condition.
The undefined is set as NG.
●When the solder inspection condition is set to “Placement by pattern after all solders inspection” or “Solder
inspection right before placement,” the setting can be altered so as to discontinue all subsequent
placements. (→P.5-5-2)
