NPM-W 2 EJM7DE-MB-05 O-00 1 2 ■ T o judge per component 1 ■ The number of NG judgments ≥ 100 (Comp onents are no t placed) ● Over 100 componen ts have been subject to inspection. ■ T o judge all at once (All the undefine…
NPM-W2 EJM7DE-MB-05O-00
5-4-4-5
1
2
+
+
1

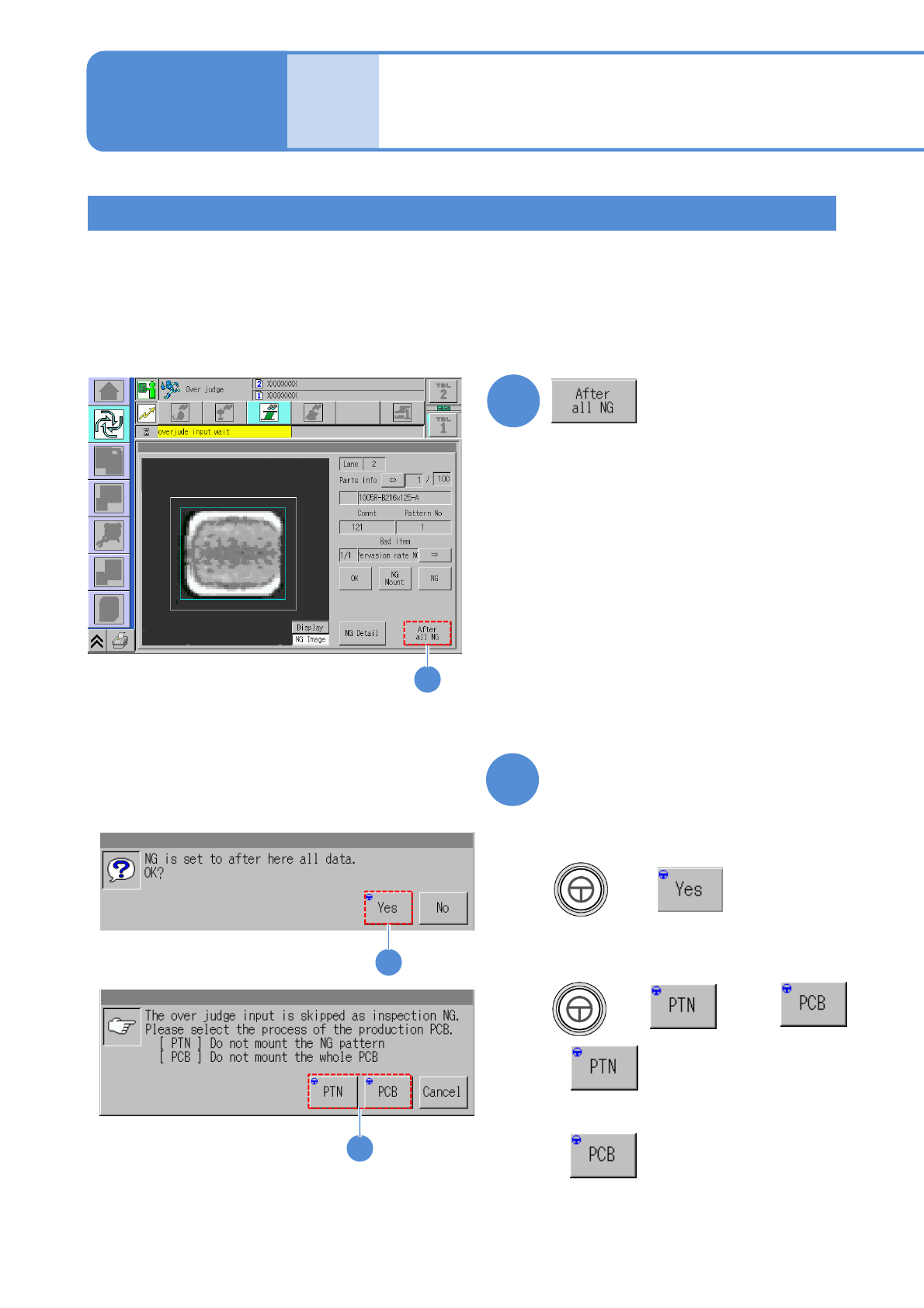

Wrong judgment input
screen 3
Operating procedure
5-4-4
Produc-
tion
When setting all the undefined at once
2
2
or
●
Placement proceeds along the course of the
setting of solder inspection condition.
All subsequent placements discontinues.
Choose a collective setting
method
■For placement by pattern
after all solders inspection
■For placement after all solders
inspection
■ The number of NG judgments < 100
(All the undefined is set as NG at once)
●The confirmation screen varies with
the setting of solder inspection
condition.
The undefined is set as NG.
●When the solder inspection condition is set to “Placement by pattern after all solders inspection” or “Solder
inspection right before placement,” the setting can be altered so as to discontinue all subsequent
placements. (→P.5-5-2)
NPM-W2 EJM7DE-MB-05O-00
1
2
■To judge per component
1
■ The number of NG judgments ≥ 100
(Components are not placed)
●Over 100 components have been
subject to inspection.
■To judge all at once
(All the undefined components are not
placed at once)
●Over 100 components have been
subject to inspection.
or
+
■When solder inspection is
performed before placement
●
PCB is placed according to the solder
inspection condition setting.
All subsequent placements are cancelled.
+
+
5-4-4-6
Solder
inspection
NPM-W2 EJM7DE-MB-05O-00
5-4-4-7
1
+
Confirm the message
1
(Automatic operation starts)
Produc-
tion
Wrong judgment input
screen 4
Operating procedure
5-4-4
Resuming production
