NPM-W2 EJM7DE-MB-06O-00
6-1-8-2
A
Limit
Recog height
Pickup pos.
B
D
C
E
Press
+
+
+ L: Tolerance of a component length
in + direction.
- L: Tolerance of a component length in
- direction.
+ W: Tolerance of a component width
in + direction.
- W: Tolerance of a component width in
- direction.
2
F
Returns to the previous screen.
Enter the recognition height.
Eject height
Enter the eject height.
Confirm and edit the detailed data.
Setting
change
A
CD E
B
F
Mount:
The placement gap [mm]
Pickup:
The pickup gap [mm]
(*Editable only for 2- and 3-nozzles)
NPM-W2 EJM7DE-MB-06O-00
6-1-8-3
54
4
Choose the placement position
offset data to display the related
data.
Choose the trend range check data
to display the related data.
Choose the center range check
data to display the related data.
Choose the luminosity check data
to display the related data.
Choose the 2D clipping level data
to display the related data.
Choose the desired item to
confirm
Data
editing
Component shape data
edit 2
Square chip component 2
Operating procedure
6-1-8
3
Confirm and edit the recognition option
data.
NPM-W2 EJM7DE-MB-06O-00
6-1-8-4
5
Edit the desired item

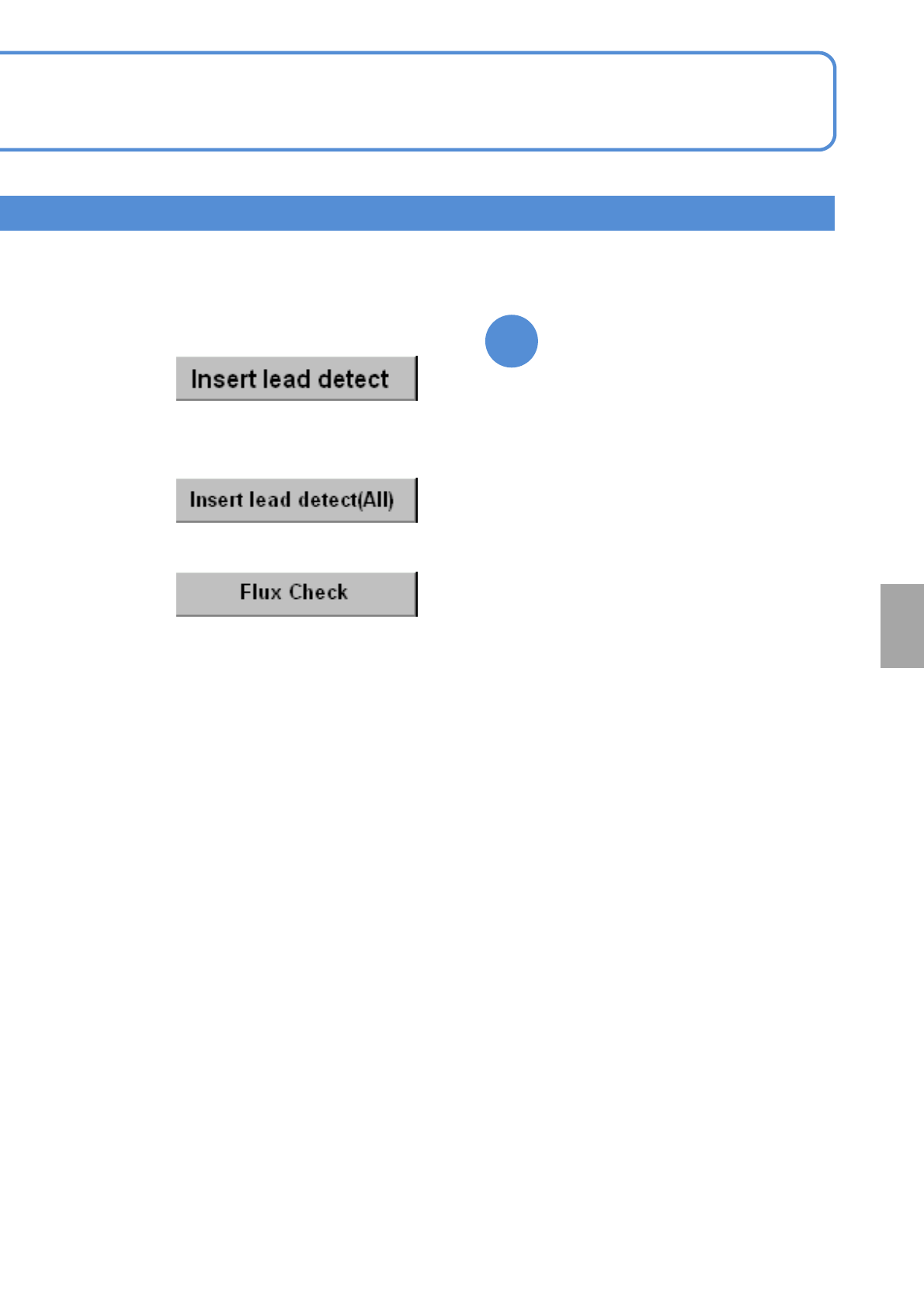

Choose the insertion lead detection
to display the related data.
Choose the insertion lead (all) to
display the related data.
Choose the flux check data to
display the related data.
Setting
change
