NPM-W 2 EJM7DE-MB-06O-0 0 6-1-15 -1 A A Data editing Dispensing condition da ta edit 1 (dispensing head) Operating procedure 6-1-15 You can view and set the conditions of dispensin g adhesives onto a PCB. D H B C The dis…
NPM-W2 EJM7DE-MB-06O-00
6-1-14-2
Setting
change
NPM-W2 EJM7DE-MB-06O-00
6-1-15-1
A
A
Data
editing
Dispensing condition
data edit 1 (dispensing head)
Operating procedure
6-1-15
You can view and set the conditions of dispensing adhesives onto a PCB.
D
H
B
C
The dispensing timing condition setting
items are displayed. (Available when the
dispensing timing control is set “ON”)
E F
BC G I J
M L K
The basic condition setting items are displayed.
D
The setting items of the multipoint coordinate
data are displayed. (Available when there is
multipoint dummy dispensing data)
E
The setting items of drawing data are displayed.
(Available when there is drawing data)
F
The coordinates of the drawing data are
displayed.
(Available when there is drawing data)
The setting items of the conditions 1 and 2
are switched.
The conditions 1 and 2 are switched
depending on the order of the component
placement and dispensing.
If the data is not set, the condition is not
allowed to change.
Cond1
Cond2
Perform dispensing before
component placement
(standard)
Perform dispensing after
component placement
■[Dispensing condition] screen
NPM-W2 EJM7DE-MB-06O-00
6-1-15-2
I
J
K
L
M
G
H
100%
80%
60%
40%
20%

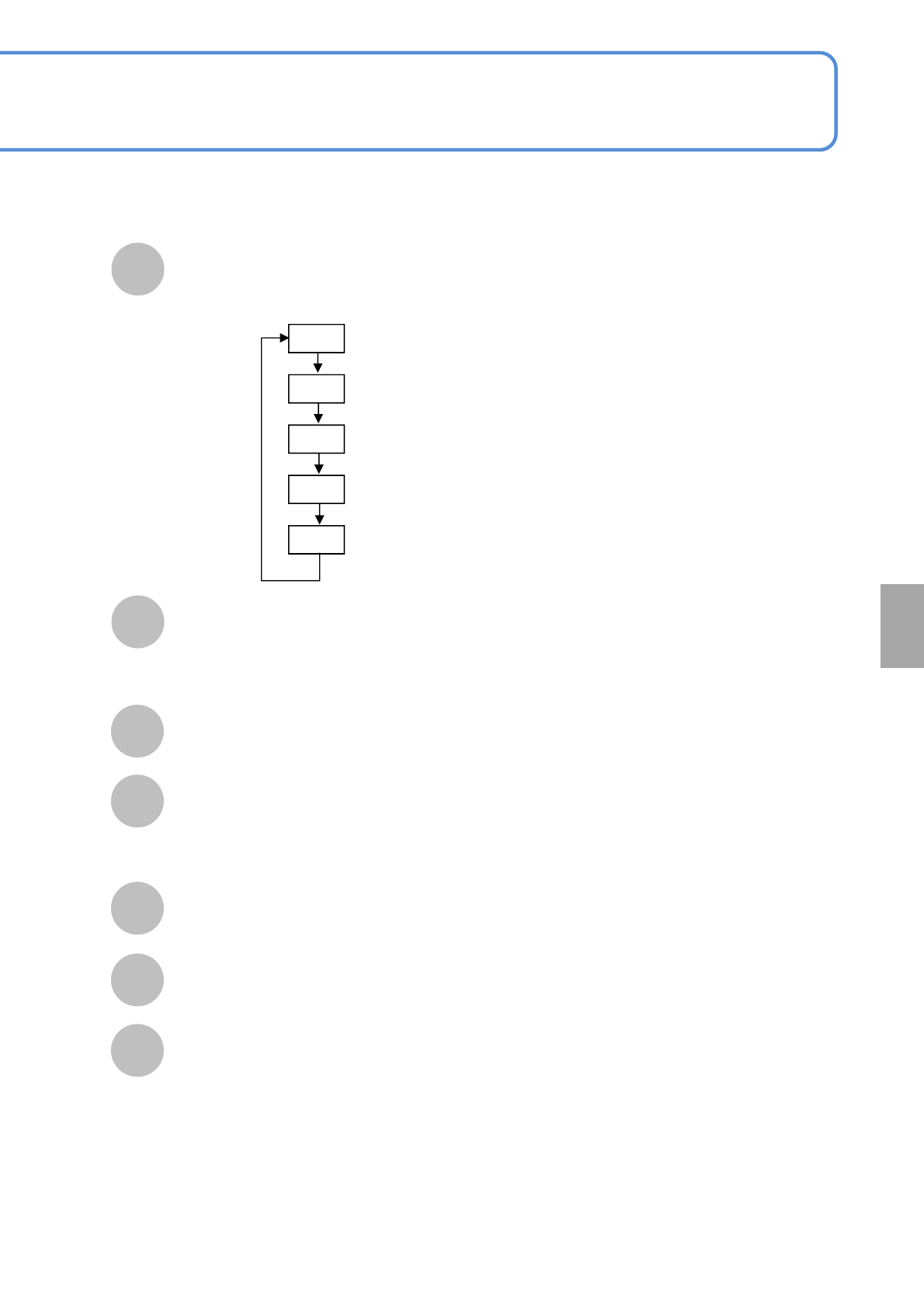

Dispenser Rise Speed
Dispenser Descend Speed
Dispensing time (s)
Head rise pos (mm)
Dispenser time ctrl
Whether the dispending timing is
controlled or not is displayed,
Head Stop Position (mm)
Dispenser type
The dispensing type is displayed.
The data cannot be modified on the
machine.
Choose the ascent velocity of a syringe.
Choose the decent velocity of a syringe.
The order for choosing the velocity is as
same as ‘Dispenser Rise Speed.’
The distance between PCB upper
surface and the nozzle lower end.
●Set value: 0.001 mm to 30.0 mm
Setting
change
