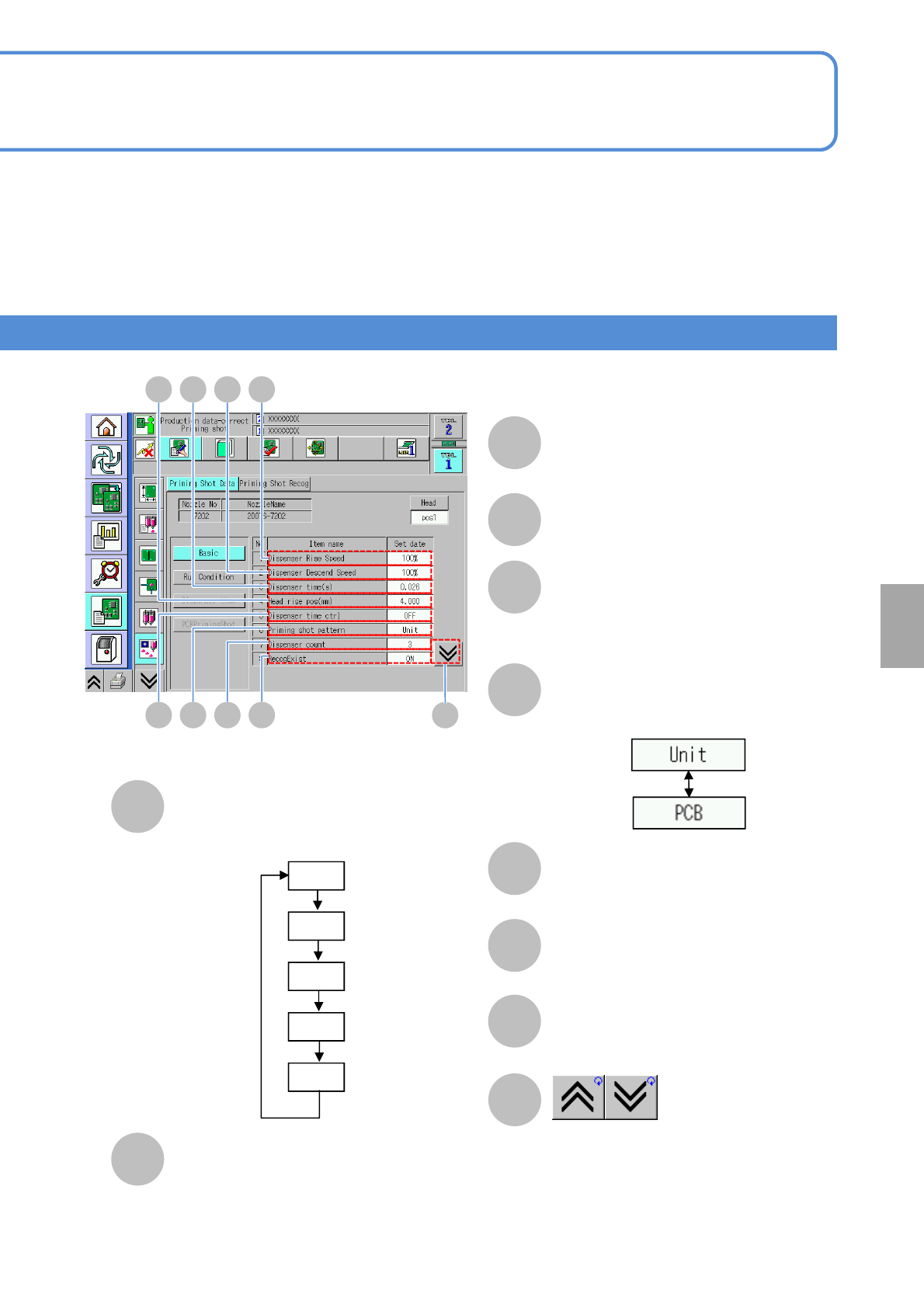

NPM-W2 EJM7DE-MB-06O-00
6-1-18-2
Dispenser Rise Speed
Scrolls up and down the list.
L
HIJK
M N O Q
Dispenser time ctr
This shows whether the dispensing
timing control function is enabled or
disabled.
Dispenser Descend Speed
Dispenser time (s)
Head rise pos (mm)
Dummy dispensing pattern
Dispenser count
RecogExist
Recognition retry count
H
I
100%
80%
60%
40%
20%
K
L
J
K
M
N
O
P
Choose the ascent velocity of a syringe.
Choose the decent velocity of a syringe.
The order for choosing the velocity is as
same as ‘Dispenser Rise Speed.’
Choose the location for dummy dispensing.
Setting
change
NPM-W2 EJM7DE-MB-06O-00
A
6-1-18-3
A
Dummy dispensing timing 1
The dummy dispensing timing at the
first nozzle selection is displayed.
NotRun:
Not execute dummy dispensing.
Run1:
Executes dummy dispensing.
Run2:
Executes dummy dispensing and
dummy dispensing recognition.
Setting the run condition
1
1
B C
B
Dummy dispensing timing 2
The dummy dispensing timing at the
second-or-later nozzle selection is
displayed.
NotRun:
Not execute dummy dispensing.
Run1:
Executes dummy dispensing.
Run2:
Executes dummy dispensing and
dummy dispensing recognition.
C
Dummy dispensing timing 3
The dummy dispensing timing at the θ –
axis rotation is displayed.
NotRun:
Not execute dummy dispensing.
Run1:
Executes dummy dispensing.
Run2:
Executes dummy dispensing and
dummy dispensing recognition.
Dummy dispensing
data edit 2 (dispensing head)
Data
editing
Operating procedure
6-1-18
NPM-W2 EJM7DE-MB-06O-00
6-1-18-4
Setting the dispensing timing
Only when the dispensing timing control is set to [ON]
A
A
Dispenser height (mm)
The distance from the nozzle tip to the
upper surface of the PCB where dispensing
is started is displayed.
1
1
B C D E
B
Dispenser Rise Speed2
The dispensing rising speed 2 is
displayed.
C
Dispenser Descend Speed2
The dispensing lowering speed 2 is
Displayed.
D
Wait time1 (s)
The waiting time at the bottom dead
point in dummy dispensing is displayed.
E
Wait time2 (s)
The waiting time after rising in dummy
dispensing is displayed.
Z
Dispenser
height
Dispensing
lowering speed
1st step
Dispensing
start
Waiting time at the
bottom dead point in
dispensing
Dispensing rising
speed 2nd step b
Waiting time
after rising
during dispensing
Dispensing
rising speed
1st step
Time
Upper surface of
the dummy
dispensing unit
a
d
e
Dispensing
lowering speed
2nd step
c
Setting
change
