NPM-W 2 EJM7DE-MB-06O-0 0 6-2-3 -7 Produc- tion data teaching PCB war page measur ement point teac h 4 (option) Operating procedure 6-2-3 T eaching procedure 3 14 Displays the PCB warpage condition 15 Press any other men…
NPM-W2 EJM7DE-MB-06O-00
6-2-3-8
Setting
change
11
13
14
12
11
+

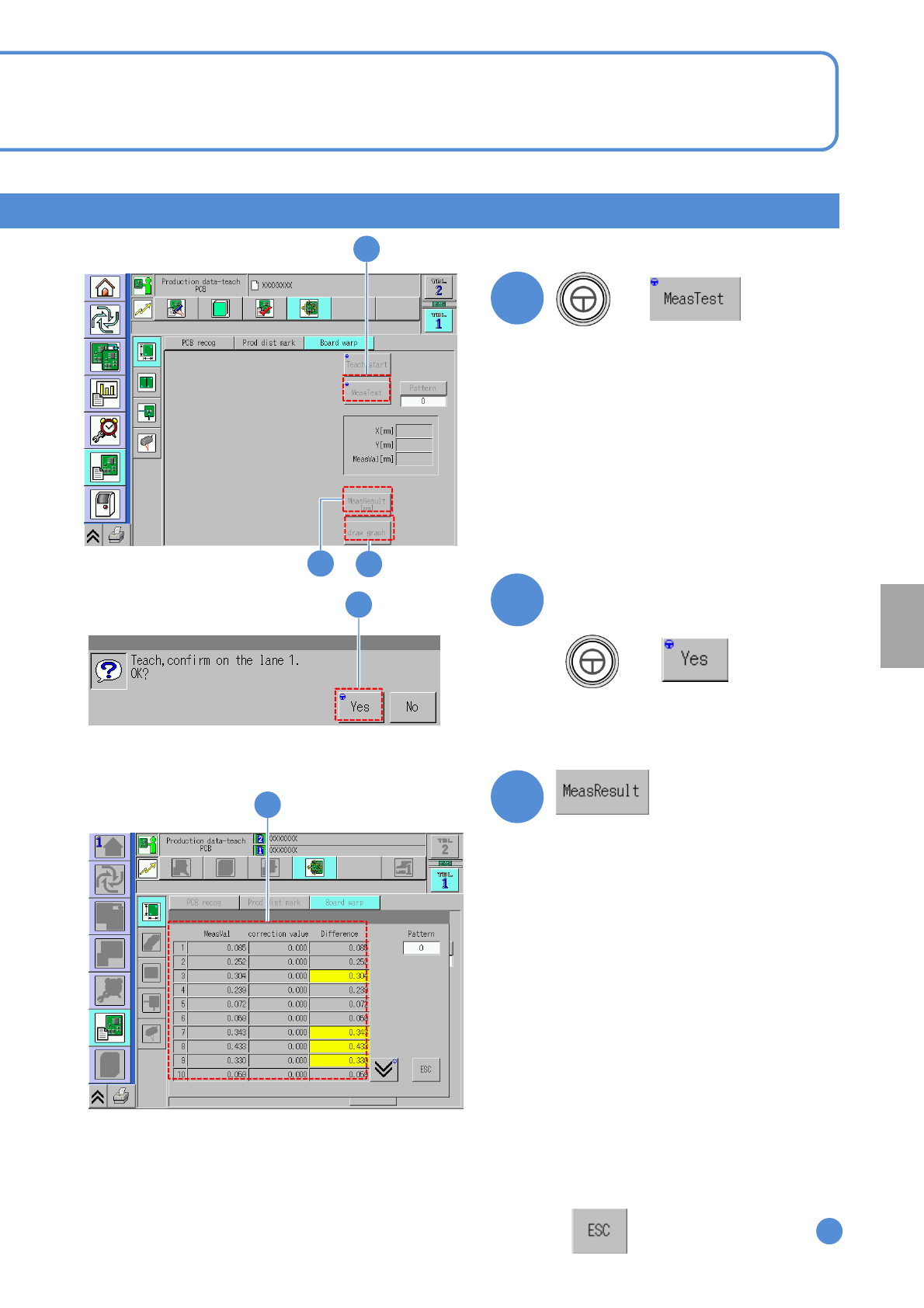

(Measure all measurement coordinates
and the result is displayed.)
Confirm the PCB exists and the
message
12
+
13
Difference: The difference between
measured value and correction value
13
Measured value: The difference between the
perfect PCB top surface and the measured
PCB top surface
(If the measured PCB top surface is
higher
than perfect one, it displayed as positive
value)
Correction value: The same coordinate value
of the correction curve calculated from
the measurement result
●If the difference exceeds 0.3 mm, it
results in error, the background in the
frame turns in yellow.
For obtaining the applicable correction
curve, review the measurement
points. Also, if the measured value or
correction value is -4.5 mm or less,
or +2 mm or over,, it results in error.
:Transitions to the screen
11
NPM-W2 EJM7DE-MB-06O-00
6-2-3-7
Produc-
tion data
teaching
PCB warpage measurement
point teach 4
(option)
Operating procedure
6-2-3
Teaching procedure 3
14

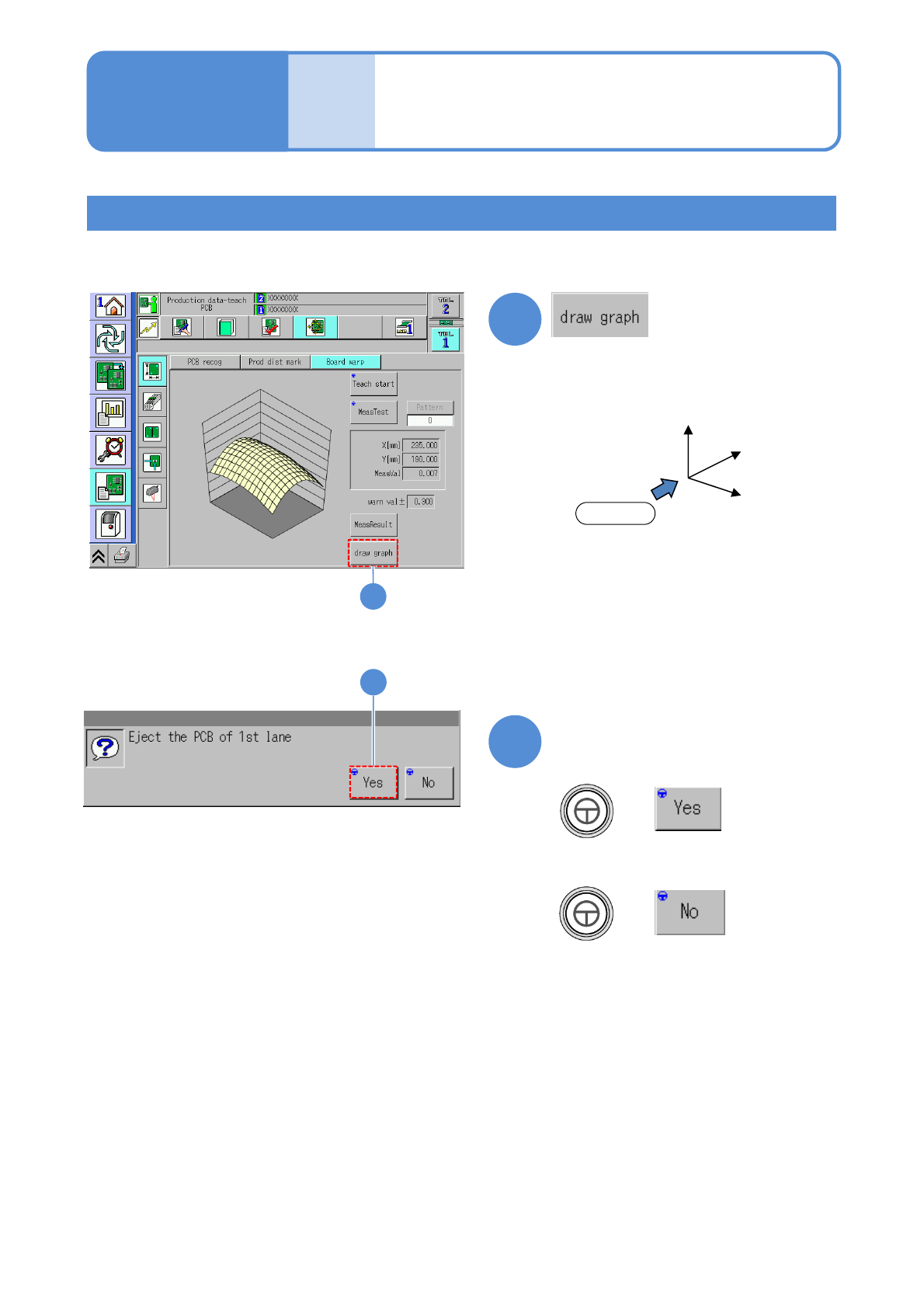

Displays the PCB warpage condition
15
Press any other menu button and
confirm the message
+
15
●Displays only when LNB is connected.
Z
Y
X
Front
The graph is as seen from the front
14
■When you do not unload the PCB
+
NPM-W2 EJM7DE-MB-06O-00
6-2-3-8
Setting
change
