NPM-W2 EJM7DE-MB-06O-00
Produc-
tion data
teaching
If component recognition errors frequently occur, one of the factors might be pickup position or angle
misalignment. To calibrate the error, this section explains component recognition teach. Or, the
component data might be wrong so please check before teaching.
■A recognition error occurs at the specific feeder
■A recognition error occurs at the specific unit
A
Error name
B
Referred TBL (table)
C
ADR (address)
Feeder address

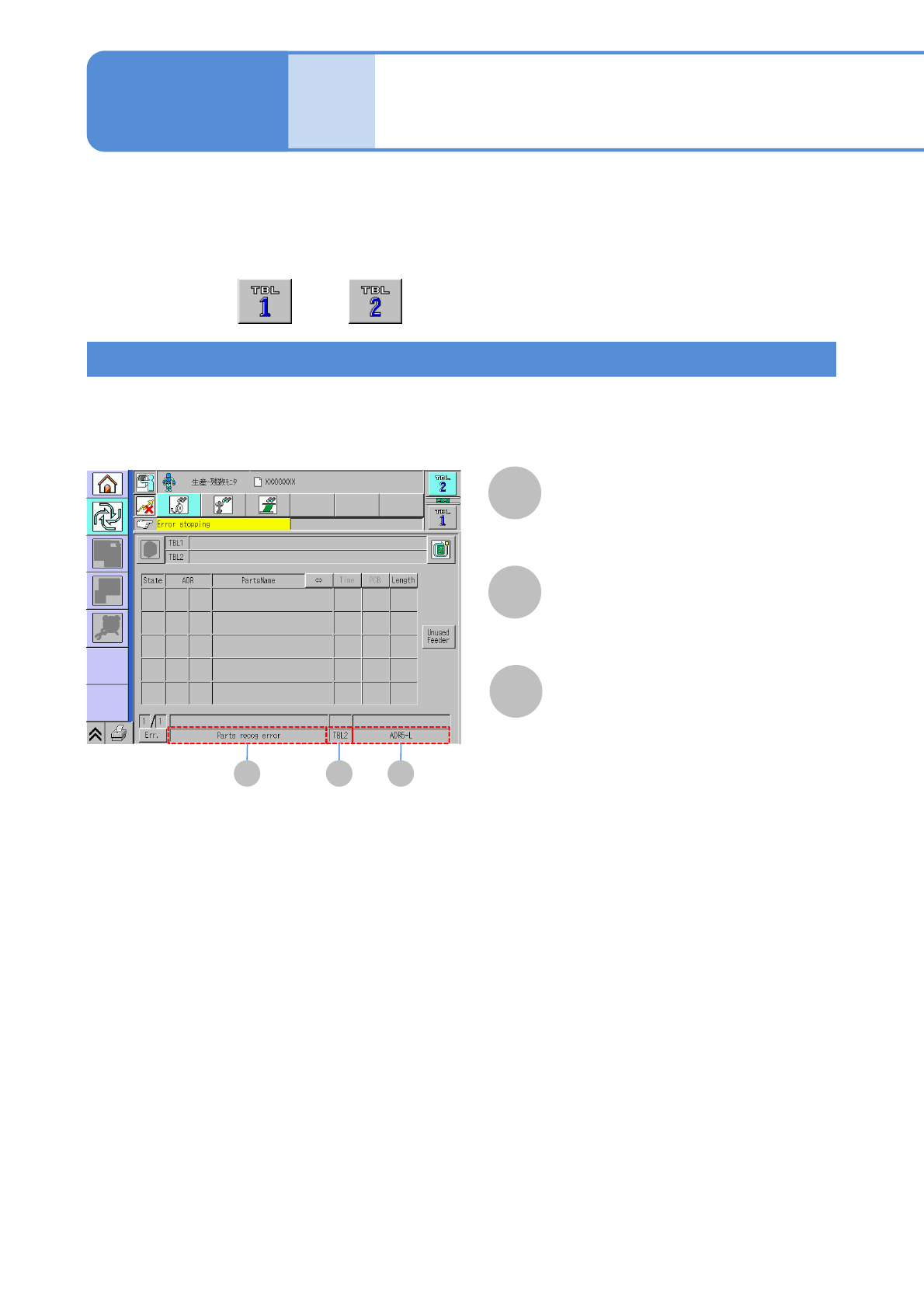

Checking recognition error
Component recognition
teach 1
The machine is single stop and error information is displayed.
Check on the error detail information screen. (→P.3-2-3)
6-2-4-1
●Perform on both and .
Operating procedure
6-2-4
A B C
NPM-W2 EJM7DE-MB-06O-00
1
●Confirm that the recognition OK rate is
about 85%.
(If the recognition error rate is 50% or
less, it results in an error (shared with
the error code)
1
●Check the component data before component recognition teach.

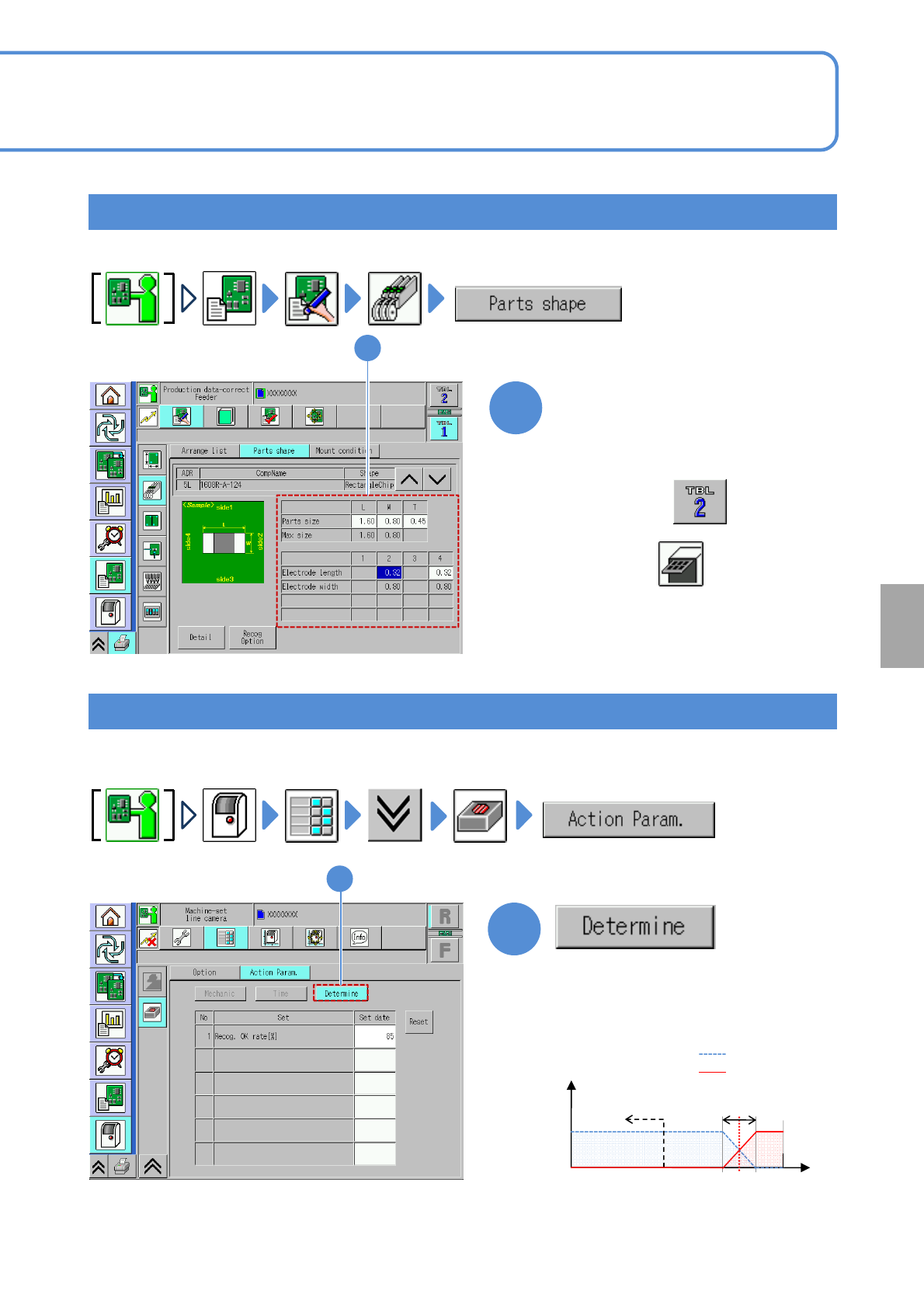

Checking the multi-recognition camera
6-2-4-2
Checking the component data
1
Check the component data
1
The tray component data is displayed.
●If it is wrong, edit it.
（→6-1-8）
●Choose table
and choose in the third layer
●Check the component data before component recognition teach.
Recognition NG
Recognition OK
*1)
Varies on a component
Judged as error
50 100
Recognition OK rate[%]
Frequency
0 85
Judgment range
*1)
Setting
change
NPM-W2 EJM7DE-MB-06O-00
Component recognition teach 1
1
1
You can enter and edit the placement
condition. (→P.6-1-9)
CA
B
CA B
You can enter and edit the component
shape data.(→P.6-1-8)
You can confirm all recognition
processes. (→ P.7-2-11)
6-2-4-3
Produc-
tion data
teaching

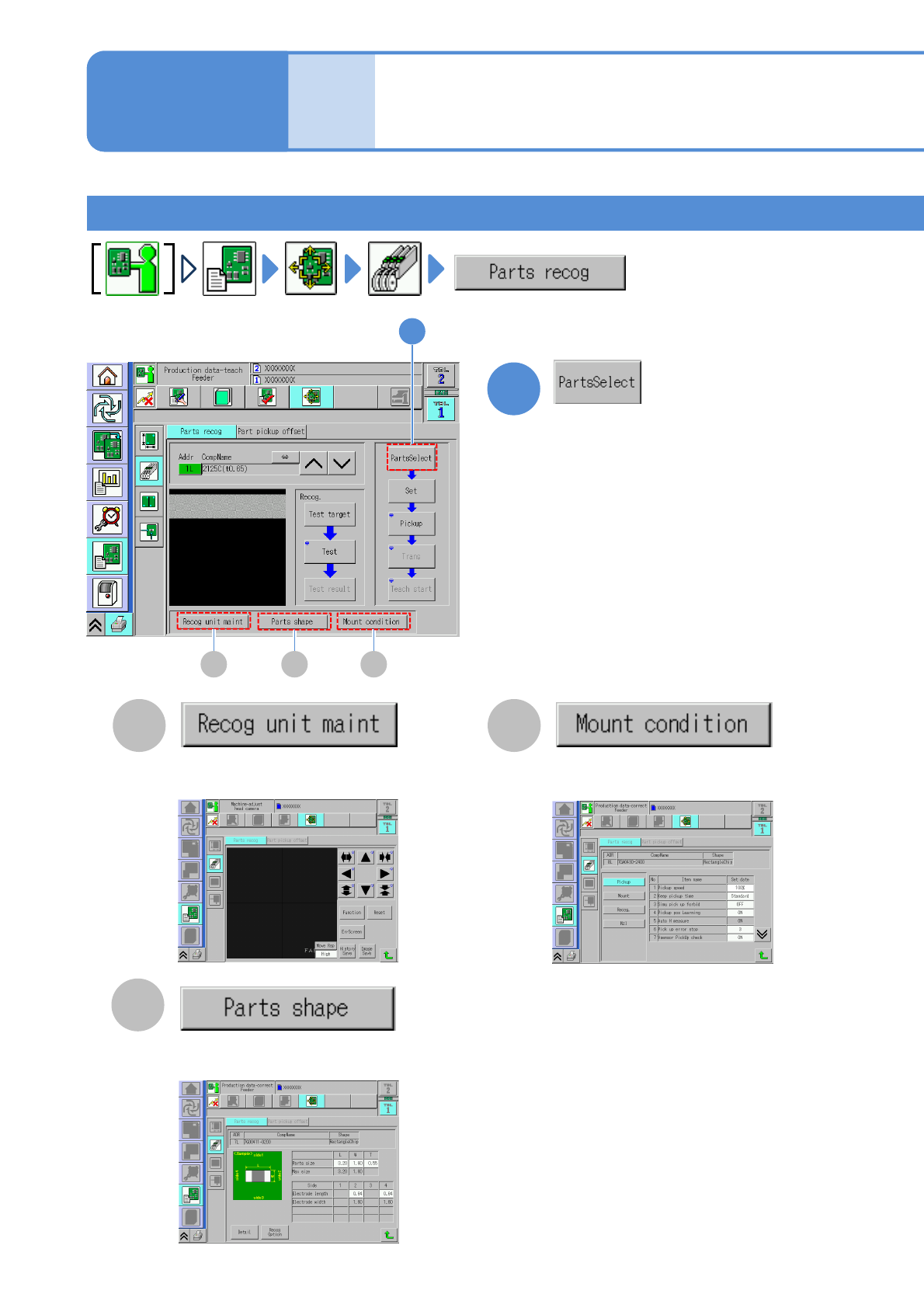

Component recognition
teach 2
The screen for choosing a component to
recognize is displayed.
Operating procedure
6-2-4
