NPM-W2 EJM7DE-MB-06O-00
11
+
6-2-4-7
Produc-
tion data
teaching
Component recognition
teach 4
Operating procedure
6-2-4
Component recognition teach 3
(An image recognized by the multi-
recognition camera is displayed)

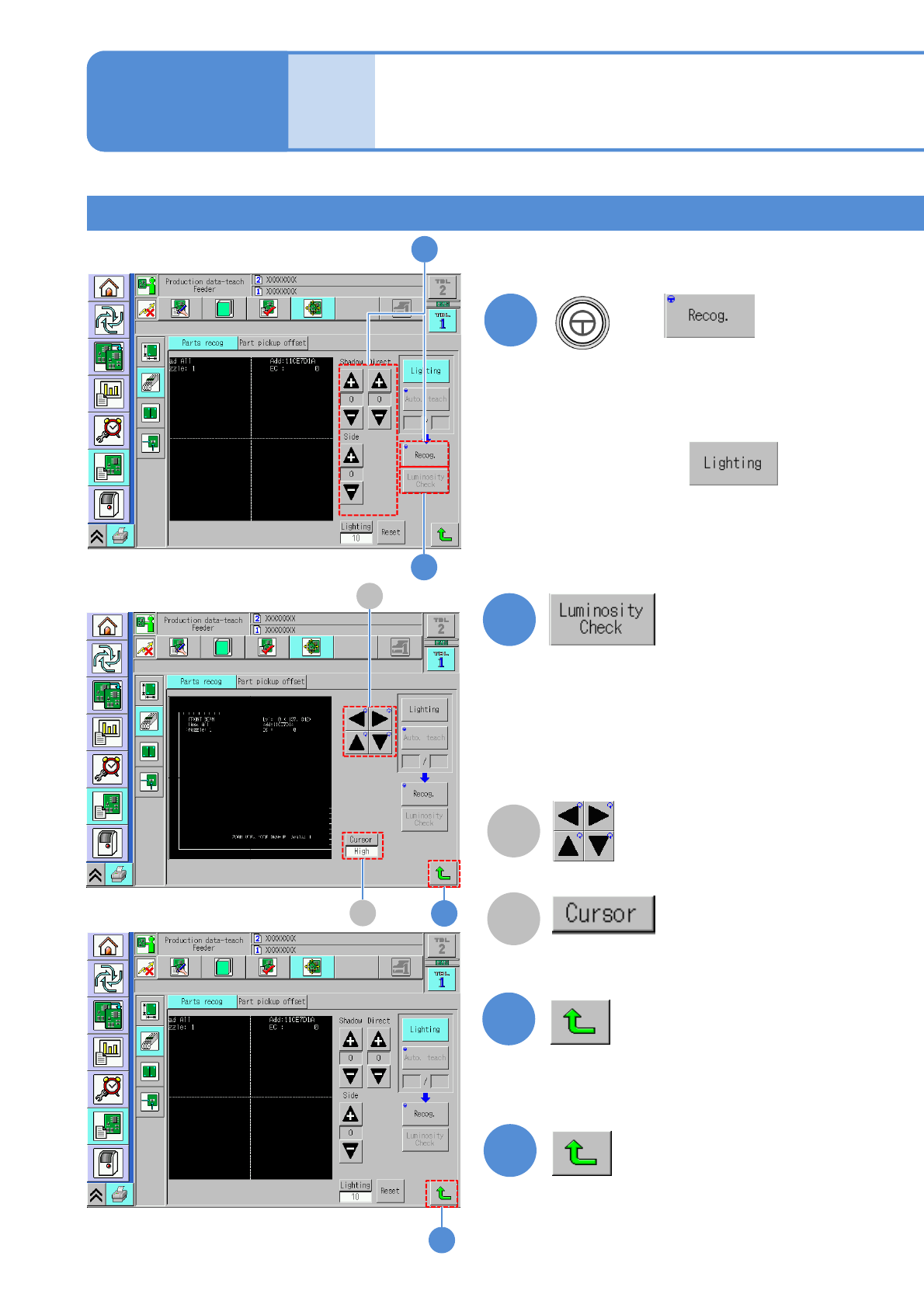

■If a component outline is invisible
After pressing ,
adjusts the brightness values using
‘Shadow’, ‘Direct’ and ‘Side’ buttons
as the component outline becomes
visible.
14
B
A
13
13
14
12
A
B
11
12
(Luminance distribution in vertical direction
at the specified position on the screen is
displayed.)
Check by luminance distribution whether
there is enough luminance contrast between
a component and the background.
Cursor movement
Change cursor moving pitch
“High” / “Low”
NPM-W2 EJM7DE-MB-06O-00
6-2-4-8
Setting
change
15
15
16
16
Confirm the message
(Recognition starts)
About the light setting of the multi-recognition camera [Type 3].
1. When the reflecting light is illuminated, the BGA ball height inspection is not performed.
2. The BGA lamp value is automatically converted inside the system. Therefore, when the BGA ball height
inspection is performed, the different value from the one set on the recognition screen may be displayed.
3.To keep the 3D inspection condition, sometimes the recognition system automatically changes the lamp
value.
ATTENTION
NPM-W2 EJM7DE-MB-06O-00
Produc-
tion data
teaching
Component recognition
teach 5
Operating procedure
6-2-4
6-2-4-9

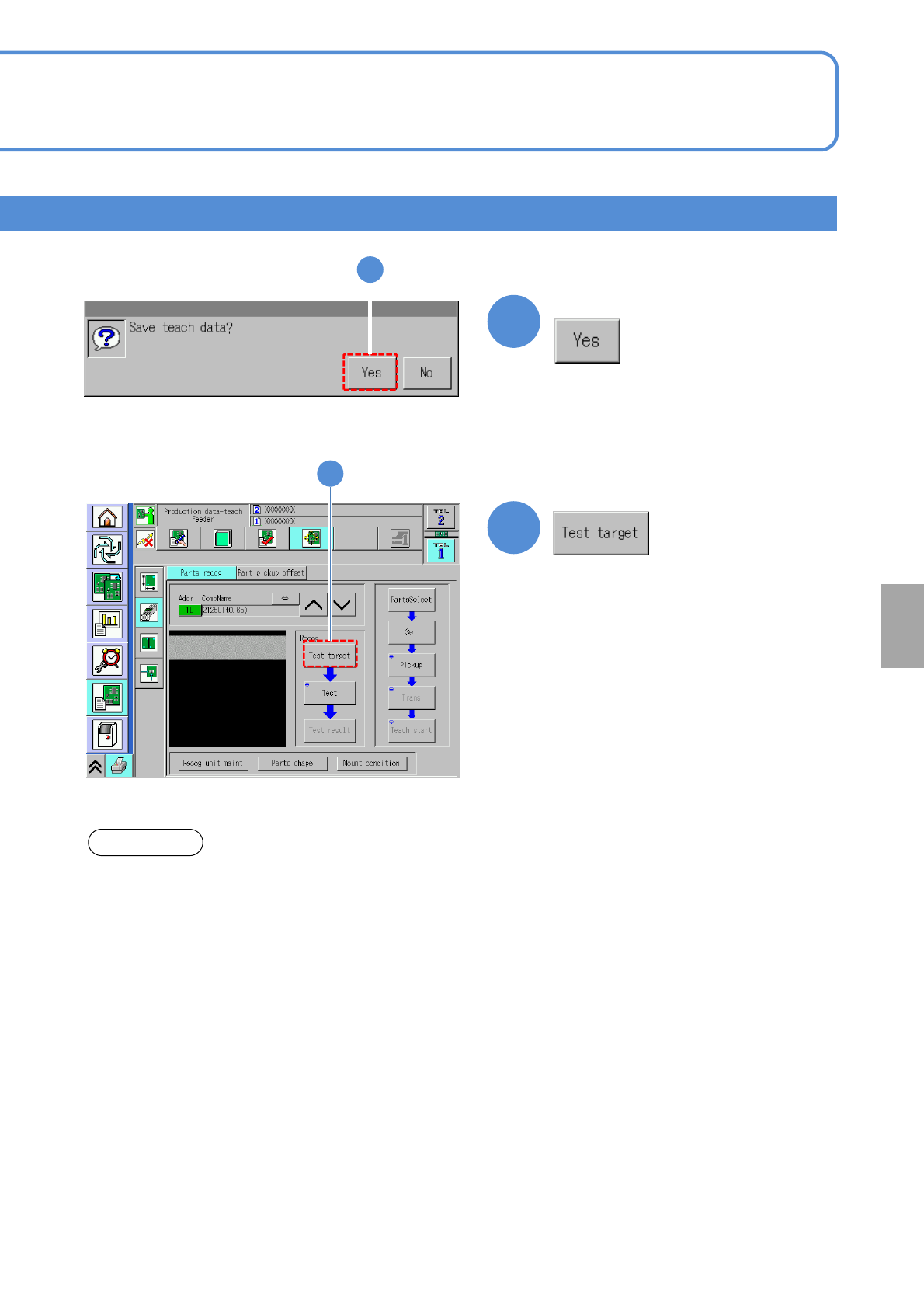

Component recognition teach 4
17
18
+
18

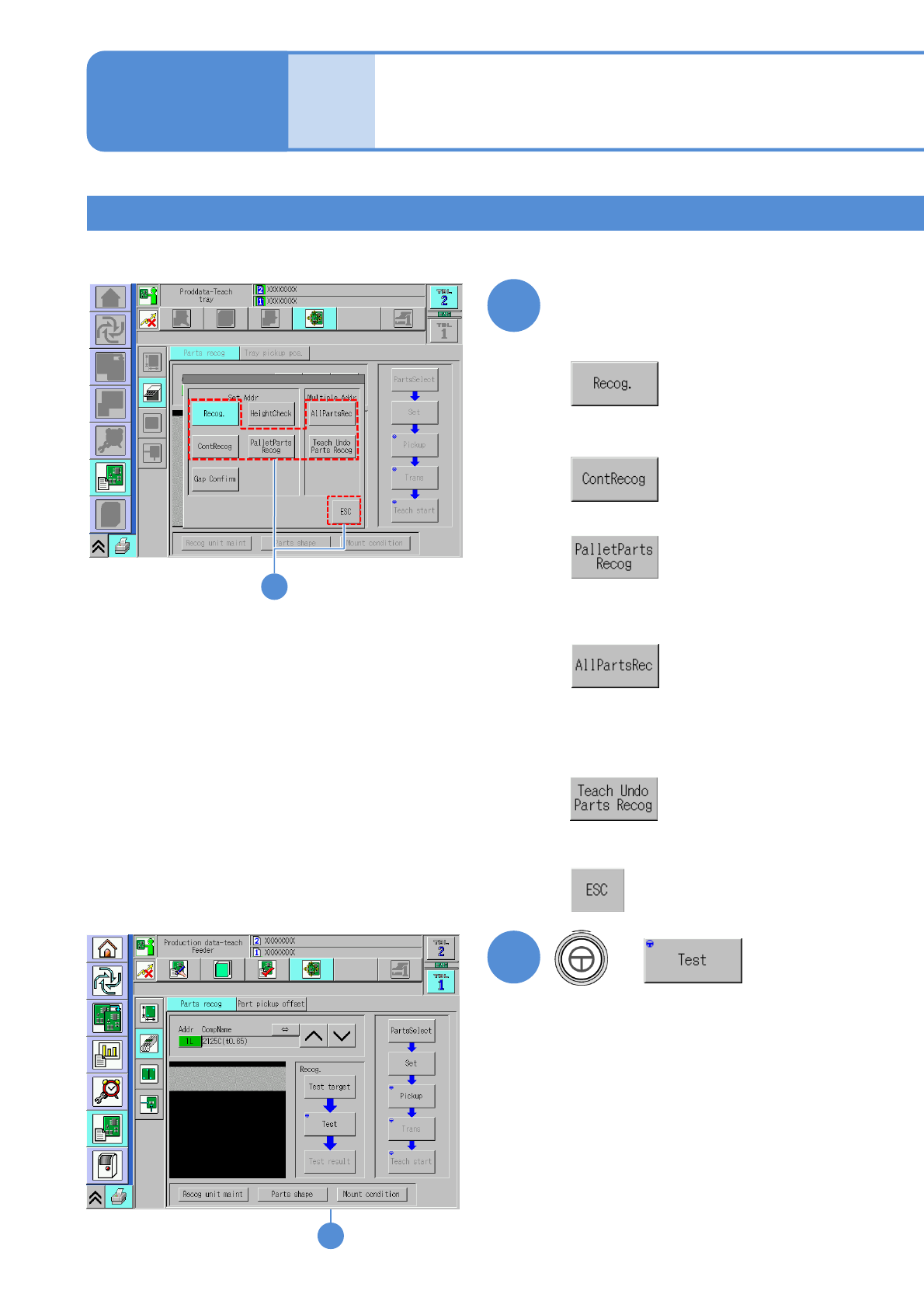

Choose a recognition method
■When a component is recognized once
■When a component is recognized ten
times
■When you do not choose the
recognition method
+
17
■When a pallet component is recognized
■When all components within the range
from the selected address to the last
address are recognized
■When all components which have not been
performed teaching within the range from the
selected address to the last address are
recognized
