NPM-W2 EJM7DE-MB-07O-00
Unit
setting
Action parameter
setting 1
7-1-2-1

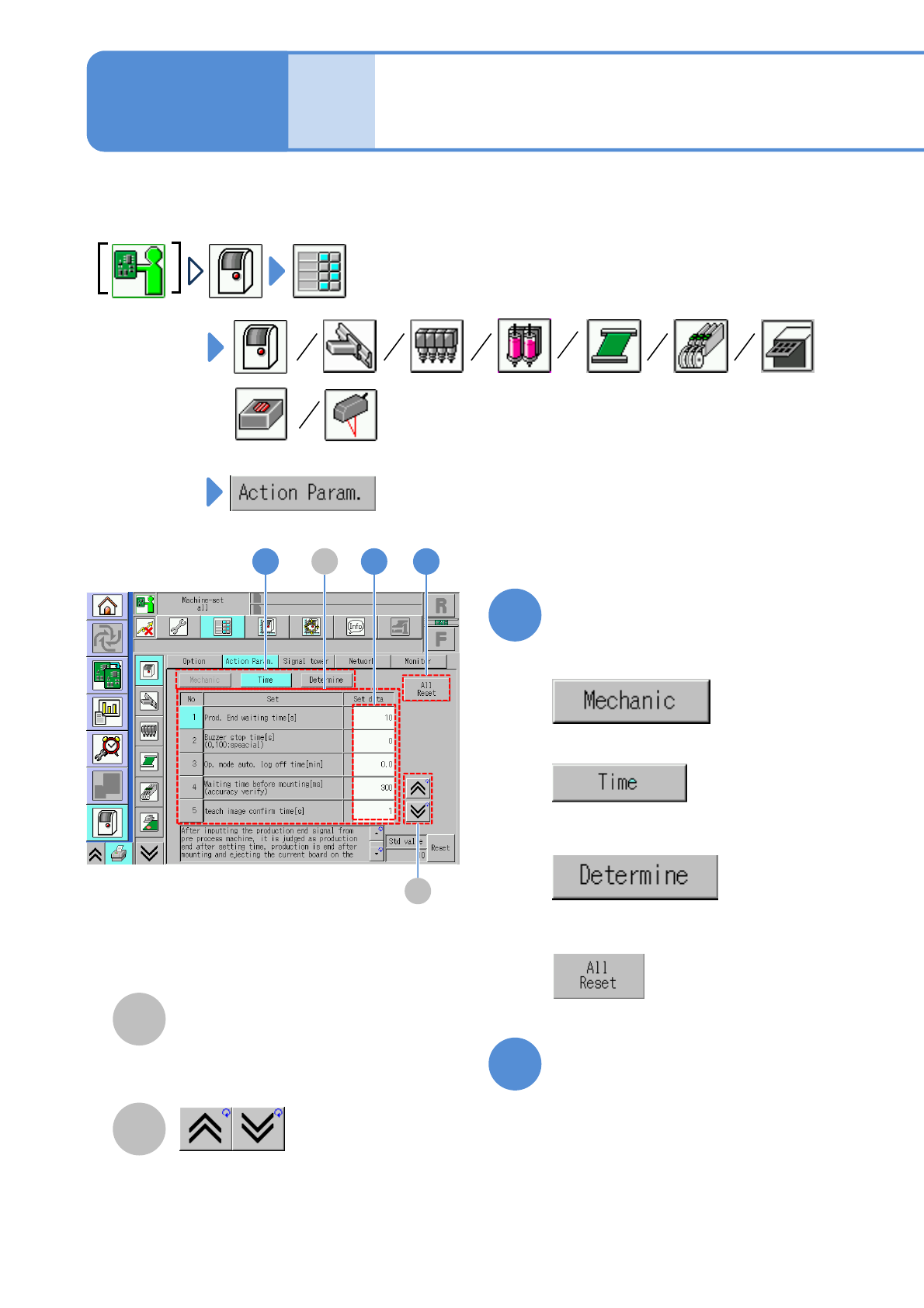

You can set the parameters for system actions.
1
2
A
B
Operating procedure
7-1-2
Choose the type of action
parameter
■To set the size
■To set the timer
■To determine
Setting status of action
parameter
The previous or next table is
displayed.
Edit data on the screen as
needed
●Touching the screen opens the input
window.
■To set to PFSC standard specifications
(Initialize)
B
11 2
A
NPM-W2 EJM7DE-MB-07O-00
7-1-2-2
Type Item Description Initial
value
Setting
range
Timer
Prod. end waiting
time [s]
When this set time elapses after the entry of the
production end signal, or when a PCB is loaded,
the machine judges it as the completion of
production. Thus, all the PCBs inside the
machine are unloaded, and auto run ends.
10 0 to 60
Buzzer stop time[s]
(0,100: special)
When this set time has elapsed, the buzzer stops
automatically.
●When ‘0’ is set, it does not stop until the buzzer stop
key is pressed. When ‘100’ is set, it does not stop.
0 0 to 100
Op. mode auto. log
off time [min]
The current mode is automatically changed to the
operator mode if no action is taken within the set
time period. (Except during production or calibration)
●When ‘0’ is set, it is not changed to the operator
mode.
0.0 0 to 60.0
Teach image
confirm
time[s]
If ‘Auto feed mode’ is used for checking an image on
the placement coordinate teach screen, each time the
specified amount of time set here has passed, the
head automatically moves to the next placement
point .
11 to 10
Determine
Max value of
operate
ratio icon[%]
The operating rate of face icons on the
indication monitor screen is defined.
The operating rate is displayed with 5 types
of face icons in case the maximum operating
rate is to 100.
(For example)If enter the 60 icon display changes as
the threshold 15/30/45/60.)
(→P. 3-2-1 ‘How to check the screen in production
when stationary’)
80 0 to 100
Accuracy judge
value Cpk
Modify the value of accuracy judge value Cpk. 1
0.01 to
3.00
Setting information 1
■Whole
System
administration
■XY unit (1/2)
Type Item Description Initial
value
Setting
range
Timer
Time-lapse change
calibration interval
time(min)[s]
Set the minimum measure interval time in
time-lapse change calibration. There is initial
value of measure interval time.
180 1 to 5400
Time-lapse change
calibration interval
time(max)[s]
Set the maximum measure interval time in
time-lapse change calibration.
5400 1 to 5400
Time-lapse change
calibration machine stop
elapsing time[s]
Do time-lapse change calibration when
machine stop time exceeds this time.
300 1 to 1200
Time-lapse change
calibration machine stop
elapsing time(reset)[s]
Do time-lapse change calibration and
initialize interval time when machine stop
time exceeds this time.
1200 1 to 1200
NPM-W2 EJM7DE-MB-07O-00
Unit
setting
Action parameter
setting 2
7-1-2-3
Setting information 2
Operating procedure
7-1-2
■Head (1/2)
Type Item Description Initial
value
Setting
range
Mechanic
Placement down
2nd speed
(Standard) [mm/s]
The lowering speed on the 2nd step when
moving down two steps for placement.
●For the 3-nozzle head only
10
3.0 to
100.0
Placement down
2nd speed (Low)
[mm/s]
The lowering speed on the 2nd step when
moving down two steps for placement under
a placement load.
●For the 3-nozzle head only
5
3.0 to
100.0
Placement 2nd up
1st speed [mm/s]
The rising speed on the 1st step when
moving up two steps for transcription/
placement of a transcription
component.
●For the 3-nozzle head only
5
3.0 to
100.0
Determine
Bad nozzle error
rate [%]
This is a criterion used to judge nozzles
good or bad.
The nozzle whose error rate has reached
this value or more is determined to be a bad
nozzle, which will not be used in automatic
operation.
20
0.1 to
100.0
Bad head error
rate
[%]
This is a criterion used to judge heads good
or bad.
The head whose error rate has reached this
value or more is determined to be a bad
head, which will not be used in automatic
operation.
●For 8/3-nozzle heads only
20
1.0 to
100.0
Nozzle clean
quantity [piece]
Set the frequency with which the nozzles
are cleaned during automatic operation.
When the production count reaches this
value, a forced blow cleans the nozzles of
heads.
0 0 to 200
■XY unit (2/2)
Type Item Description Initial
value
Setting
range
Determine
Time-lapse change
calibration interval
threshold[mm]
If the amount of deviation relative to the previous
measurement result exceeds the setting value,
shorten the interval time. The interval time is
lengthened if it does not exceed the setting value.
1
0.01 to
1.50
Time-lapse change
calibration error
threshold[mm]
If the amount of deviation relative to the previous
measurement result exceeds the setting value,
the machine comes to a single error stop.
1.5
0.01 to
1.50
