NPM-W 2 EJM7DE-MB-07 O-00 7-2-1 -2 System administration
NPM-W2 EJM7DE-MB-07O-00
Unit
adjust-
ment
All-axes origin return
1
Returns all axes to their origins
+
1
A
A

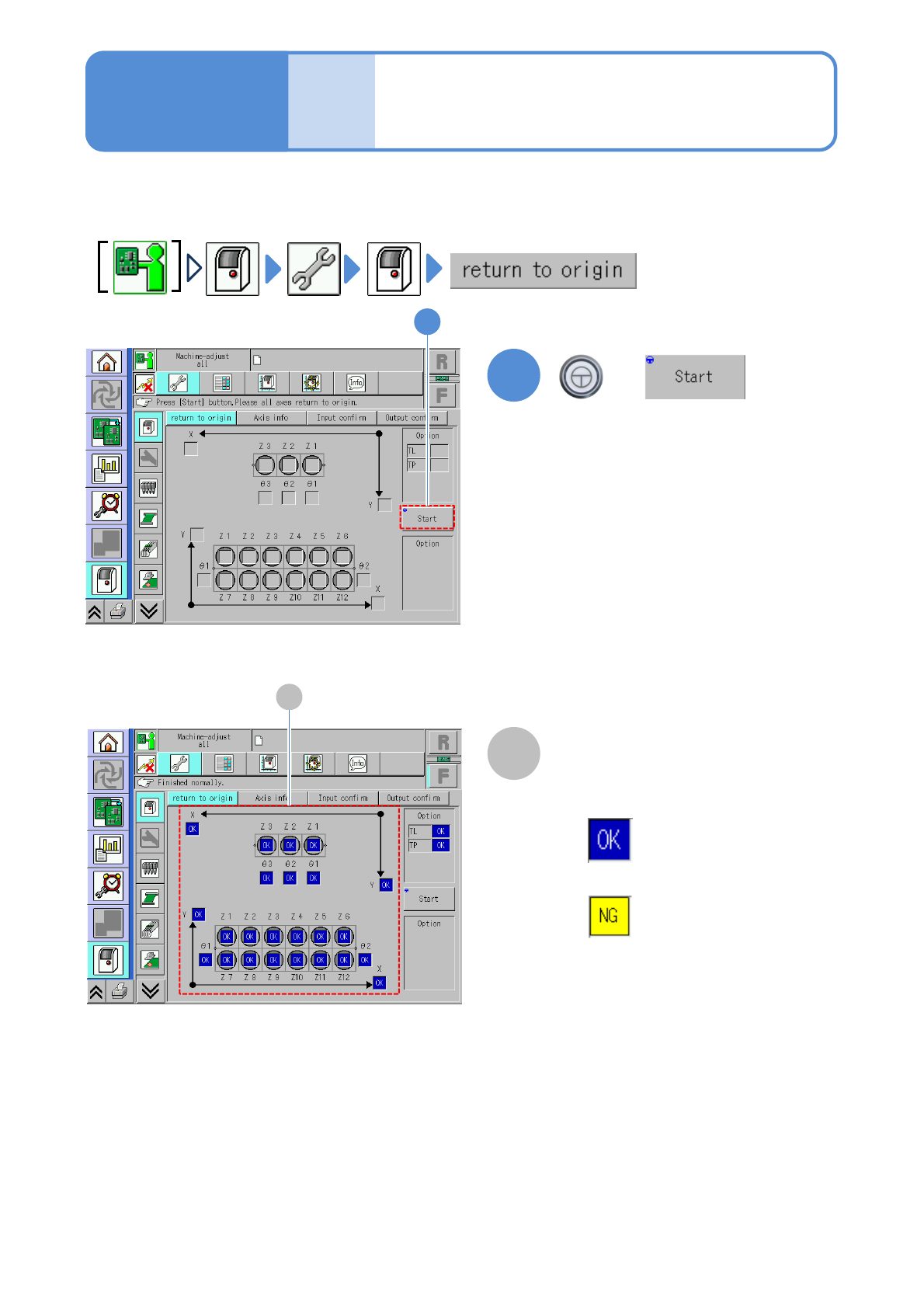

Operating procedure
7-2-1
(The origin return process starts and the
result is displayed)
Result of origin return
■Axes succeeded in the origin return
■Axes failed in the origin return
●Please consult us.
7-2-1-1
NPM-W2 EJM7DE-MB-07O-00
7-2-1-2
System
administration
NPM-W2 EJM7DE-MB-07O-00
Unit
adjust-
ment
Axis information check
7-2-2-1
B
C
You can check the current positions and status of all the axes controlled by the machine.
●Perform on both and .
B
D
C
D
2
1
2
A
1
A
Operating procedure
7-2-2
Axis status code/error
code
Choose a unit.
RX
Encoder rate value of the multi-
recognition camera is displayed.
The previous or next table is
displayed.
(Detail information on the status code
or error code is displayed)
●Status code: Axis information is
expressed in the unit of Bit.
●Error code: Error information is
expressed in the unit of Bit.
Choose an axis
The screen of axis information is displayed.
・Position
・Status Code
・Err Code
