NPM-W2 EJM7DE-MB-07O-00
7-3-1
Machine
parame-
ter
XY position offset /XY
reference mark check
A
B
設備に設置されているフィーダーメモリー情報表示します
XY origin offset
You can check the origin offset values (calibration result) of X-/Y-axes.
XY standard mark
You can check the offset value (calibration result) to move the head to the XY standard mark position.
B
A
A
A
Operating procedure
7-3-1
Origin offset X[mm]/Y[mm]
The criterion for X-/Y-axes actions and
the origin offset value of each axis.
Install X[mm]/Y[mm]/Z[mm]
The criterion for X-/Y-axes actions that
is used in installing the head, and the
origin offset value of each axis.
Standard mark coordinates
X[mm]/Y[mm]
XY coordinate offset of the standard
mark of the transfer conveyor.
For dual conveyor
(Select a lane in advance)
NPM-W2 EJM7DE-MB-07O-00
7-3-2
Machine
parame-
ter
Placement position
offset check
Operating procedure
7-3-2

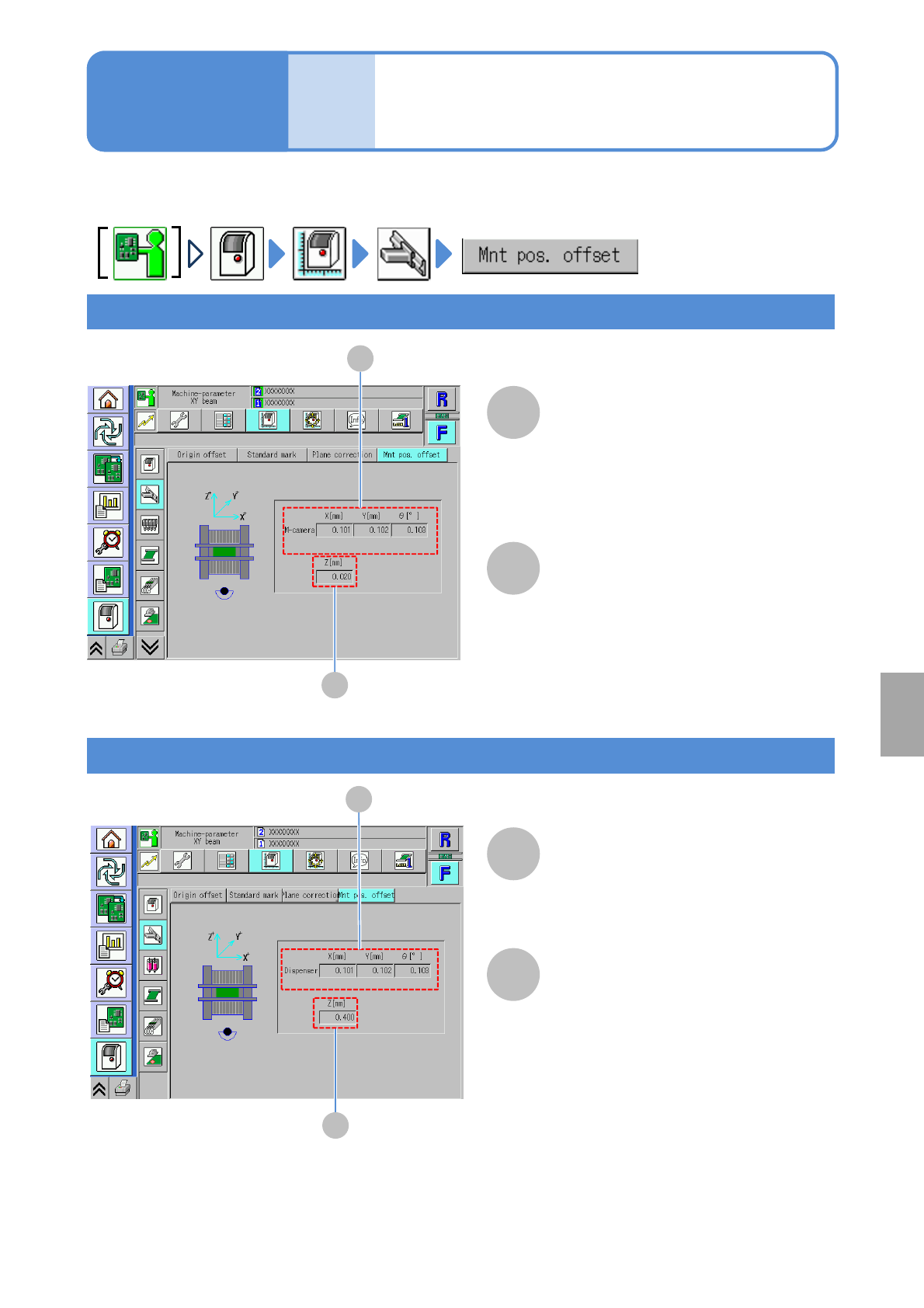

You can check placement position offset.
Multi-recognition camera
X[mm]/Y[mm]/ θ[°]
Displays X-, Y- and θ-coordinates
corresponding to the multi-recognition
camera on the placement position offset.
A
B
B
A
Z [mm]
Displays Z-coordinate on the
placement position offset.
Placement head
A
B
B
A
Dispensing head
Dispensing
X[mm]/Y[mm]/ θ[°]
Displays X-, Y- and θ-coordinates
corresponding to the placement position
offset (dispensing).
Z [mm]
Displays the Z-coordinate on the
placement position offset (dispensing).
System
administration
NPM-W2 EJM7DE-MB-07O-00
Display area of is displayed in light
blue color.
The front/rear/right/left of the display
areas of and are displayed.

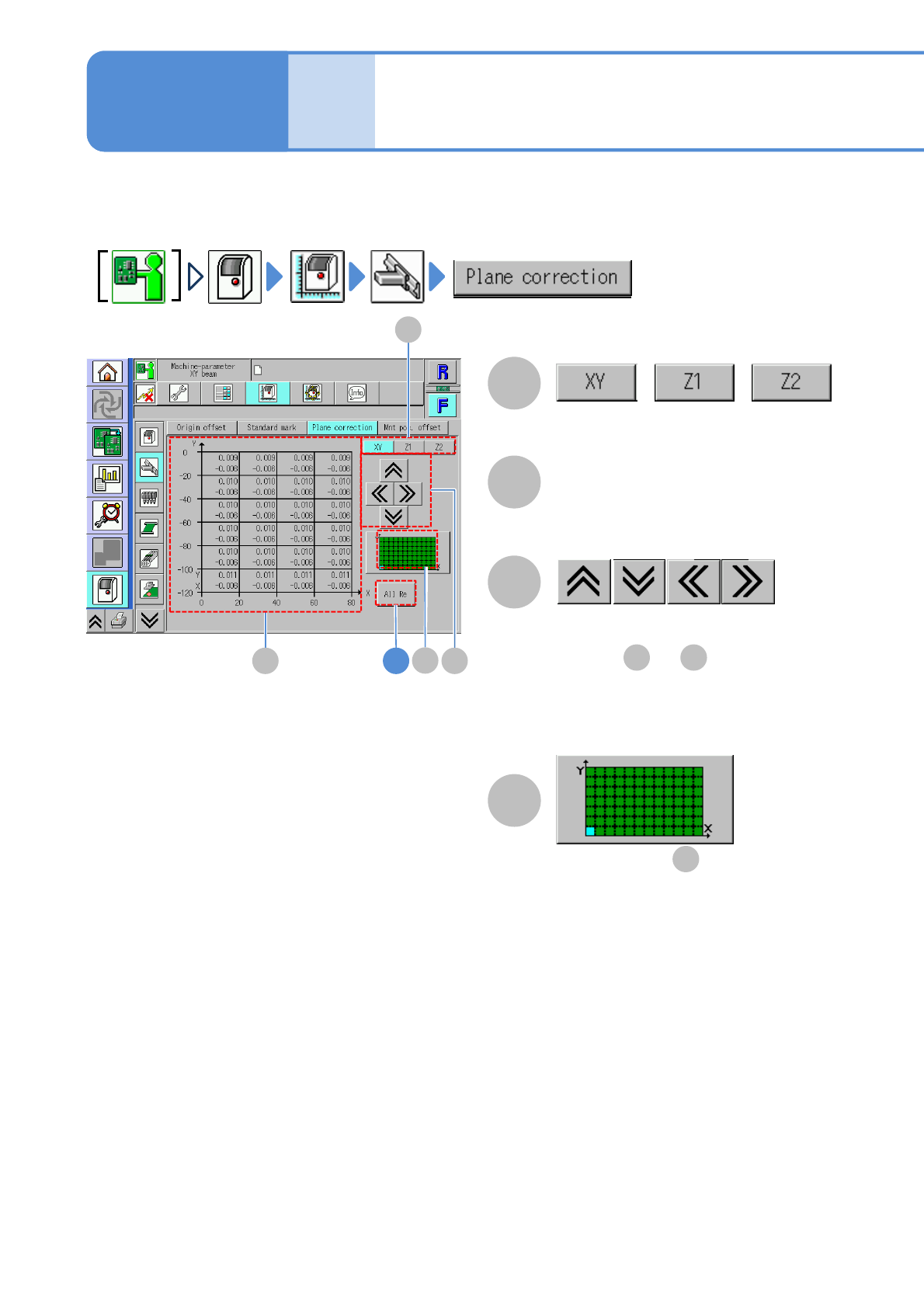

You can check the placement surface offset (calibration result) used in correcting PCB recognition and
