NPM-W 2 EJM7DE-MB-07 O-00 Machine parame- ter Operating procedure 7-3-1 1 7-3-1 1 A A B C B C Shading offset Corrects brightness of the inspection area to be even. White balance Registers the adjusted color tone of the i…
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-10
7-3-10
A
A

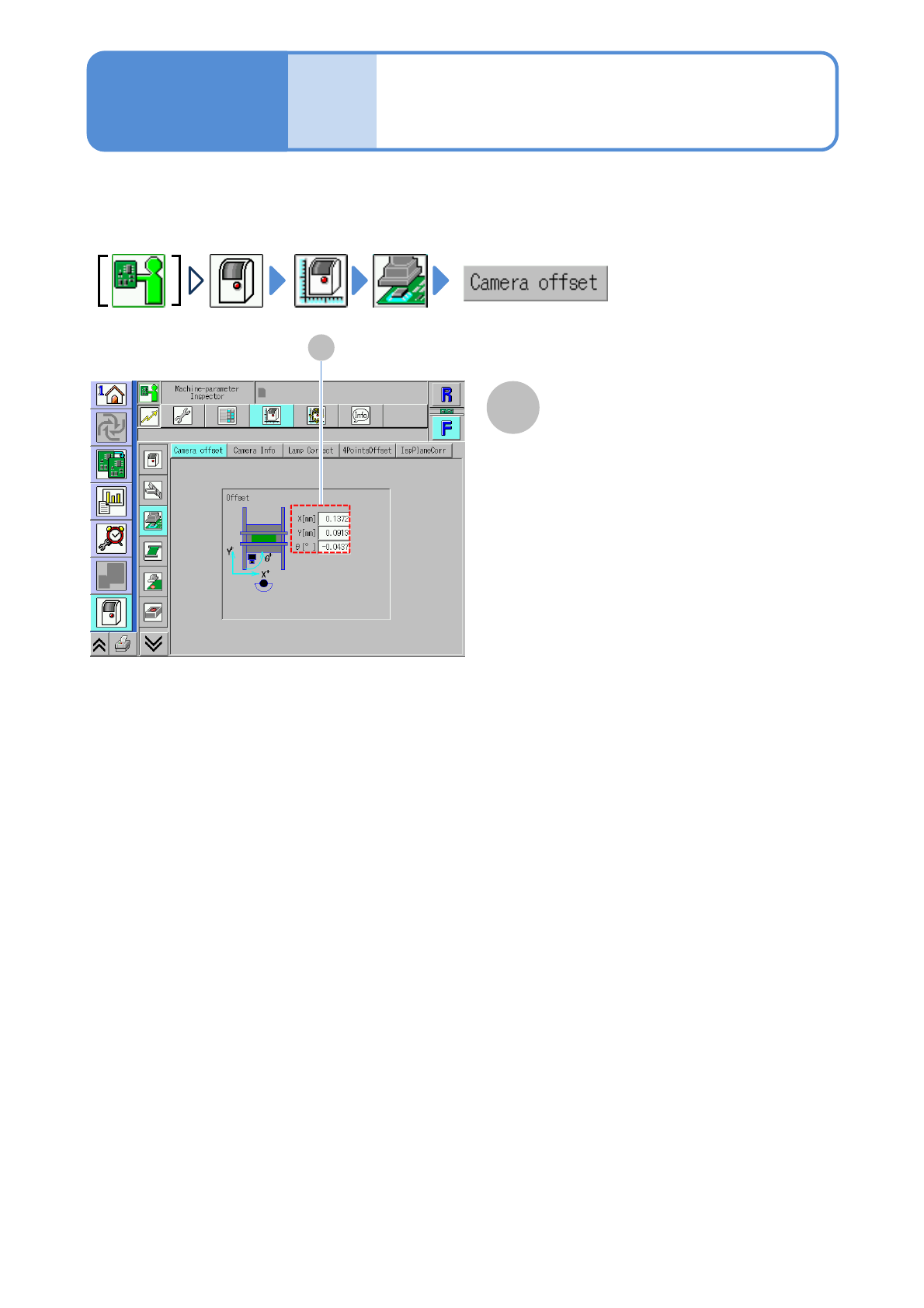

Camera offset check
(inspection head)
You can check the camera offset value (calibration result) in X and Y-axis by the inspection head.
Offset
Camera offset values in X, Y and θ
directions.
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-11
7-3-11
A
A
B C
B
C
Shading offset
Corrects brightness of the inspection
area to be even.
White balance
Registers the adjusted color tone of the
inspection area.

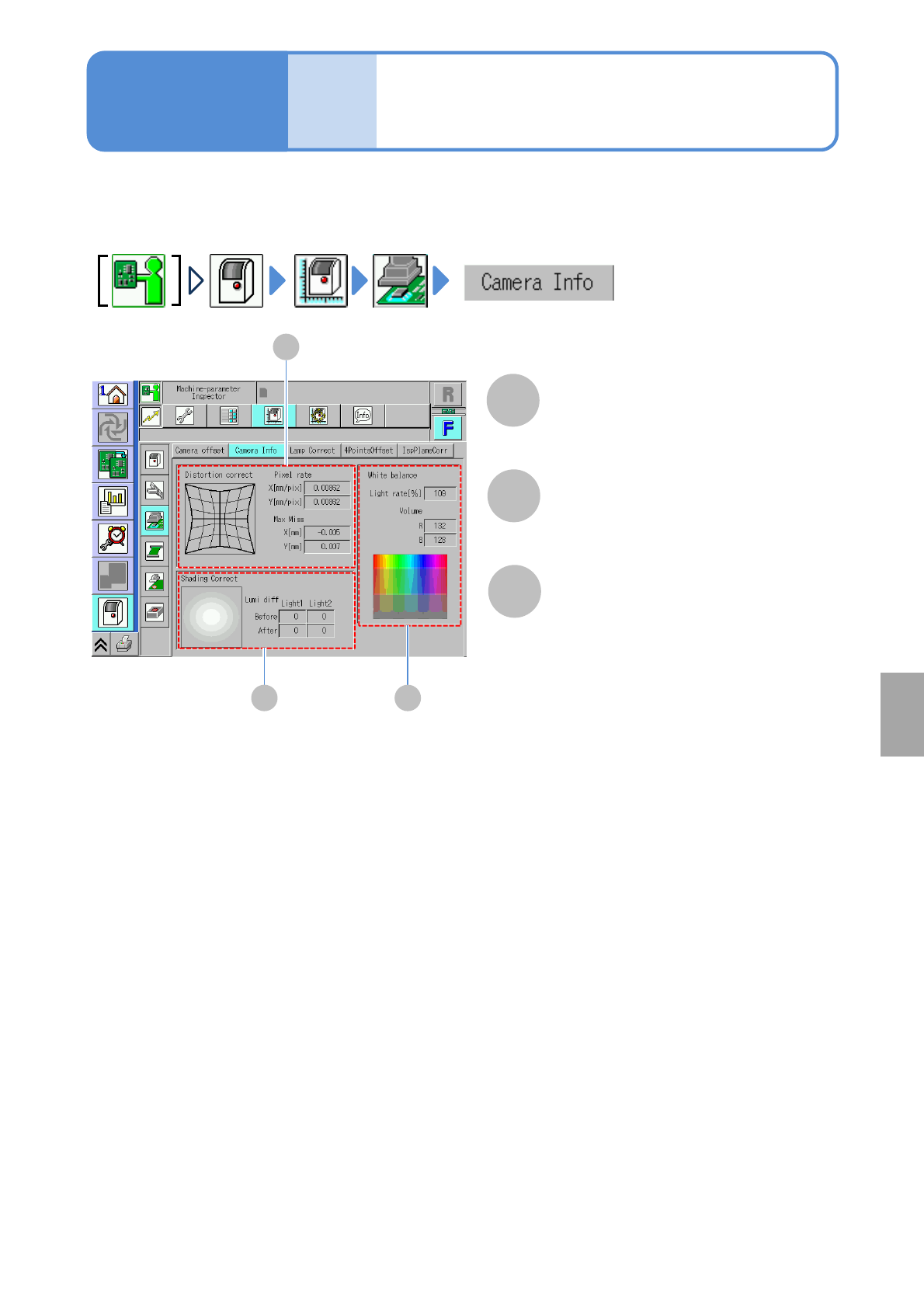

Head camera
information check
(inspection head)
You can check the offset value (calibration result) of the inspection head camera unit.
Distortion offset
Corrects light distorted inner or outer
side through a lens
System
administration
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-12
7-3-12
A
B
C
A
B C

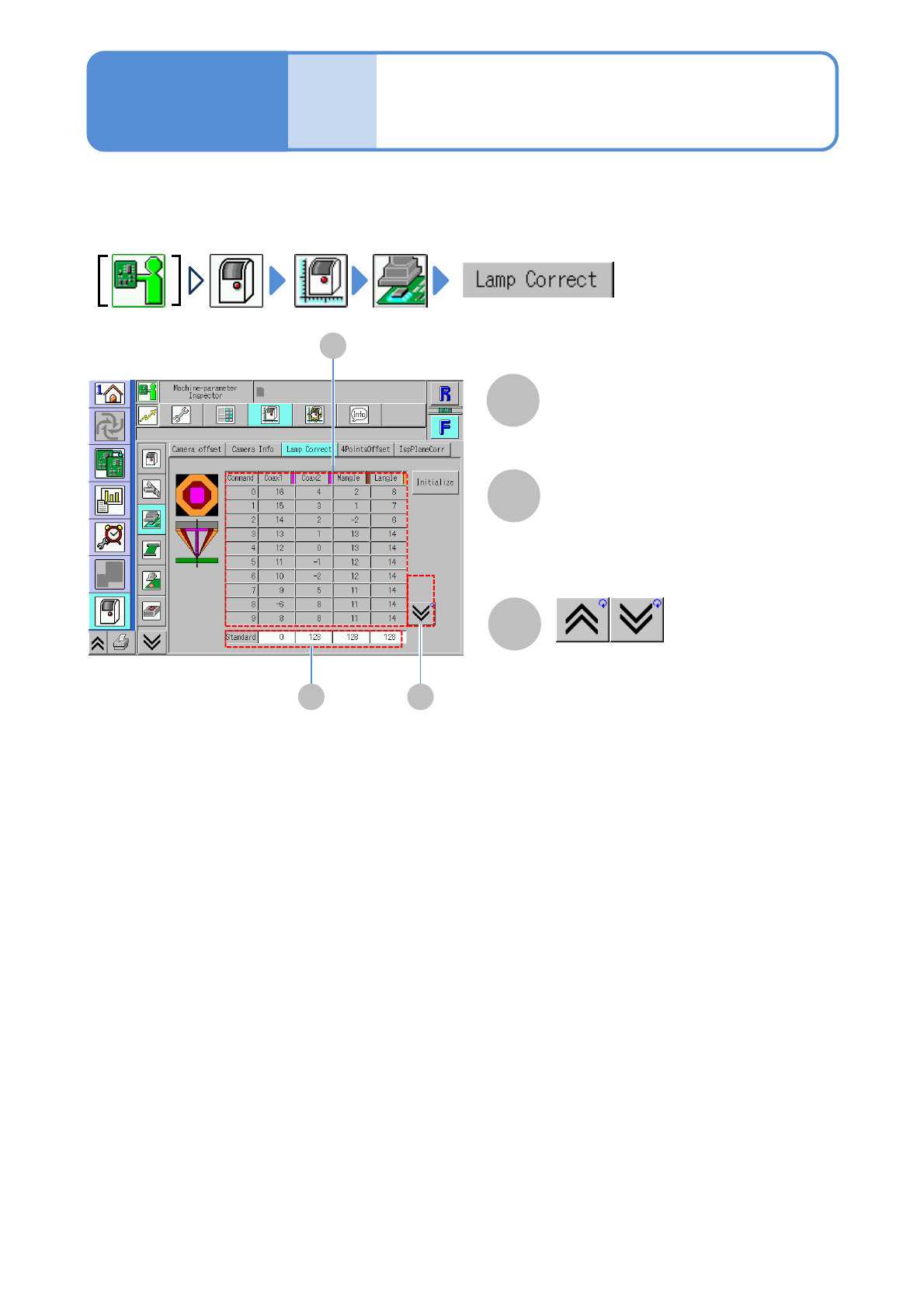

Lamp value offset
check (inspection head)
You can check the offset value (calibration result) of the inspection head light unit.
Lamp offset value
Displays a previous or next table.
Standard light value
■For component inspection
0 / 128 /128 /128
■For solder inspection
30 / 0 / 0 / 200
