NPM-W 2 EJM7DE-MB-07 O-00 Machine parame- ter Operating procedure 7-3-14 7-3-14 A C B Inspection plane of fset ch e ck (inspection head) You can check the offset value (calibration result) of the bond ing side used when …
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-13
7-3-13
A
A
Four points offset
check (inspection head)
You can check the offset value (calibration result) when the inspection head moves to the XY standard mark
position.
●For dual conveyor, choose a lane 1 in advance. (For how to switch the lane(→P.2-2-1-9 ‘Lane switch button’))
Standard mark coordinates
X[mm]/Y[mm]
Offset values of the inspection head on
XY coordinates of a transport conveyor
standard mark.
System
administration
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-14
7-3-14
A
C
B
Inspection plane offset
check (inspection head)
You can check the offset value (calibration result) of the bonding side used when the inspection head
corrects the PCB recognition position and placement position.
A
Offset
Offset values of the bonding side
●Displays every 20 mm interval.
B
C
:Vertical direction
:Horizontal direction
●Displays area and .
A C
Area display
●Displays area in blue color.
A
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Operating procedure
7-3-15

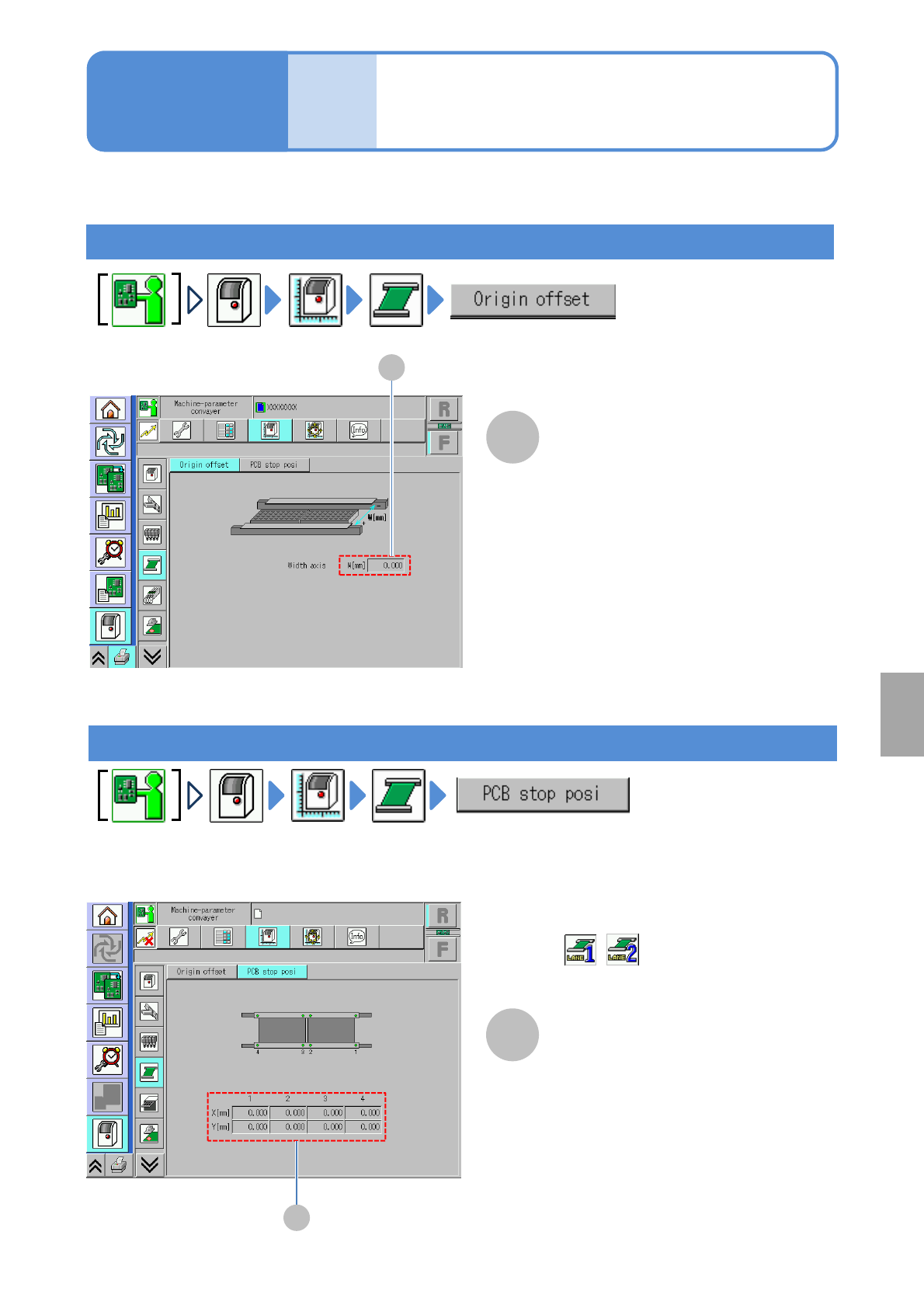

Conveyor origin offset
check
A
Checking origin offset
You can check conveyor origin offset (calibration result).
●For dual lane mode, you need to choose a lane in advance.
Width axis
Conveyor width offset.
7-3-15
A
System
administration
Checking PCB stop position offset
A
A
PCB stop position offset
X[mm]/Y[mm]
■For dual conveyor
(Select a lane in advance)
