NPM-W2 EJM7DE-MB-07O-00
7-3-16-2
System
administration
NPM-W2 EJM7DE-MB-07O-00
Machine
parame-
ter
Multi-recognition
camera check 1
設備に設置されているフィーダーのメモリー情報を表示します。

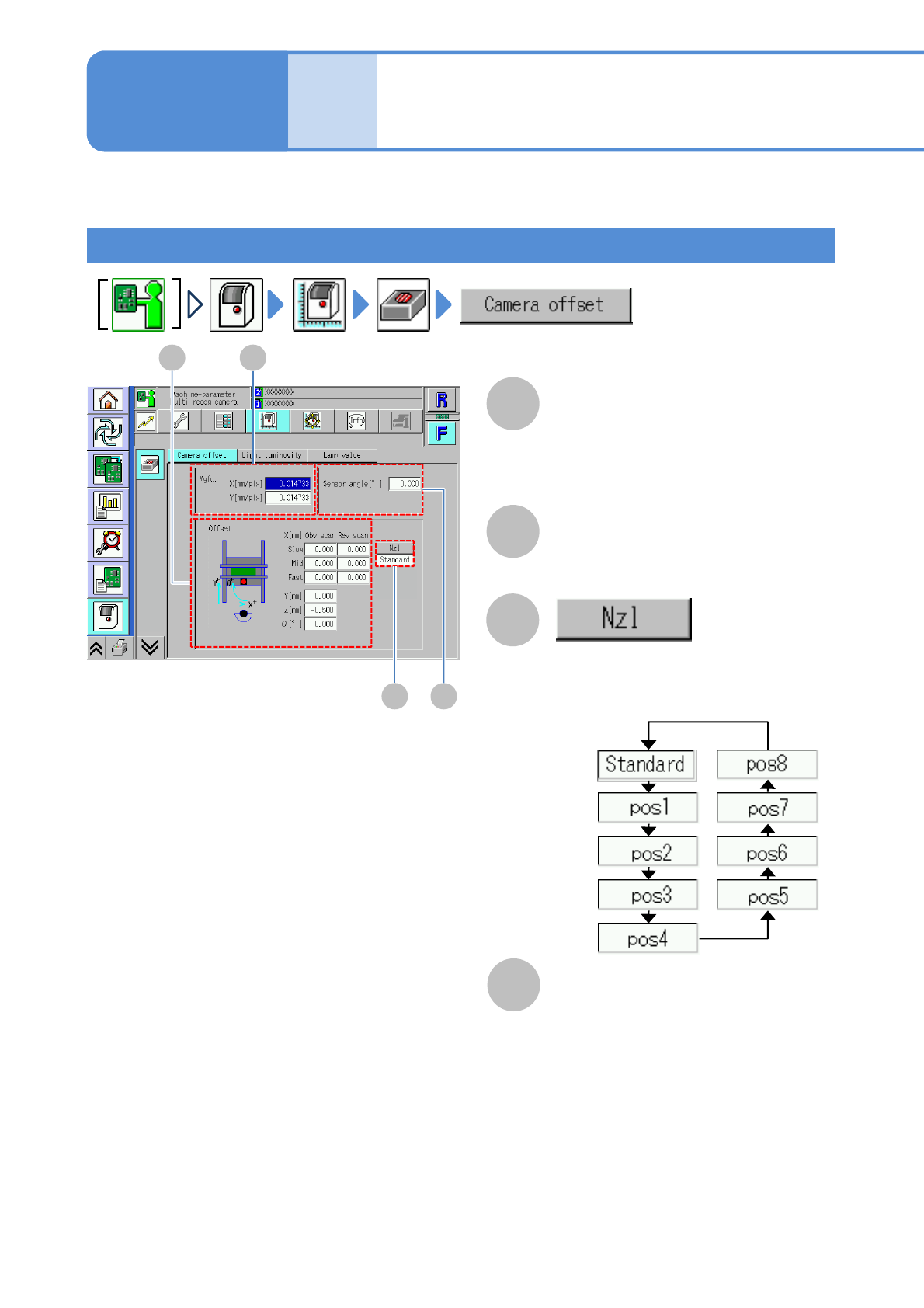

Checking camera magnification/offset
You can check the offset values (calibration result) of the Magnification/Light luminosity/Lamp value of the
multi-recognition recognition camera.
C
A
B
Operating procedure
7-3-17
Mgfc.
Magnification of the multi-recognition
camera set to the recognition device.
●Used in calculating component
recognition.
Offset
Offset of position that moves when
recognizing with the recognition camera.
Choose a nozzle corresponding to the
values that you want to display in [Offset].
(Only for the 8-nozzle head)
7-3-17-1
B
C
A
D
Offset of tilt of the multi-recognition
camera against the X-axis.
D
Sensor angle [ °]
NPM-W2 EJM7DE-MB-07O-00

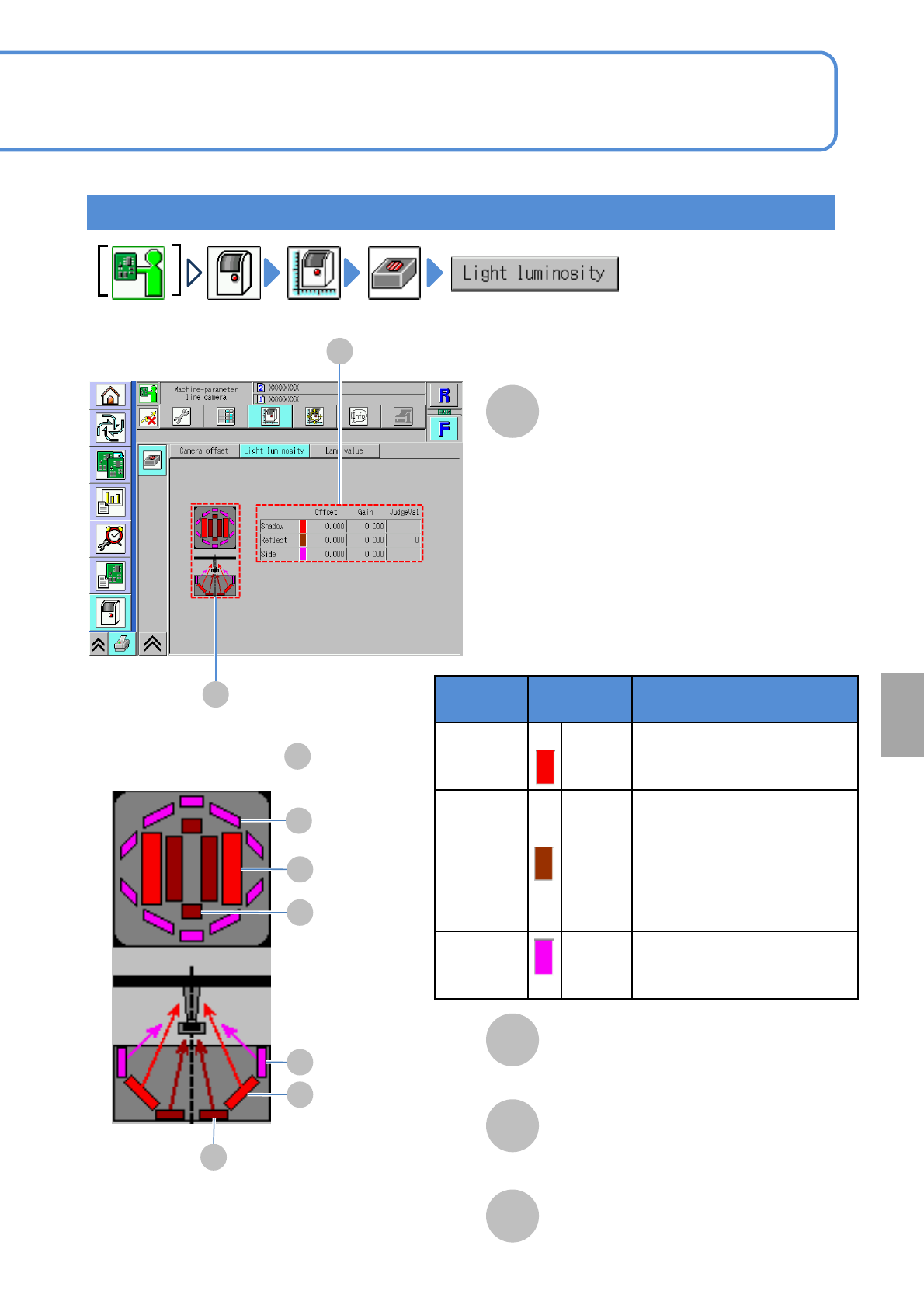

Checking light luminosity
A
A
Light type Color Description
Transpar-
ency
Red
Transparency lighting
・Luminosity offset value
・Luminosity gain value
Reflection Brown
Reflection lighting
・Luminosity offset value
・Luminosity gain value
●The reflection evaluation
value is used to evaluate
deterioration of light
luminosity
Side Peach
Side lighting
・Luminosity offset value
・Luminosity gain value
B
D
C
D
B
D
C
Enlarged drawing of
E
E
B
C
Light luminosity offset and
luminosity gain value
Side lighting
Transparency lighting
Reflection lighting
7-3-17-2
