NPM-W2 EJM7DE-MB-09O-00
9-1-6-13
Specifi-
cation
Nozzle specifications 7
Dispensing nozzle (option) 3
Operating procedure
9-1-6

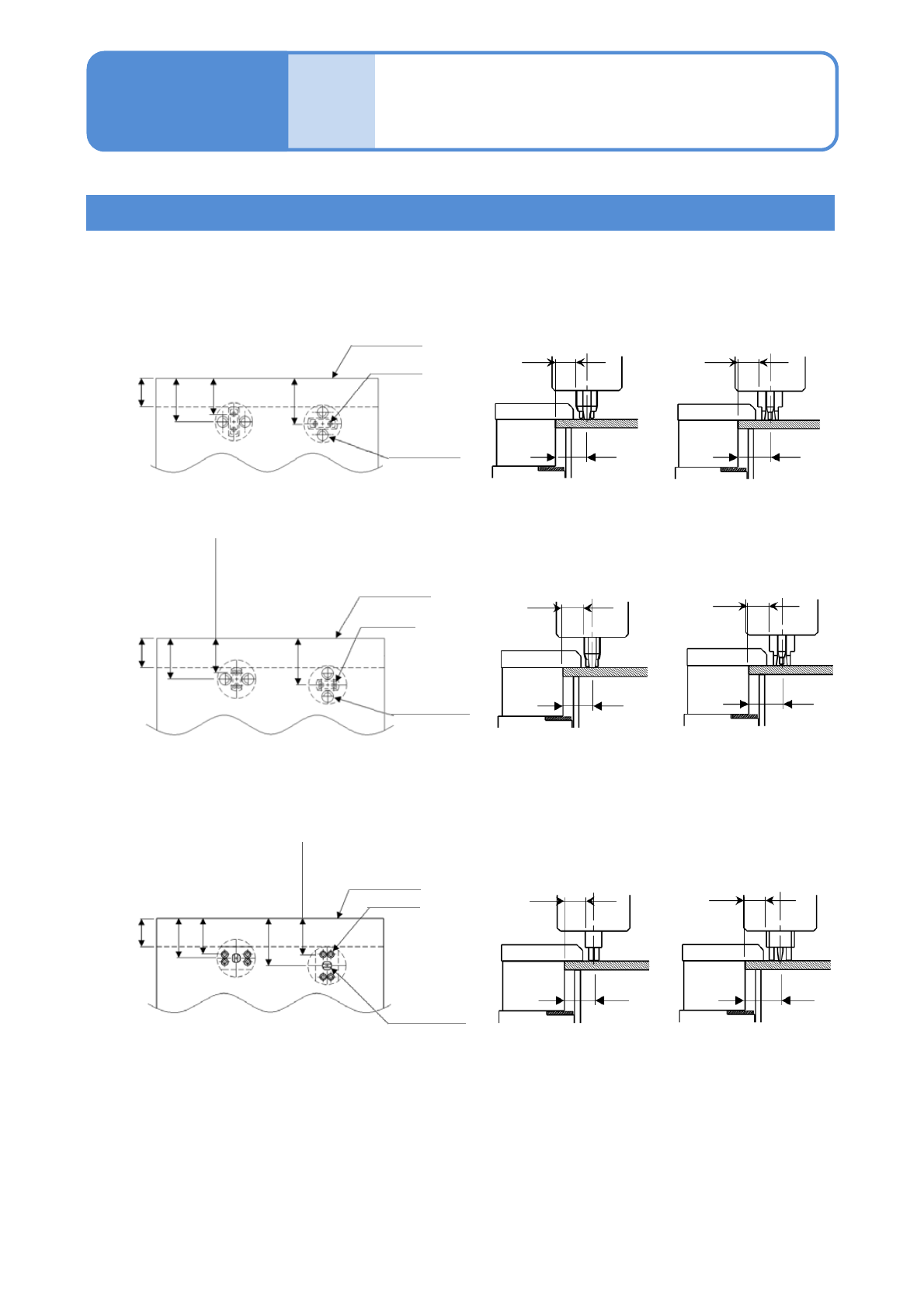

2) 2-point nozzle (Unit：mm)
Dispensing
disabled area
3.4
Dispensing
disabled area
3.4
5.4
5.65
( 0°)( -90°, 90°)
( 0°)
PCB edge
5.65
4.9
Dead space
3.4
Stopper tip
Nozzle
3.65 (7223)
3.8 (7222)
3.9 (7236)
4.0 (7201,7204)
4.1 (7202)
( -90°, 90°)
①7224 nozzle
PCB edge
5.65
5.4
Dead space
3.4
Stopper tip
Nozzle
4.4
Dispensing
disabled area
3.4
Dispensing
disabled area
3.4
4.9
5.65
( 0°)( -90°, 90°)
3) 4-point nozzle (Unit：mm)
②Other nozzles
( 0°)
PCB edge
5.9
4.9
Dead space
3.4
Stopper tip
Nozzle
( -90°, 90°)
4.4
3.9 (7601)
4.3 (7606)
Dispensing
disabled area
3.4
Dispensing
disabled area
3.4
4.9 5.9
( 0°)( -90°, 90°)
●The dispensing disabled area applies when mark recognition offset and nozzle offset are 0.
If correction or nozzle offset is performed the dispensing disabled area may be wider.
NPM-W2 EJM7DE-MB-09O-00
9-1-7
Nozzles are compatible between the nozzles for the NPM 3-nozzle head and those for CM301/ CM202/
CM120/ CM100 by replacing orifices, or attaching or detaching new ones.
●Nozzles for AM100 are not available.
■Divided-type nozzles
(1001, 1002 nozzle)
■Integral-type nozzle
(1003,1004,1005, special nozzle)
■Divided-type nozzles
(1001, 1002 nozzles)
■Integral-type nozzle
(1003,1004,1005, special nozzle)
Orifices C
(KXFB03KPA00)
Dedicated orifices B
(KXFB03KNA00)
Specifi-
cation
Compatibility among
nozzles
Orifices A
(KXFB01MPA00)
Orifices A Orifices B
Orifices C
CM301
CM202
CM120
CM100
Operating procedure
9-1-7
CM101 CM212
CM232 CM400
CM401 CM402
CM602 DT401
NPM series
At
a glance
NPM-W2 EJM7DE-MB-09O-00
9-1-8-1
Appearance
PCB
Thickness 0.3 to 8.0 mm
Material Glass epoxy, Paper Phenolic (Ceramic: custom support)
Measured
surface
material
The area of 1.5 x 1.5 mm or larger on the copper foil + the resist surface,
the copper foil surface, the silk surface or the ceramic surface.
Transparent and translucent area are excluded. (e.g. the surface of glass
epoxy composite material)
Function
Local PCB
height control
function
The PCB height (warpage) adjacent to the drawing position is
measured at multiple points in order to correct and optimize the
drawing height.
PCB warpage
acceptable
value
detection
function
If the difference equal to the measurement results of multiple
points exceeds the acceptable value, the occurrence of
defects in quality is prevented by detecting the error before
drawing.
Measure
ment
condition
Height
PCB upper surface ±4 mm
Area
The measurement point needs to be placed and set 5 mm
inside the edge of the PCB.
Measurement time
0.5 s (30 x 30 mm in an optimal condition, with 4-point measurement)
For the purpose of enhancing the drawing quality, the PCB warpage (height) is measured.
∗ Install to the X-axis mounted with the dispensing head.
∗ Measurement information is not communicated between machines.
∗ Only the dispensing height of the dispensing head can be corrected.
Local PCB height correction function
Specifi-
cation
Height sensor 1
Operating procedure
9-1-8
Height sensor
