Order No. 00192 169-01 User Manual - Productivity Lift E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 17 3.6 Attaching safety stickers The following safety stickers must be attached …
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 16
3.5.3 Locking the upper lift belt
WARNING
The installation aid shown in the figures serves to lock the upper lift belt during servicing,
maintenance work and transport. Any activity that involves a person having to intervene in any
way in the area between the upper lift belt and the lift belt should result in the following locking
measures being taken as described below. After the activities are finished and before the
device is turned on again all securities have to be removed and to be deposed at the right
place.
1. The following picture shows where the installation aid is kept when it is not in use.
Figure 4: Locking the upper lift belt in its storage position
2. Before carrying out any work that is required at either of the two lift units, the installation
lock must be press-fitted as shown in the figure below on the piston rod of the cylinder. To
this end, the lift must be transported to its uppermost position.
Figure 5: Upper lift belt lock mounted
Installation aid in
its storage place
Locking the lift unit
using the
installation aid.
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 17

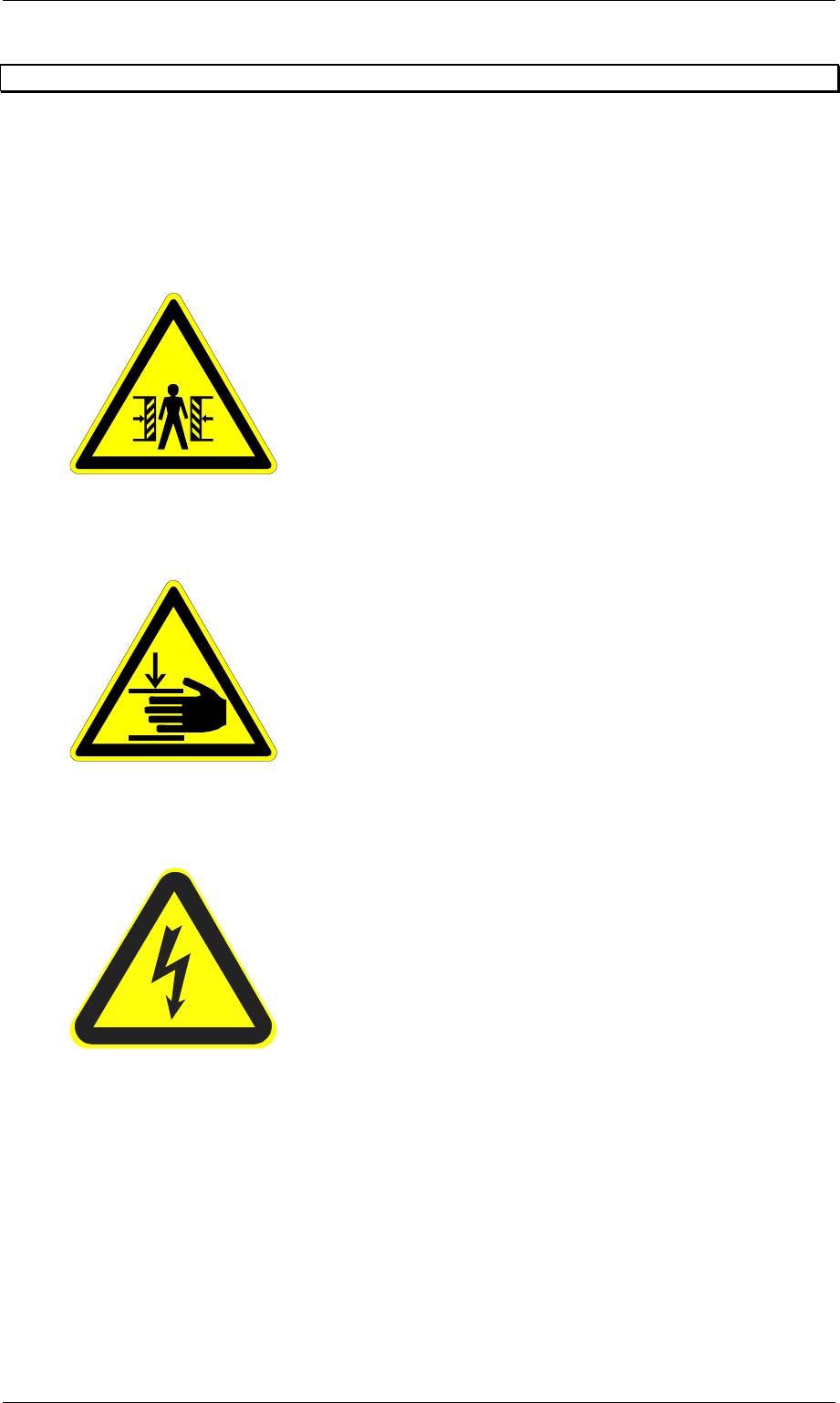

3.6 Attaching safety stickers
The following safety stickers must be attached to the system as described below. The
maintenance plan contains a check for these stickers.
3.6.1 Stickers used
3.6.1.1 Danger of crushing warning
Danger of crushing
3.6.1.2 Crushing of fingers
Crushing of fingers
3.6.1.3 Electrical (CAUTION)
Electrical (CAUTION)
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 18
3.6.2 Positioning the stickers
3.6.2.1 Input and end module
Figure 6: Labelling danger input and end module
3.6.2.2 Lift
Figure 7: Labelling danger operator side of the lift
