3.6.2 Positioning the stickers
3.6.2.1 Input and end module
Figure 6: Labelling danger input and end module
3.6.2.2 Lift

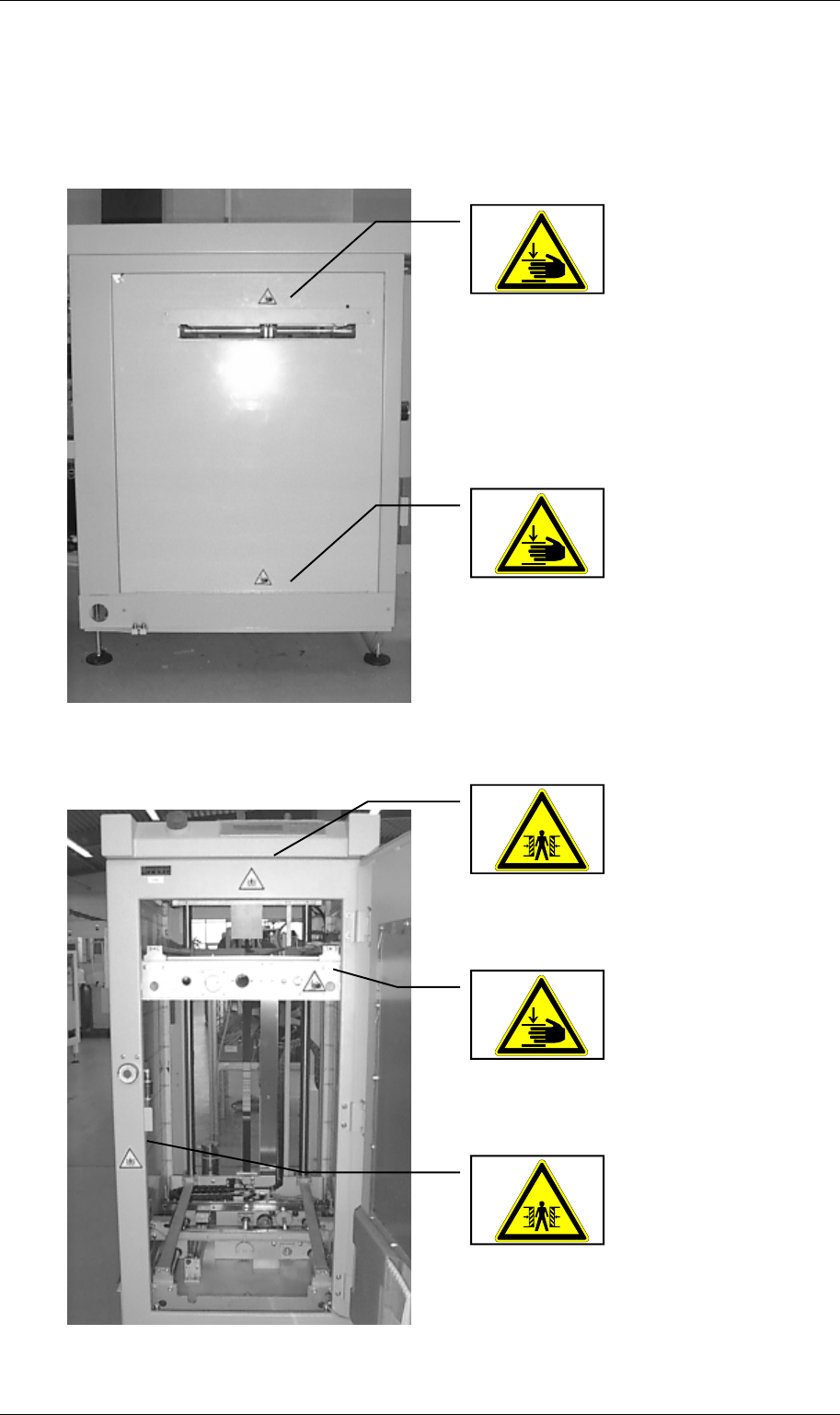

Figure 7: Labelling danger operator side of the lift
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 19
Figure 8: Labelling danger rear side of the lift

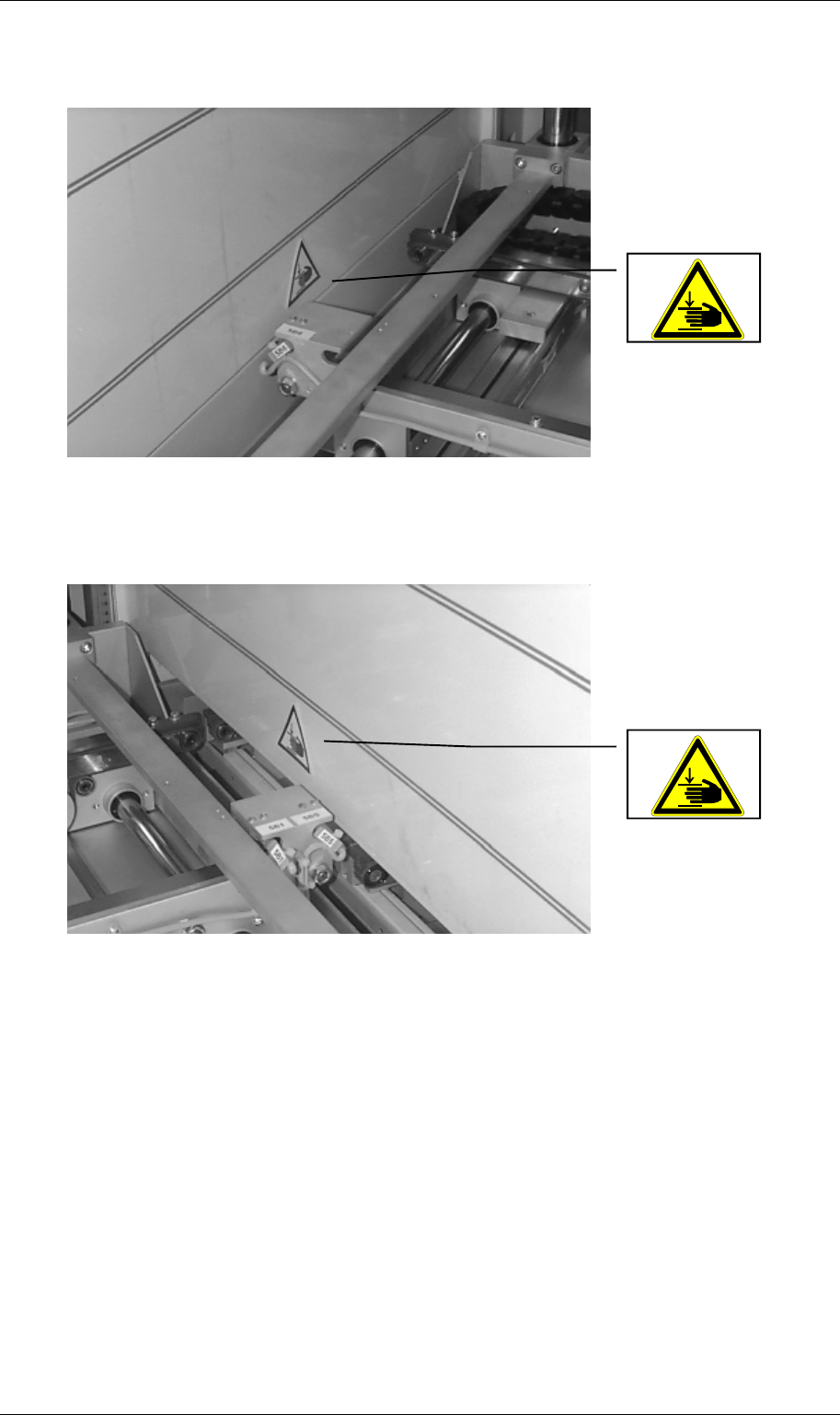

Figure 9: Labelling danger lift belt

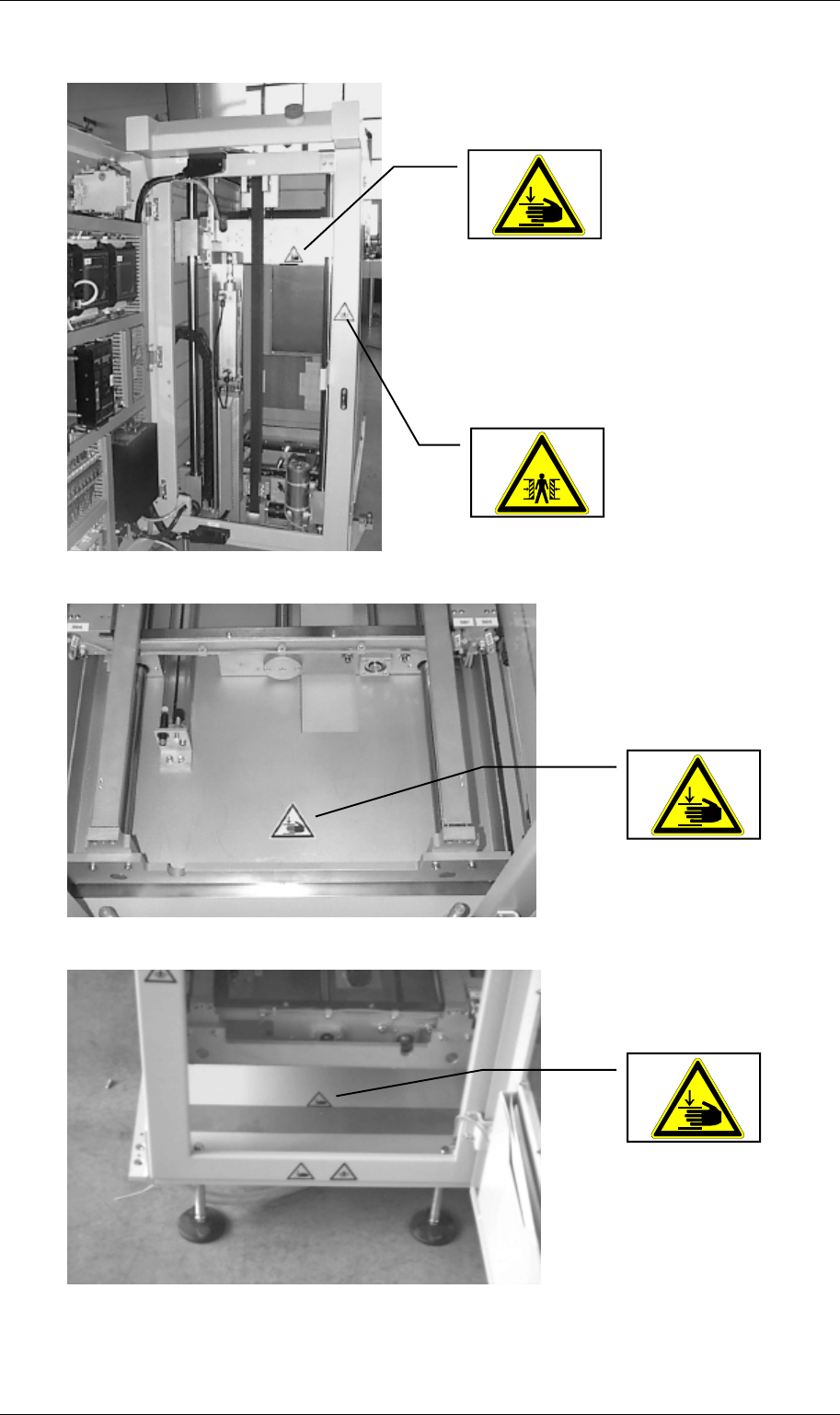

Figure 10: Labelling danger lift bottom
Order No. 00192 169-01 User Manual - Productivity Lift
E_SPLFS03_V40_11_0300_200300_V1_14.doc Last update: 20.03.2000 - Version V 1.14 Page 20
Figure 11: Labelling danger inside the lift
Figure 12: Labelling danger inside the lift
