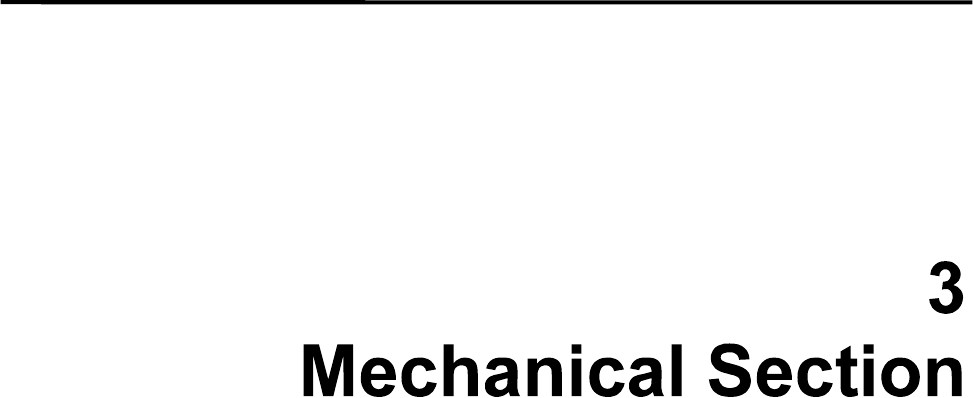

3 Mechanical Section

3-1

3 Mechanical Section

3-2

Head

■ Solenoid Valves

NOTE: Do not disassemble the solenoid valves for any purposes. Disassembling them is not covered by the

warranty.

Part No.

Part Name Manufacturer Manufacturer's Part NO.

LG0-M71A1-00X SOLENOID VALVE SMC VQD1151W-5LO-X21

■ Air Passage

Clean the air passage (from the air filter assy. to the nozzle holder) periodically to maintain machine

accuracy and placement rate. Give an air blow either from nozzle holder or from an air tube.

■ Air Filter

Take out air filter elements from air filter assy., once a week, to check if they are dirty. Replace the elements

if they are clogged with dust.

3 Mechanical Section

3-3

Nozzle

When obstacles such as solder paste is stuffed up in the nozzle, the suction becomes weak. And existence of

an obstacle at the nozzle tip prevents the vision processing from recognizing smaller components. Clean

nozzles to avoid these troubles.

■ Nozzle Cleaning with Air Blow

Clean nozzles with alcohol and then blow away dust with a blower (more than once a week). When choking

error occurs, also do the cleaning of the nozzle.

Be careful not to apply alcohol to identification marks. Quickly wipe off if

applied.

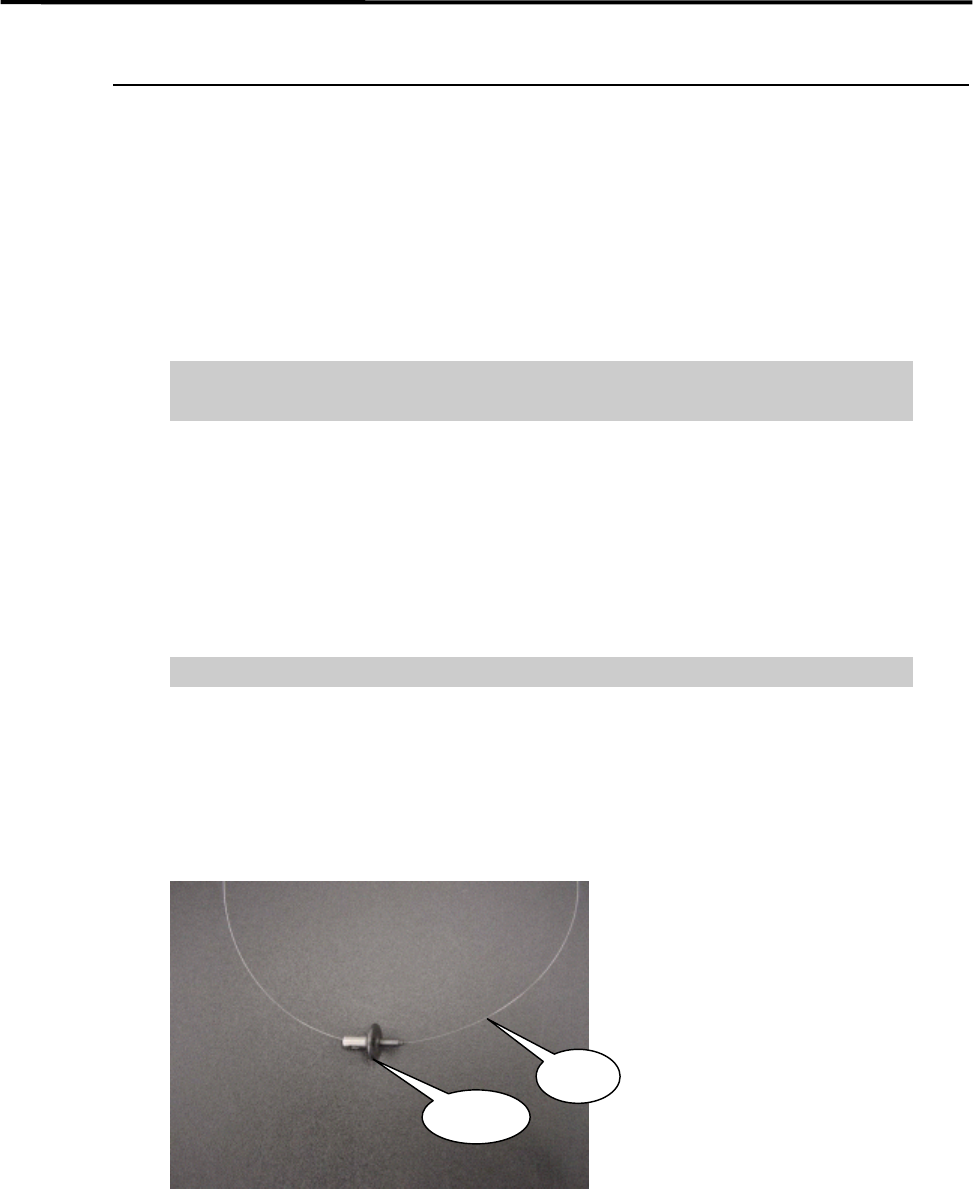

■ Nozzle Cleaning using Wire (1)

If the stain on the nozzle is stubborn, clean the nozzle using a wire.

Take care not to get injured with the fine wire when cleaning the nozzle.

ACTION:

① Have a wire ready.

(300mm length, 0.1mm diam. Part No. KV8-M8887-00X

② Pass the wire through the nozzle hole.

Wire

Nozzle

③ Wind to fasten the wire between both sides of the nozzle cleaner assy.

(Part No. KV8-M8881-A0X)
