Conveyor module DX4_20211123_095955 - 第7页
Conveyor module DX4 Page 7 / 16 23.11.2021
Conveyor module DX4
Page 6 / 16 23.11.2021
Conveyor module DX4
Page 7 / 16 23.11.2021
Conveyor module DX4
Page 8 / 16 23.11.2021
Pos. Item no. Description Part marking
1 03083212-01 CONVEYOR MODULE DX4 SC
2 03083199-01 BASEMODULE DX4 SC
03082500-01 BASE SUPPORT CPL. DX4
03084488-01 BASE SUPPORT 2 MACHINED DX4
03082359-01 BASE SUPPORT 1 MACHINED DX4
03082694-01 BEARING BLOCK DX4
03055151-01 GUIDE RAIL TKVD 15 / 640-20/20
03084458-01 TENSIONER WA DX4 CPL.
03084462-01 PLATE

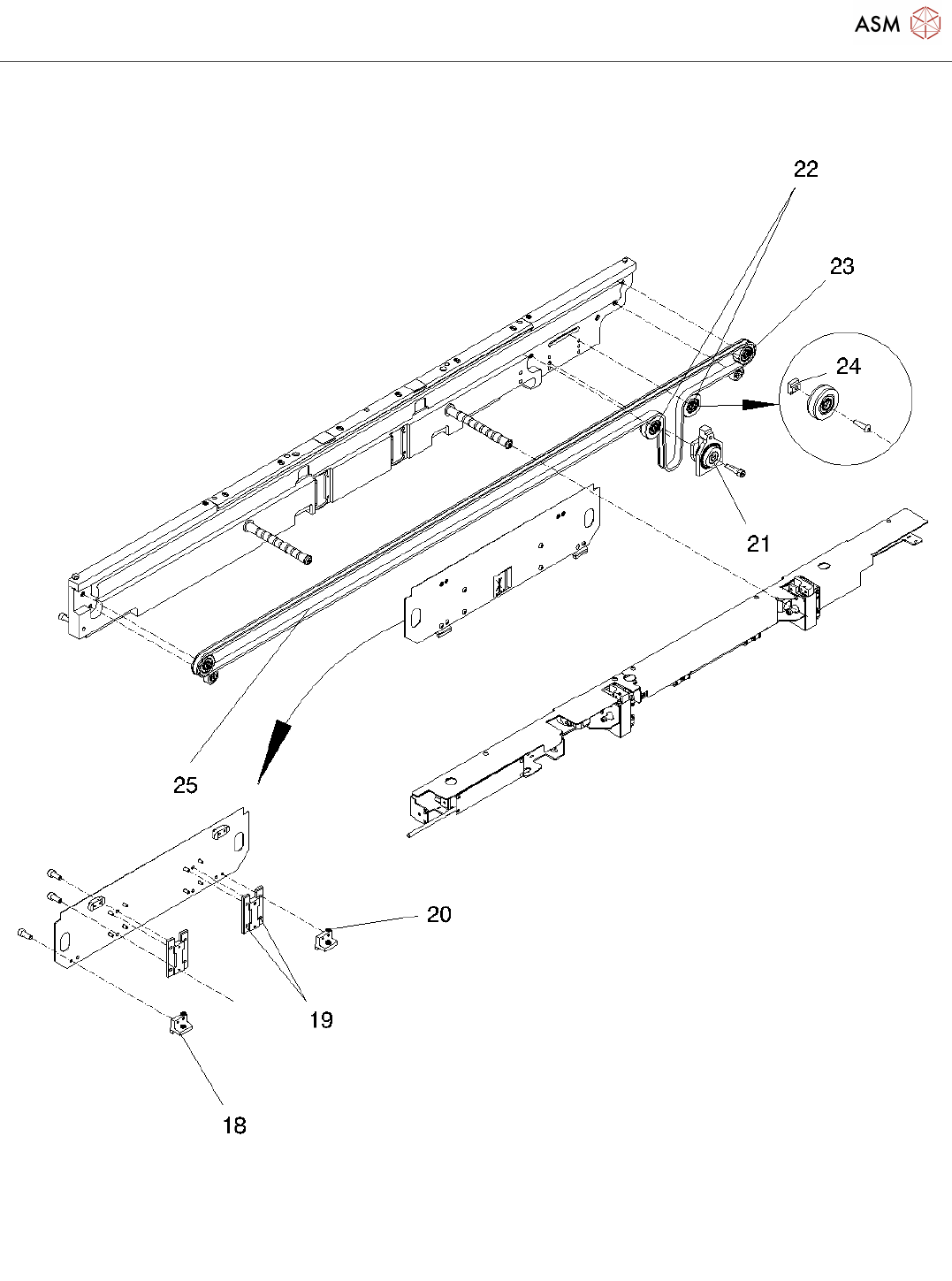

16 00337887S02 DEFLECTION PULLEY WIDTH
ADJUSTMENT COMPL
SPARE PART
4 03082968-01 SIDE FLANGE FIXED 1 DX4
5 03083007-01 SIDE FLANGE FIXED 2 DX4
6 03082396S01 LIFTING TABLE TYPE A - DX4 SPARE PART
03075658-01 BASE PLATE 1 LT
03075660-01 BASE PLATE 2 LT
03056768-02 BEARING BLOCK MOTOR
03082397-01 LEVER SHAFT WELDMENT - DX4
03075683-01 PUSH ROD LT
03051476-01 MOTOR CRANK 1
03051397-02 PLATE GUIDE LT
03051394-01 ADJUSTING BOLT M10
03076175-01 BEARING BLOCK 1
03063165-01 SHOULDER SCREW D5-HD8-L10-M4

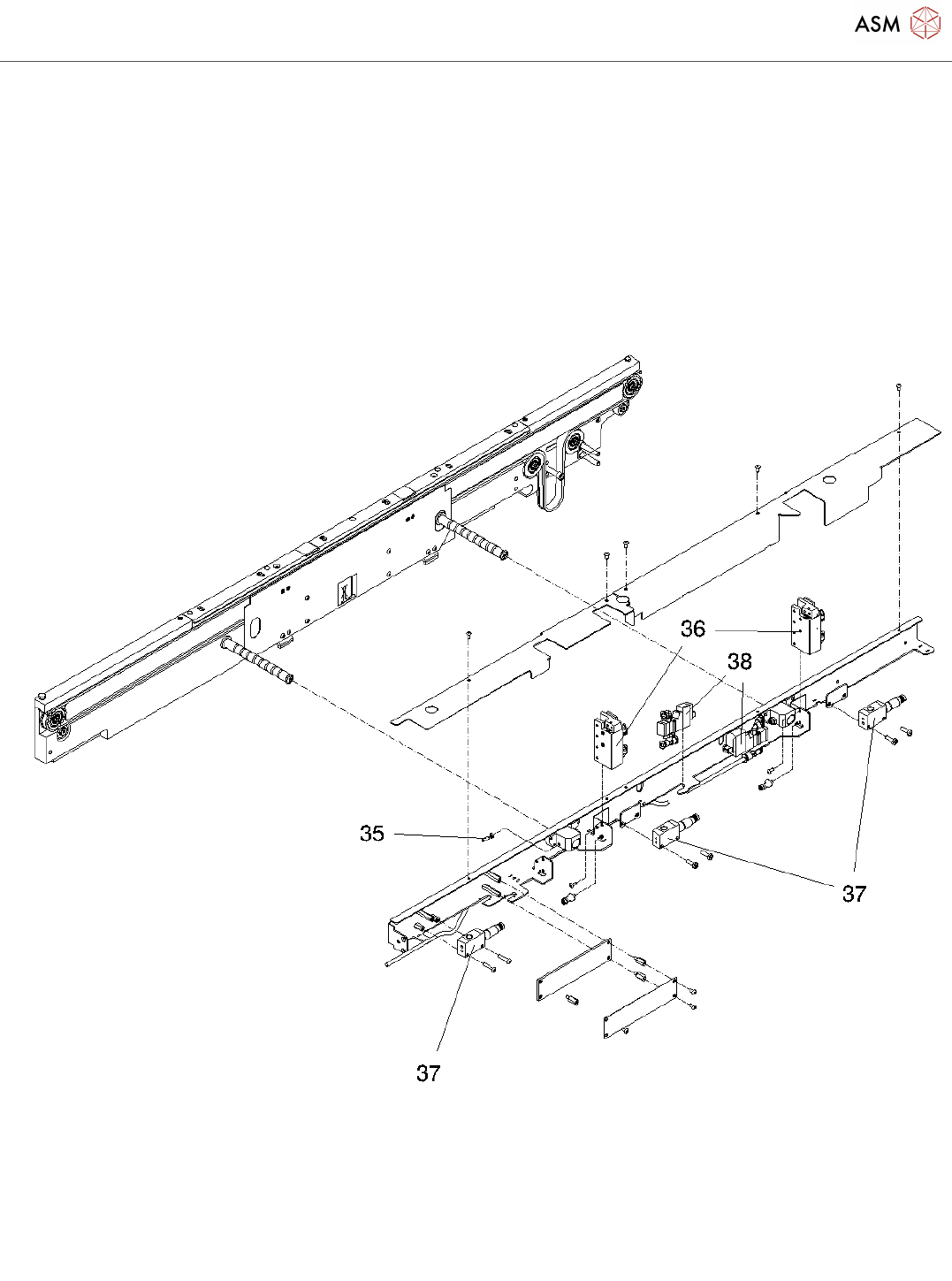

7 03064983S01 BLDC MOTOR WITH PLG AND BRAKE SPARE PART
8 00098615-01 DEEP-GROOVE BALL BEARING
5*16*5 625-2Z
Spare Part
03036349-01 DEEP GROOVE BEARING 12X32X10 SPARE PART
00354982-02 DEEP GR.BALL BEARING 15X32X9
6002-2RS1
03051463-01 NEEDLE ROLLER BEARINGS HK0810
9 03082415-01 LIFTING TABLE PLATE DX4 CPL.
10 03082416-01 LIFTING TABLE PLATE DX4
11 03082417-01 STIFFENER LIFTING TABLE PLATE
DX4
12 03078341S01 DRIVE UNIT WA SPARE PART
