MODEL TCM-3700-2 0109-001 125 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 6-2 1 630 086 8371 BASE 1 739J--01B-002 2 630 064 5736 P L A T E 1 739J--01B-069 2 -1 630 084 3590 P L A T E 1 739J--01B-024 3 4 1 1 1 4…
MODEL TCM-3700-2
0109-001
124

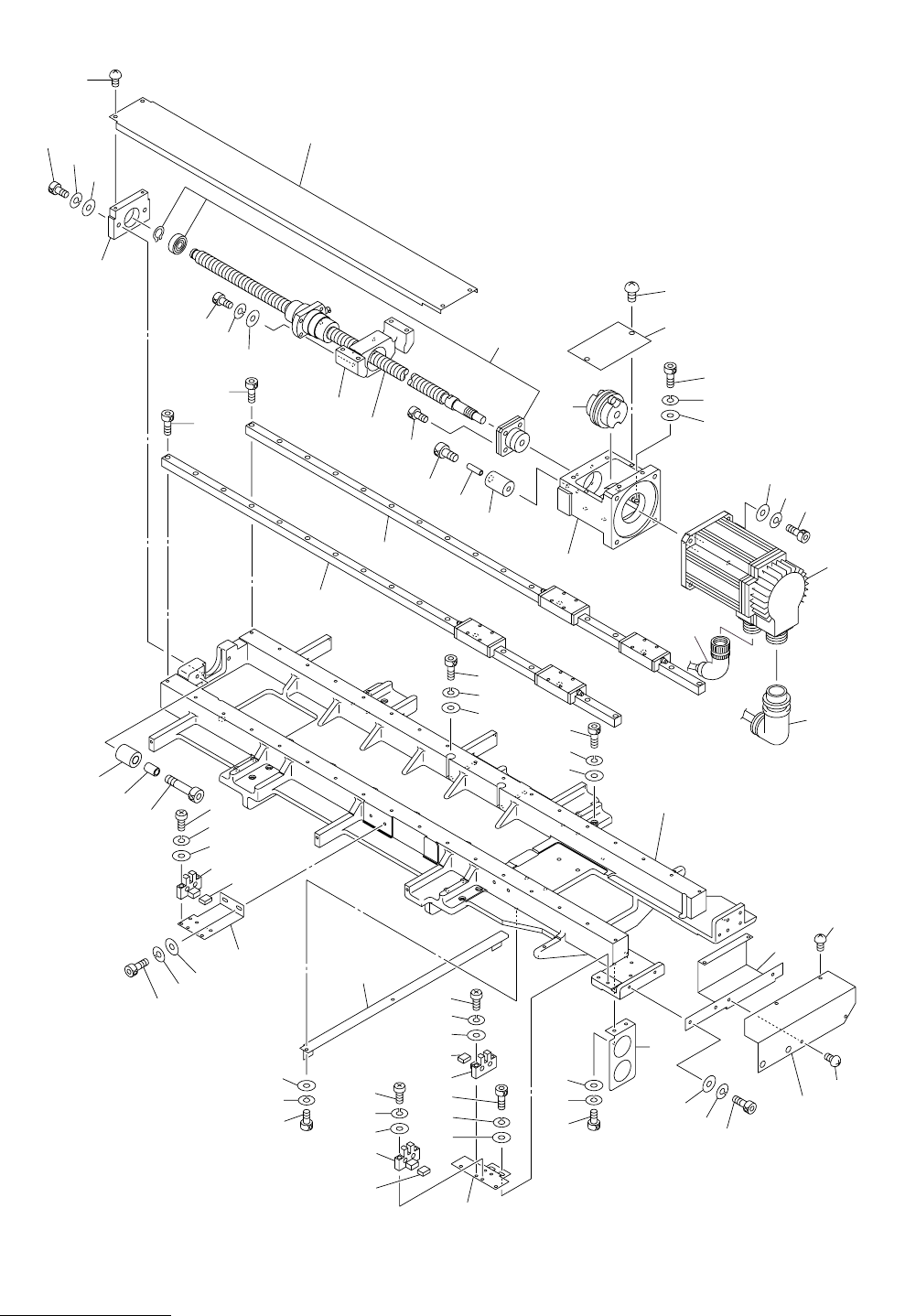

㨄㨅࠹ࡉ࡞ㇱ XY TABLE SECTION
Fig. 6-2 㨅ゲ Y Axis
45
44
33
32
31
30
25
24
23
22
47
46-1
46
51
51
94
1
66
66
61
63
4
3
5
12
13
11
10
9
16
15
14
13
12
11
3
2-1
4
5
9
13
48
49
50
12
11
9
10
7
14
15
16
10
6
2
64
65
62
95
96
91
92
93
38
19
18
20
45
43
40
41
42
39
123
117
17
27
26
21
52
52
TCM-3700-2
Fig.6-2
MODEL TCM-3700-2
0109-001
125
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-2
1 630 086 8371 BASE 1 739J--01B-002
2 630 064 5736 PLATE 1 739J--01B-069
2 -1 630 084 3590 PLATE 1 739J--01B-024
3 411 141 4008 WASHER V 4X9X0.8 4 FW4
4 411 141 2905 WASHER SPR 4 4 SW4
5 630 000 7640 BOLT,HEX-SCT 4 M4X14
6 630 084 5839 BRACKET 1 739J--01B-017
7 630 084 5907 BRACKET 1 739J--01B-018
9 630 000 0252 SENSOR,PHOTO 3 PHS52, PHS53, PHS54
739J--01H-071
10 630 000 0269 SENSOR,PHOTO(CONNECTOR) 3 739J--01H-075
11 411 088 9005 WASHER F 3X6X0.5 6 FWS3 F
12 411 086 4408 WASHER SPR 3 6 SW3 F
13 411 113 0502 SCR PAN 3X14 6 M3X14 PAN
14 411 141 4008 WASHER V 4X9X0.8 4 FW4
15 411 141 2905 WASHER SPR 4 4 SW4
16 630 000 7640 BOLT,HEX-SCT 4 M4X14
17 630 064 4197 BRACKET,LOCATE 1 739J--01B-005
18 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
19 411 141 3001 WASHER SPR 6 4 SW6
20 630 000 7893 BOLT,HEX-SCT 4 M6X20
21 630 064 5156 BRACKET,LOCATE 1 739J--01B-004
22 630 083 7339 BALL SCREW 1 739J--01H-002
23 411 141 4107 WASHER V 5X10X1 4 FW5
24 411 141 6705 WASHER SPR 5 4 SW5
25 630 000 7787 BOLT,HEX-SCT 4 M5X25
26 630 005 1377 BEARING,UNIT 1 739J--01H-016
27 630 000 7770 BOLT,HEX-SCT 4 M5X20
30 630 064 5576 HOLDER 1 739J--01B-019
31 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
32 411 141 3001 WASHER SPR 6 2 SW6
33 630 000 7893 BOLT,HEX-SCT 2 M6X20
38 630 063 9285 COUPLING 1 739J--01H-007
39 630 086 3536 MOTOR,AC-SERVO 1 SVM5(Y), #SGMSH-15ACA-TV11
739J--01H-009
40 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
41 411 141 3001 WASHER SPR 6 4 SW6
42 630 000 7916 BOLT,HEX-SCT 4 M6X30
43 630 064 5934 COVER 1 739J--01B-070
44 630 084 5198 COVER 1 739J--01B-021
45 411 051 1708 SCR TRS 4X6 6 M4X6 TRS
46 630 084 5242 MECH PARTS 1 739J--01B-065
46 -1 630 084 3668 COLLAR 1 739J--01B-067
47 630 000 7893 BOLT,HEX-SCT 1 M6X20
48 630 064 6016 MECH PARTS 1 739J--01B-066
49 630 064 6054 COLLAR 1 739J--01B-068
50 630 000 7923 BOLT,HEX-SCT 1 M6X35
51 630 086 8562 GUIDE,LINEAR 2 739J--01H-004
52 630 000 7664 BOLT,HEX-SCT 34 M4X20
61 630 066 0548 PANEL 1 739J--01B-071
MODEL TCM-3700-2
0109-001
126
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
6-2
62 630 066 0555 COVER 1 739J--01B-072
63 411 141 4008 WASHER V 4X9X0.8 2 FW4
64 411 141 2905 WASHER SPR 4 2 SW4
65 630 000 7633 BOLT,HEX-SCT 2 M4X12
66 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
91 411 141 4107 WASHER V 5X10X1 16 FW5
92 411 141 6705 WASHER SPR 5 16 SW5
93 630 000 7770 BOLT,HEX-SCT 16 M5X20
94 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
95 411 141 3001 WASHER SPR 6 4 SW6
96 630 000 7909 BOLT,HEX-SCT 4 M6X25
117 630 076 5359 ASSY,CORD (C35-Y-SVM) 1
123 630 095 0199 CORD(C35-Y-PG) 1 739FB-01D-810
