Key No. PART No. PART NAME Q’ty REMARKS
NOTE
1-2
77 411 141 6705 WASHER SPR 5 4 SW5
78 630 000 7770 BOLT,HEX-SCT 4 M5X20
80 630 059 7219 COVER 1 739LB-01B-043
81 411 140 8007 SCR TRS 5X6 9 M5X6 TRS
90 630 001 0244 WASHER 2 BW8
91 630 052 0446 CLAMP 1 739L--01H-069
92 630 001 0220 WASHER 2 739L--01H-071
93 411 141 6705 WASHER SPR 5 2 SW5
94 630 000 7770 BOLT,HEX-SCT 2 M5X20
MEMO
MODEL TCM-3700-2
0109-001
14

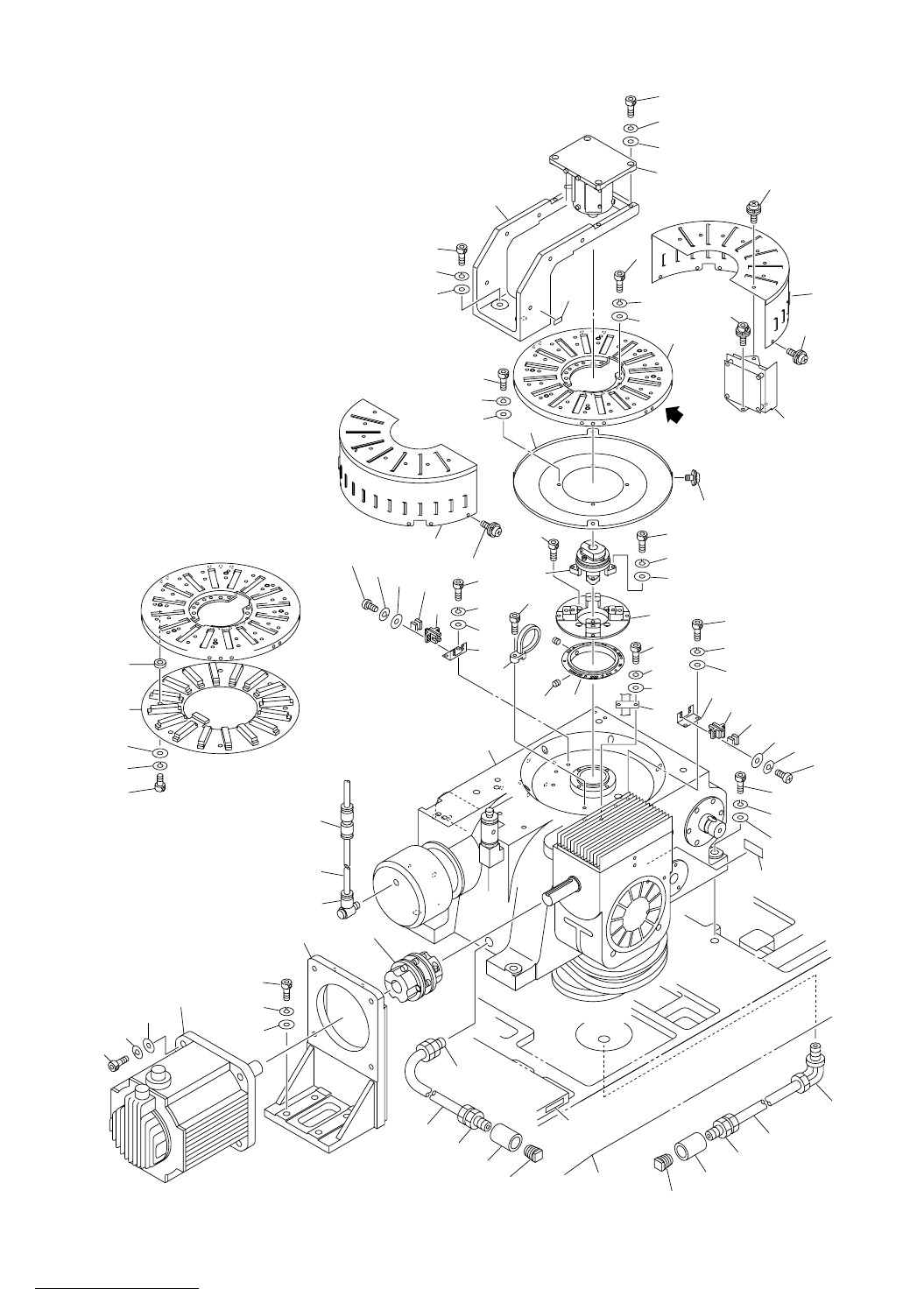

࠲ࡦ࠹ࡉ࡞ㇱ TURNTABLE SECTION
Fig. 2-1 ࠗࡦ࠺࠶࡙ࠢࠬ࠾࠶࠻ Indexing Drive Unit
1
9
8
7
103
62
71
72
73
65
64
63
66
67
68
69
13
25
24
23
22
1112
28
29
45
48
47
46
30
31
32
33
34
44
59
60
57
58
60
49
52
51
50
53
56
55
54
DETAIL"A"
A
14
15
17
16
20
19
18
59
60
35
38
39
40
91
92
93
94
95
See Fig.1-1
Key No.13
101
61
3
4
5
6
2
102
27
26
36
17
20
19
18
13
14
15
16
14-1
14-1
41
42
43
TCM-3700-2
Fig.2-1
