MODEL TCM-3700-2 0109-001 159 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 7-3 1 630 028 9493 G E AR 2 739G--01H-006 2 630 000 8951 SET SCRE W 4 M5 X8 SE T 3 630 077 4573 SH AF T 1 739G--01B-009 4 630 028 9480 G…
MODEL TCM-3700-2
0109-001
158
42
2
1
6-1
6
5
6-1
1
6
5
37
38
37
34
30
29
28
25
24
26
27-1
25
26
27
20
16
6-1
6
7
4
3
8
9
7
4
2
22
21
23
17
35
36
33
39
8
9
7
8
9
A
A
41
See Fig.7-1
Key No.2
TCM-3700-2
TCM-3700
Fig.7-3
㧸ࠦࡦࡌࠕㇱ L CONVEYOR SECTION
Fig. 7-3 ࠼ࠗࡉࠪࡖࡈ࠻ Driving Shaft
MODEL TCM-3700-2
0109-001
159
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
7-3
1 630 028 9493 GEAR 2 739G--01H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 077 4573 SHAFT 1 739G--01B-009
4 630 028 9480 GEAR 2 739G--01H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 3 739G--01H-005
6 -1 630 057 7297 COLLAR 3 739G--01B-036
7 411 141 4107 WASHER V 5X10X1 6 FW5
8 411 141 6705 WASHER SPR 5 6 SW5
9 630 000 7800 BOLT,HEX-SCT 6 M5X35
16 630 056 3924 PULLEY,TIMING 1 739G--01H-041
17 630 000 8951 SET SCREW 2 M5X8 SET
20 630 077 4641 BRACKET(MOTOR L) 1 739G--01B-043
21 411 141 4107 WASHER V 5X10X1 2 FW5
22 411 141 6705 WASHER SPR 5 2 SW5
23 630 000 7749 BOLT,HEX-SCT 2 M5X10
24 630 009 5869 MOTOR,STEPPING 1 PM101(CVW1), #103-8572-7041
739G--01H-040
25 411 141 4107 WASHER V 5X10X1 2 FW5
26 411 141 6705 WASHER SPR 5 2 SW5
27 630 000 7763 BOLT,HEX-SCT 1 M5X16
27 -1 630 000 7787 BOLT,HEX-SCT 1 M5X25
28 630 001 0220 WASHER 1 739G--01H-027
29 411 141 6705 WASHER SPR 5 1 SW5
30 411 141 0505 NUT HEX 5 1 M5
33 630 056 3917 PULLEY,TIMING 1 739G--01H-042
34 630 000 8951 SET SCREW 2 M5X8 SET
35 630 048 9668 BELT,TIMING 1 739G--01H-043
36 630 077 4658 COVER(L) 1 739G--01B-044
37 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
38 630 035 8384 BOSS(HANDLE) 1 739G--01B-047
39 630 008 2296 SET SCREW 2 M4X4 SET
41 630 077 4535 COVER 1 739G--01B-018
42 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
MODEL TCM-3700-2
0109-001
160

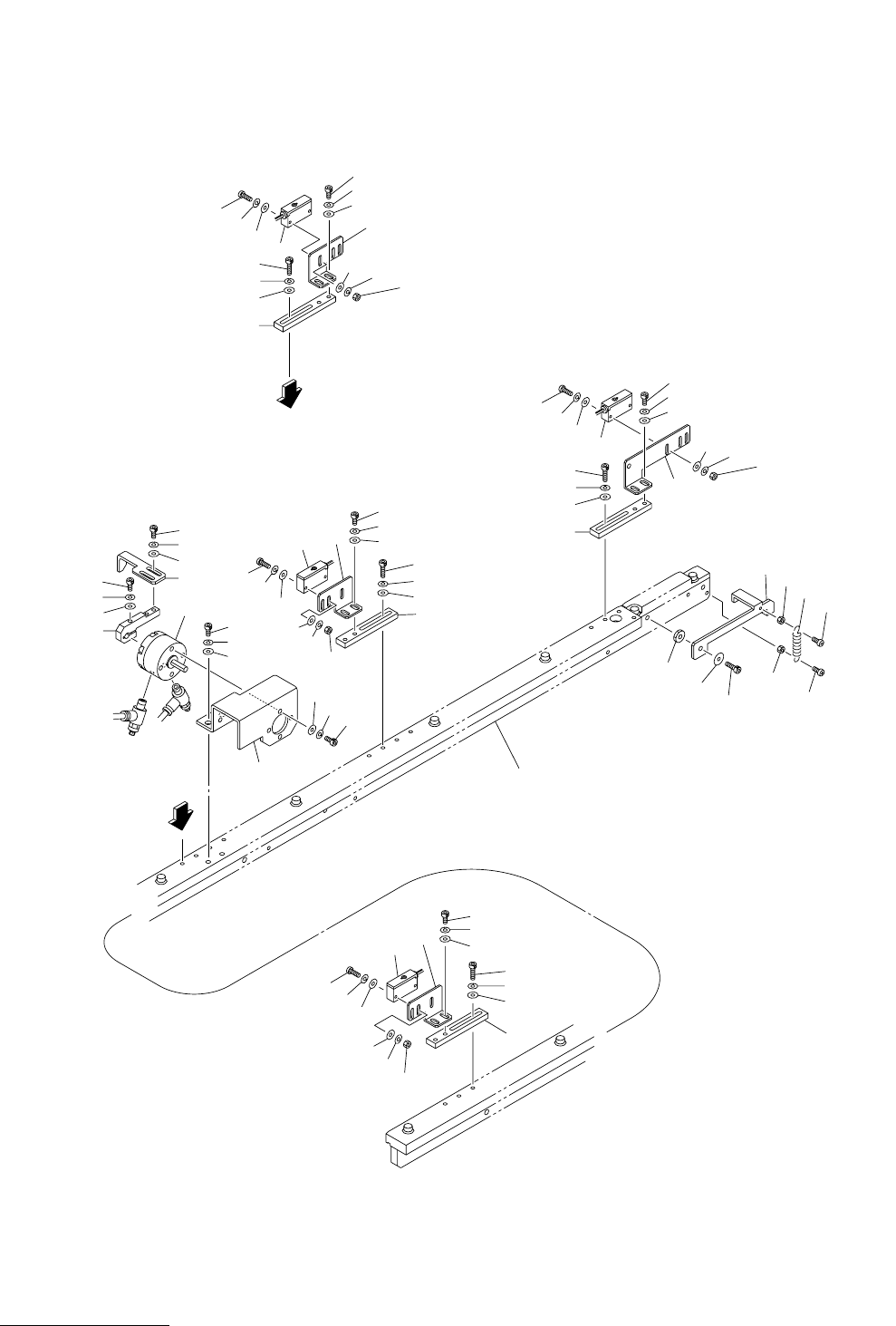

㧸ࠦࡦࡌࠕㇱ L CONVEYOR SECTION
Fig. 7-4 ၮ᧼ᬌㇱޔၮ᧼ࠬ࠻࠶ࡄ
P.C.B. Detector, P.C.B. Stopper
TCM-3700-2
Fig.7-4
1
9-2
9-1
9-3
3-2
3-1
2
31
32
33
21
35
34
36
9-3
9-2
9-1
8
7
6
3-1
3-2
3-4
3-3
3-2
3-1
1-2
2
1
26
25
24
22
27
29
28
23
30
7
6
8
9-2
9-1
1
9-3
3-3
3-2
3-1
3-1
3-2
3-4
2
1-2
3-3
11
15
19
16
17
18
14
12
13
3-1
6
7
8
3-2
3-4
1-3
1
9-2
9-1
9-3
3-2
3-1
2
3-3
3-1
6
7
8
3-2
3-4
1-1
See Fig.7-1
Key No.56
A
A
