MODEL TCM-3700-2 0109-001 163 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 8-1 2 630 084 4481 BASE(CONVEYOR R) 1 7 39H--01B-001 3 630 075 6395 PL A T E , L O C A T E 1 739H--01B-004 4 4 1 1 1 4 1 4 1 07 WASHER V…
MODEL TCM-3700-2
0109-001
162

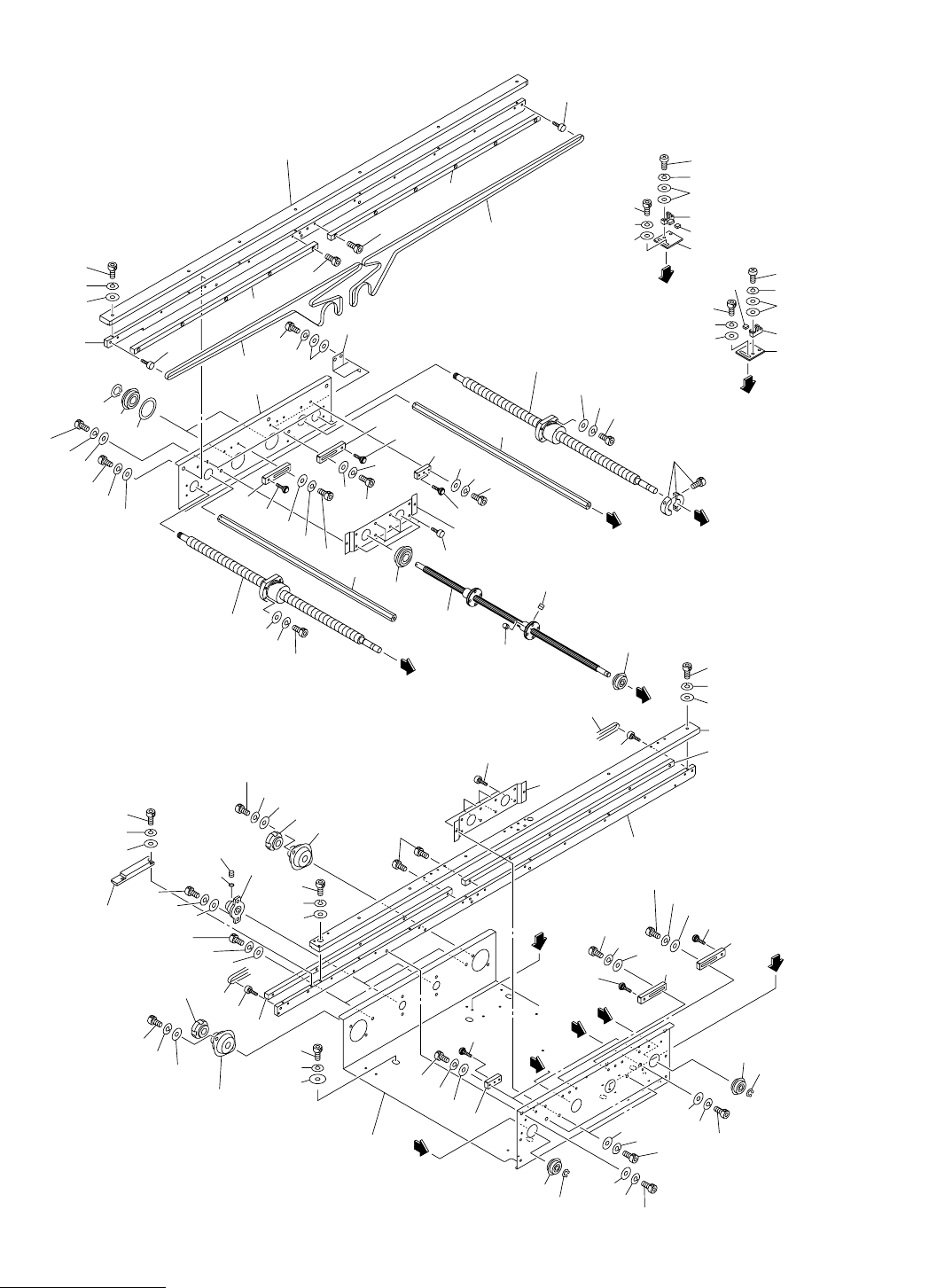

R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION
Fig. 8-1 ࠦࡦࡌࠕ Conveyor
57
59
58
8-1
9
16
15
14
28
29
27
30
36
35
34
37
33
22
36
35
34
41
40
39
49
48
47
46
45
E
44
43
42
45
44
43
39
40
41
14
15
16
31
32
4
5
6
31
32
53-1
53-1
42
F
25
24
23
33
38
43
44
53-1
42
45
18
53
19
7
21
55
53
47
48
46
49
28
27
29
30
A
C
96
38
D
53-1
10
21
B
59
58
56
50-1
8
51
59
60-1
26-1
26
59
58
60-1
56-1
58
78
79
73
77
75
76
74
72
71
78
79
77
75
76
74
72
73
71
E
F
92
A
B
C
D
2
93
91
53-1
54
37
53
50
53
3
60
43
45
42
53-1
44
13
12
11
20
18
17
69
68
67
53
50
51
50-1
53
55
54
66
51
60
TCM-3700-2
TCM-3700
Fig.8-1
MODEL TCM-3700-2
0109-001
163
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-1
2 630 084 4481 BASE(CONVEYOR R) 1 739H--01B-001
3 630 075 6395 PLATE,LOCATE 1 739H--01B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 2 739H--01H-022
8 630 084 4504 PLATE(MAE) 1 739H--01B-012
8 -1 630 084 4498 PLATE(OKU) 1 739H--01B-011
9 630 077 4764 PLATE,LOCATE(R) 1 739H--01B-003
10 630 075 6166 PLATE,LOCATE 1 739H--01B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
15 411 141 3001 WASHER SPR 6 6 SW6
16 630 000 7886 BOLT,HEX-SCT 6 M6X16
17 630 030 5913 COLLAR 2 739H--01B-007
18 630 001 1531 BEARING,RADIAL 4 739H--01H-021
19 630 084 1909 GUIDE,LINEAR 2 739H--01H-024
20 411 000 7805 RING C 20 2 739H--01H-023
21 630 000 8883 SET SCREW 2 M3X4 SET
22 630 008 5303 BEARING,UNIT 2 739H--01H-020
23 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
24 411 141 3001 WASHER SPR 6 4 SW6
25 630 000 7879 BOLT,HEX-SCT 4 M6X12
26 630 000 8920 SET SCREW 2 M4X6 SET
26 -1 630 053 5419 COLLAR 2 739H--01B-025
27 630 084 1916 BALL SCREW 2 739H--01H-010
28 411 141 4008 WASHER V 4X9X0.8 8 FW4
29 411 141 2905 WASHER SPR 4 8 SW4
30 630 000 7657 BOLT,HEX-SCT 8 M4X16
31 630 001 1432 BEARING,RADIAL 2 739H--01H-009
32 411 000 7300 RING C 12 2 739H--01H-004
33 630 031 0566 BEARING,UNIT 2 739H--01H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 739H--01H-013
38 630 084 4399 STAY 2 739H--01B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 075 6159 PLATE 4 739H--01B-005
43 411 141 4107 WASHER V 5X10X1 8 FW5
44 411 141 6705 WASHER SPR 5 8 SW5
45 630 000 7763 BOLT,HEX-SCT 8 M5X16
46 630 075 6302 SPACER 4 739H--01B-056
47 411 141 4008 WASHER V 4X9X0.8 8 FW4
48 411 141 2905 WASHER SPR 4 8 SW4
49 630 000 7633 BOLT,HEX-SCT 8 M4X12
MODEL TCM-3700-2
0109-001
164
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-1
50 630 084 4535 CHUTE(L) 2 739H--01B-055
50 -1 630 084 4542 CHUTE(R) 2 739H--01B-057
51 630 000 7633 BOLT,HEX-SCT 22 M4X12
53 630 069 5373 PULLEY,FLAT 20 739H--01H-001
53 -1 630 069 5380 PULLEY,FLAT 8 739H--01H-047
54 630 090 7988 BELT,FLAT 2 739H--01H-002
55 630 090 7995 BELT,FLAT 2 739H--01H-038
56 630 084 4528 GUIDE(MAE1) 1 739H--01B-014
56 -1 630 077 4924 GUIDE(MAE 2) 1 739H--01B-065
57 630 084 4511 GUIDE(OKU) 1 739H--01B-013
58 411 141 4008 WASHER V 4X9X0.8 16 FW4
59 411 141 2905 WASHER SPR 4 16 SW4
60 630 000 7664 BOLT,HEX-SCT 13 M4X20
60 -1 630 000 7633 BOLT,HEX-SCT 3 M4X12
66 630 056 2743 PLATE(L) 1 739H--01B-048
67 411 141 4008 WASHER V 4X9X0.8 4 FW4
68 411 141 2905 WASHER SPR 4 2 SW4
69 630 000 7602 BOLT,HEX-SCT 2 M4X6
71 630 056 2736 PLATE 2 739H--01B-049
72 630 000 0252 SENSOR,PHOTO 2 PHS116, PHS117 739H--01H-044
73 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 739H--01H-045
74 411 088 9005 WASHER F 3X6X0.5 8 FWS3 F
75 411 086 4408 WASHER SPR 3 4 SW3 F
76 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
77 411 141 4008 WASHER V 4X9X0.8 4 FW4
78 411 141 2905 WASHER SPR 4 4 SW4
79 630 000 7626 BOLT,HEX-SCT 4 M4X10
91 630 001 0237 WASHER 3 739H--01H-025
92 411 141 3001 WASHER SPR 6 3 SW6
93 630 000 7886 BOLT,HEX-SCT 3 M6X16
96 630 035 6618 MECH PARTS (SET COLLARS) 1 739H--01H-046
