MODEL TCM-3700-2 0109-001 166 R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION Fig. 8-2 ࠦࡦࡌࠕ㚟േㇱ Conveyor Driver 8 7 8 7 8 8 9 4 5 6 4-1 1 5 6 10 2 2 3 3 11 12 31 32 9 7 7 See Fig.8-1 Key No.2 6-1 6-1

100%1 / 274
MEMO
MODEL TCM-3700-2
0109-001
166
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

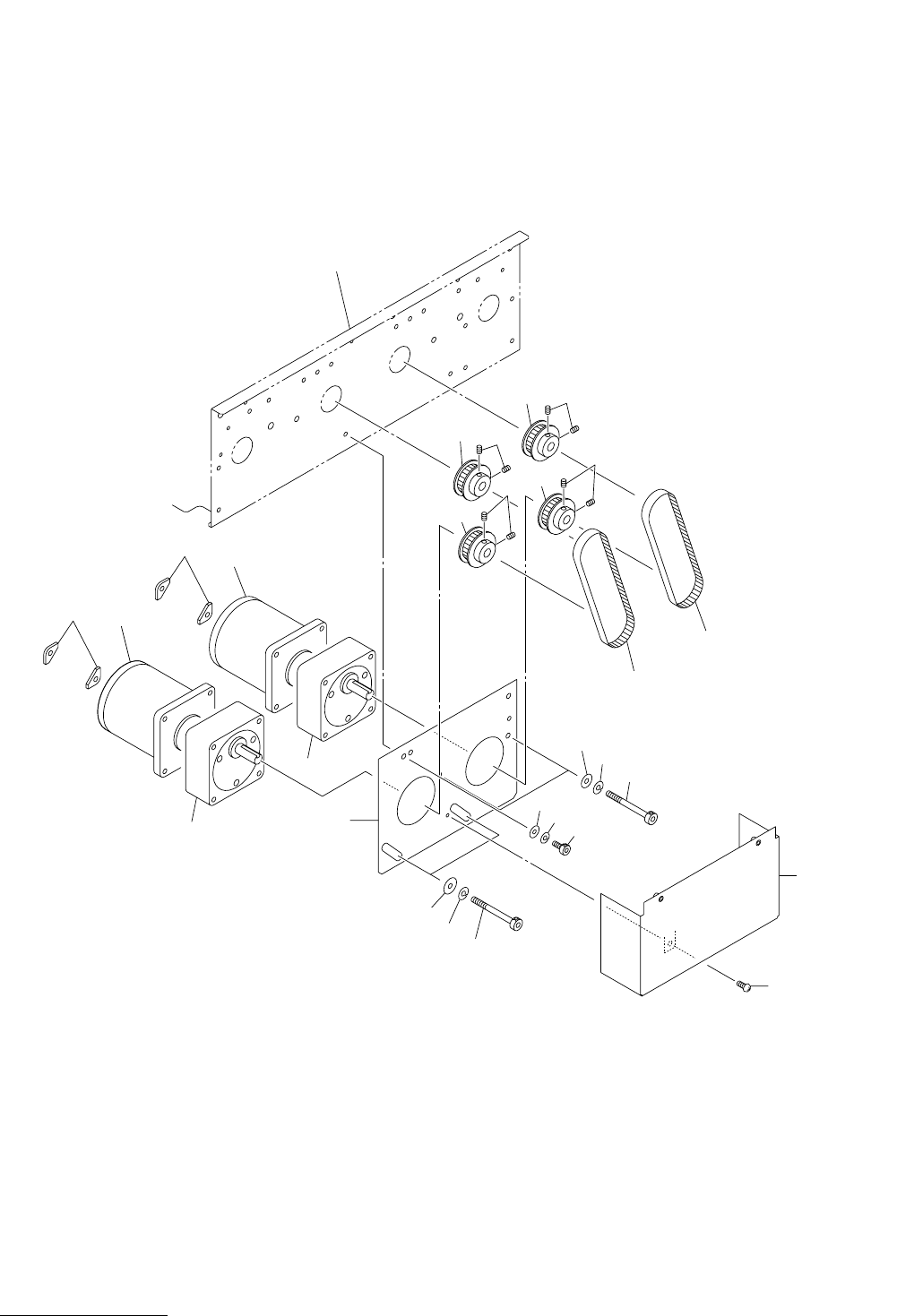

Fig. 8-2 ࠦࡦࡌࠕ㚟േㇱ Conveyor Driver
8
7
8
7
8
8
9
4
5
6
4-1
1
5
6
10
2
2
3
3
11
12
31
32
9
7
7
See Fig.8-1
Key No.2
6-1
6-1
MODEL TCM-3700-2
0109-001
167
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
8-2
1 630 077 4580 BRACKET(MOTOR) 2 739H--01B-010
2 630 006 0409 GEAR,REDUCTION 2 739H--01H-016
3 630 075 6333 MOTOR,REVERSIBLE 2 M4, M100, 4RK25GN-AUL 100V
739H--01H-015
4 411 141 4107 WASHER V 5X10X1 2 FW5
4 -1 630 001 0220 WASHER 2 739H--01H-027
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7848 BOLT,HEX-SCT 4 M5X60
6 -1 630 075 6289 NUT 4 739H--01B-054
7 630 009 2684 PULLEY,TIMING 4 739H--01H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 078 7900 BELT,TIMING 2 739H--01H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
31 630 077 4832 COVER(MOTOR) 1 739H--01B-032
32 411 051 1708 SCR TRS 4X6 1 M4X6 TRS
