MODEL TCM-3700-2 0109-001 182 ࠻ࡦࠬࡈࠔㇱ TRANSFER SECTION Fig. 9-4 ㅍࠅ╀ Transfer Rod 2 2-1 6-1 See Fig.9-1 Key No.6 See Fig.9-1 Key No.6-1 3 4 6 3 4 6 1 7 8 9 10 11 12 13 14 15 16 3 4 5 3 4 5 1 7 8 9 10 11 12 13 14 15 16
MEMO
MODEL TCM-3700-2
0109-001
182
࠻ࡦࠬࡈࠔㇱ TRANSFER SECTION

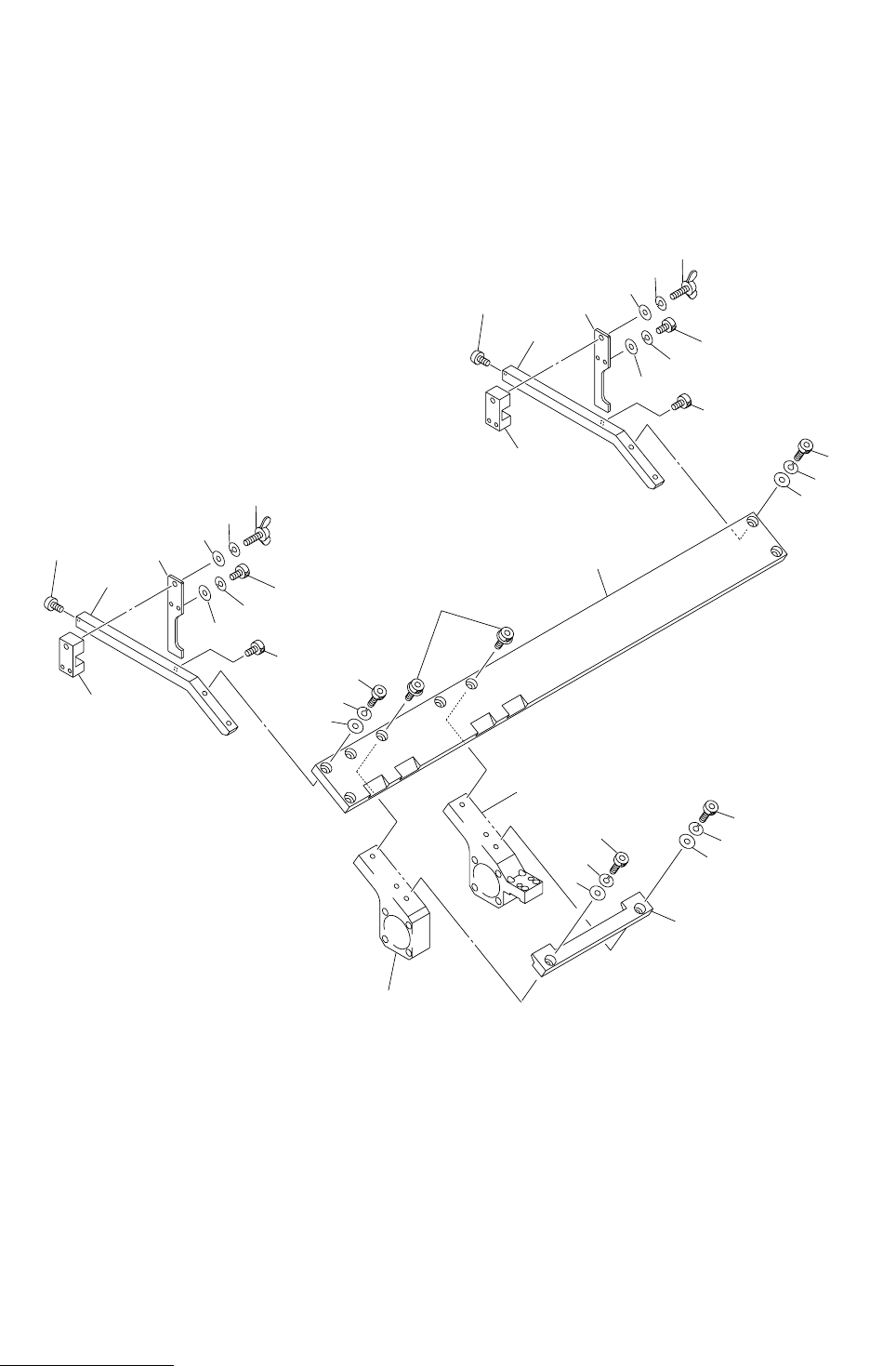

Fig. 9-4 ㅍࠅ╀ Transfer Rod
2
2-1
6-1
See Fig.9-1
Key No.6
See Fig.9-1
Key No.6-1
3
4
6
3
4
6
1
7
8
9
10
11
12
13
14
15
16
3
4
5
3
4
5
1
7
8
9
10
11
12
13
14
15
16
MODEL TCM-3700-2
0109-001
183
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
9-4
1 630 065 4202 STAY 2 739F--01B-023
2 630 084 4139 PLATE(FEED) 1 739F--01B-022
2 -1 630 065 4219 GUIDE(FEED) 1 739F--01B-033
3 411 141 4107 WASHER V 5X10X1 6 FW5
4 411 141 6705 WASHER SPR 5 6 SW5
5 630 000 7787 BOLT,HEX-SCT 4 M5X25
6 630 000 7787 BOLT,HEX-SCT 2 M5X25
6 -1 630 008 1213 BOLT,HEX-SCT 2 739F--01H-032
7 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
8 630 005 6525 BLOCK 2 739F--01B-024
9 630 057 7068 PLATE(PUSH) 2 739F--01B-025
10 411 141 4008 WASHER V 4X9X0.8 4 FW4
11 411 141 2905 WASHER SPR 4 4 SW4
12 630 000 7633 BOLT,HEX-SCT 4 M4X12
13 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
14 411 141 3001 WASHER SPR 6 2 SW6
15 411 140 6003 BOLT WING 6X20 2 739F--01H-026
16 630 000 7503 BOLT,HEX-SCT 2 M3X6
