MODEL TCM-3700-2 0109-001 206 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-6 ᓮࡏ࠶ࠢࠬ Control Box B 2 45-4 45-3 45-2 45-1 45-9 45-8 45-1 46 90 47 90-1 74 74-1 73 73-1 69 68 67 71 85 85-1 89-1 48 49 50 31-1 32 33 34 37 106 107 108 109 4…
MODEL TCM-3700-2
0109-001
205
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-5
121 630 094 5720 RESISTOR,SPECIAL 1 R5 739BD-01D-716
122 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
123 411 008 1706 WASHER SPR 4 2 SW4 F
124 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
125 630 094 2859 COVER 1 739BD-01V-011
126 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
127 411 008 1706 WASHER SPR 4 2 SW4 F
128 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
130 402 082 4608 WIRE WOUND 470 JB 10W 3 R2, R3, R4 739BD-01D-710
131 630 000 1150 ACCESSORY,WIRING 3
132 411 042 0703 SCR PAN 3X8 3 M3X8 PAN
MODEL TCM-3700-2
0109-001
206
㔚᳇ᓮㇱ ELECTRICAL SECTION

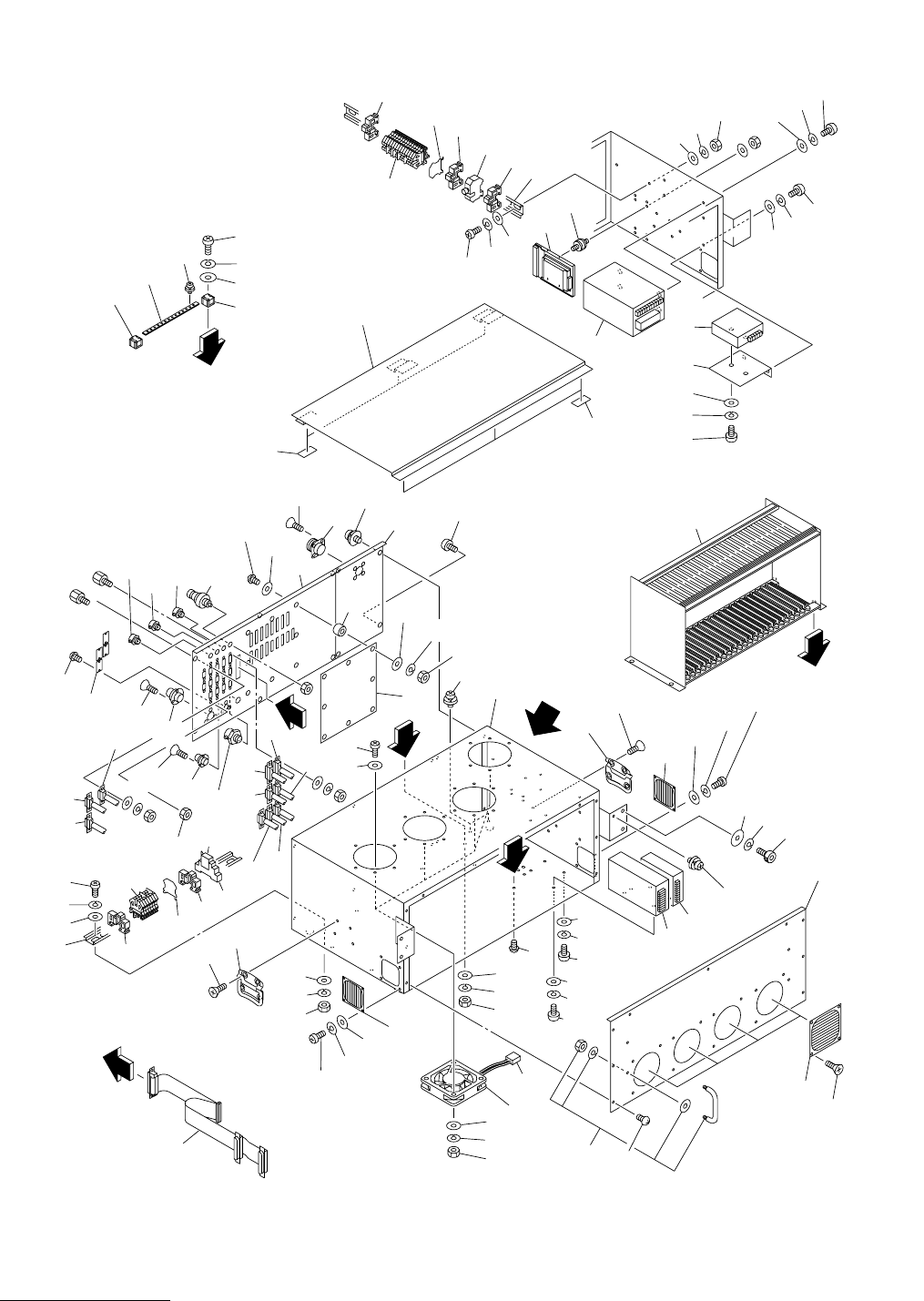

Fig.11-6 ᓮࡏ࠶ࠢࠬ Control Box
B
2
45-4
45-3
45-2
45-1
45-9
45-8
45-1
46
90
47
90-1
74
74-1
73
73-1
69
68
67
71
85
85-1
89-1
48
49
50
31-1
32
33
34
37
106
107
108
109
42
41
39
39
50-3
1
50-2
50-1
50-1
70
32
33
92
91
66
34-1
56
55
57
10
9
59
58
54
65
C
D
C
35
.
36
38
.
88
89
53
60
87
21
20-4
20-3
20-2
20-1
20
22
23
31-2
32
28
29
32
33
34-1
33
34
24
37
38
121
122
122
.
36
43
44
.
43-1
35
.
39
39
DETAIL"A"
25
26
27
102
103
111
101
112
B
3
15-1
15-2
15-3
45-5
45-6
45-7
93
106
91
92
107
108
109
94
95
96
15
16
A
8
8-1
45
11
12
13
D
17
18
19
TCM-3700-2
TCM-3500Z-2
Fig.11-6
MODEL TCM-3700-2
0109-001
207
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-6
1 630 094 2835 BOX 1 739C--01V-001
2 630 049 2958 RACK,P.C.B 1 739C--01D-001
3 411 113 9703 SCR TRS 6X10 4 M6X10 TRS
8 630 053 2883 MOTOR,AC 4 FAN1, FAN2, FAN3, FAN4,
R87F-A1A13HP 739C--01D-011
8 -1 630 051 8481 ACCESSORY,MOT-M 4 739C--01D-012
9 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
10 411 113 2209 SCR PAN 4X16 8 M4X16 PAN
11 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
12 411 008 1706 WASHER SPR 4 8 SW4 F
13 411 054 8506 NUT HEX 4 8 M4 F
15 630 091 1602 UNIT,POWER 1 PSU2A, PAA100F-12N
739C--01D-059
15 -1 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
15 -2 411 008 1706 WASHER SPR 4 3 SW4 F
15 -3 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
16 630 049 1449 UNIT,POWER 1 PSU2B, P15E-12-N
739C--01D-063
17 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
18 411 086 4408 WASHER SPR 3 2 SW3 F
19 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
20 630 049 0626 UNIT,POWER 1 PSU3, RWS15A-5A
739C--01D-004
20 -1 630 072 4493 SUPPORT 1 739C--01V-005
20 -2 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
20 -3 411 086 4408 WASHER SPR 3 2 SW3 F
20 -4 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
21 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
22 411 008 1706 WASHER SPR 4 2 SW4 F
23 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
24 630 085 4121 UNIT,POWER 1 PSU1, PAA -300F-5
739C--01D-002
25 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
26 411 008 1706 WASHER SPR 4 4 SW4 F
27 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
28 630 080 4447 UNIT,I/O(SDD) 1 HDD1, #A-29-403 PC-S-DD12B-SP2
739C--01D-009
29 630 033 9505 MECH PARTS(RUBBER DAMPER) 4 739C--01D-010
32 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
33 411 008 1706 WASHER SPR 4 8 SW4 F
34 411 043 5004 SCR PAN 4X8 4 M4X8 PAN
34 -1 411 054 8506 NUT HEX 4 4 M4 F
35 630 049 3801 TERMINAL 20 739C--01D-051
36 630 049 3702 ACCESSORY,WIRING 7 739C--01D-055
37 630 049 3733 ACCESSORY,WIRING 2 739C--01D-054
39 630 049 3672 BRACKET,WIRING 4 739C--01D-018
41 630 049 2064 SOCKET 1 739C--01D-062
42 630 049 2101 RELAY 1 CR35 739C--01D-061
43 630 049 1173 FUSE HOLDER 1 739C--01D-057
43 -1 423 022 8104 FUSE 250V 2A 1 F119 739C--01D-058
