MODEL TCM-3700-2 0109-001 213 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 11 - 8 15 630 049 5034 CORD 1 CN 15 -C N1 00 739FB-01D-045 16 630 084 6379 CORD 1 CN 16 -C N1 01 739FB-01D-046 17 630 064 1523 CORD 1 CN…
MODEL TCM-3700-2
0109-001
212
㔚᳇ᓮㇱ ELECTRICAL SECTION

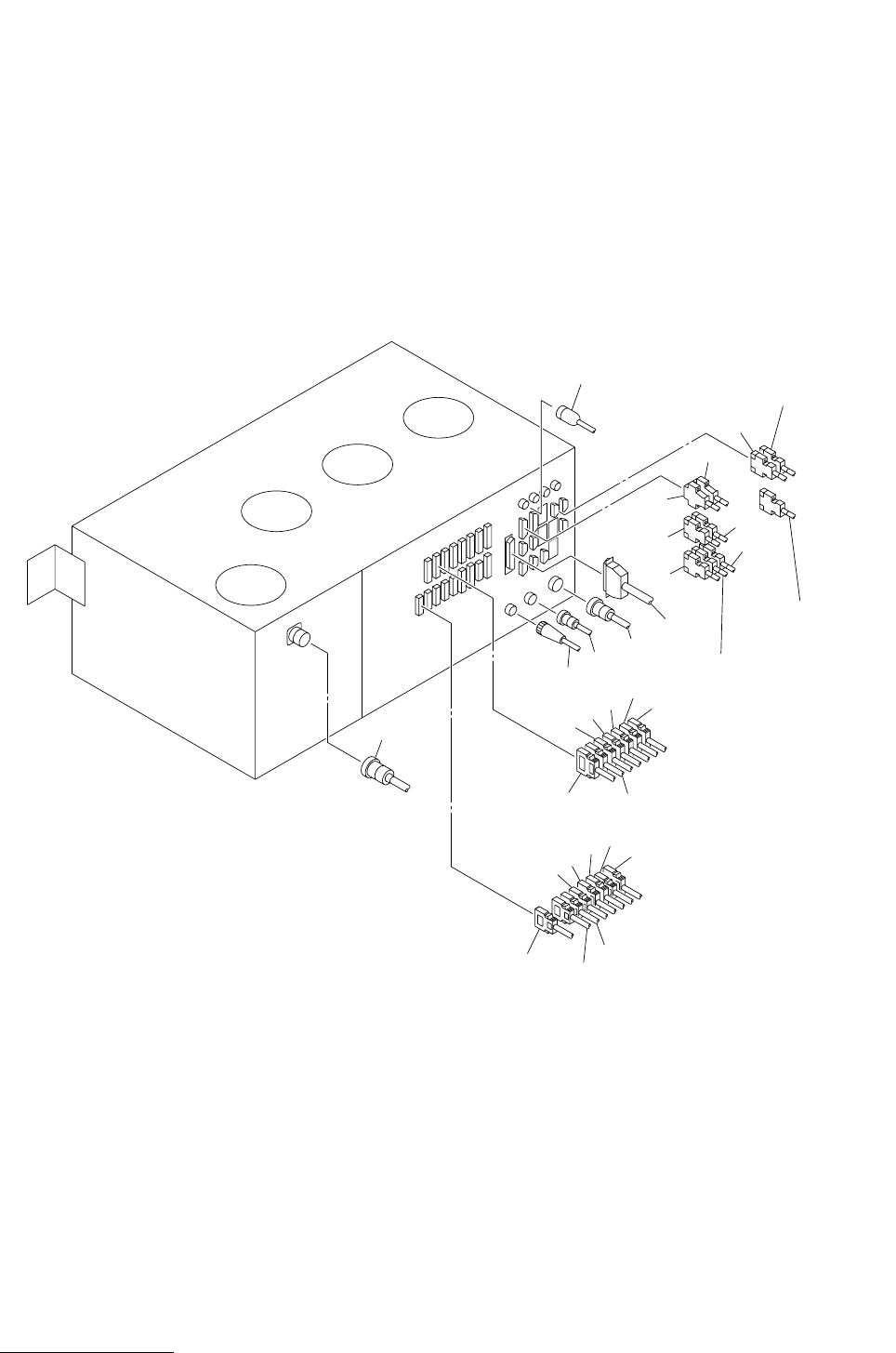

Fig.11-8 ᓮࡏ࠶ࠢࠬ㈩✢ Control Box Wiring
71
19
18
17
16
15
26
25
24
83
22
21 20
28
30
27
85
74
73
55
57
59
70
58
60
54
65
See Fig.11-12
Key No.88
See Fig.11-14
Key No.26
See Fig.11-12
Key No.89
66
MODEL TCM-3700-2
0109-001
213
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-8
15 630 049 5034 CORD 1 CN15-CN100 739FB-01D-045
16 630 084 6379 CORD 1 CN16-CN101 739FB-01D-046
17 630 064 1523 CORD 1 CN17-CN102 739FB-01D-047
18 630 084 6379 CORD 1 CN18-CN103 739FB-01D-046
19 630 064 1516 CORD 1 CN19-CN104 739FB-01D-049
20 630 084 5952 CORD 1 CN20-CN105 739FB-01D-050
21 630 084 5969 CORD 1 CN21-CN106 739FB-01D-051
22 630 049 5102 CORD 1 CN22-CN107, 125 739FB-01D-052
24 630 091 4191 CORD 1 CN24-CN135, 136 739FB-01D-053
25 630 091 4184 CORD 1 CN25-CN133, 134 739FB-01D-054
26 630 095 3411 CORD 1 CN26-CN130 739FB-01D-055
27 630 094 7700 CORD 1 CN27-CN131, 132 739FB-01D-056
28 630 084 6416 CORD 1 CN28- 739FB-01D-057
30 630 049 5171 CORD 1 CN30- 739FB-01D-140
54 630 084 6232 CORD 1 CN54-CN150 739FB-01D-064
55 630 084 6256 CORD 1 CN55-CN149 739FB-01D-063
57 630 049 7595 CORD 1 CN57- 739FB-01D-062
58 630 084 6225 CORD 1 CN58-CN117 739FB-01D-066
59 630 084 6249 CORD 1 CN59-CN118 739FB-01D-065
65 630 065 8255 CORD 1 CN65-CN205 739FB-01D-150
66 630 064 1479 CORD 1 CN66-CN148 739FB-01D-060
71 630 049 3269 CONNECTOR 1 CN71- 739FB-01D-033
73 630 054 8709 CONNECTOR 1 CN73- 739FB-01D-102
74 630 049 3238 CONNECTOR 1 CN74- 739FB-01D-025
83 630 084 6034 CORD 1 CN83-CN183 739FB-01D-126
85 630 004 6267 CONNECTOR 1 CN85- 739FB-01D-127
MODEL TCM-3700-2
0109-001
214
㔚᳇ᓮㇱ ELECTRICAL SECTION

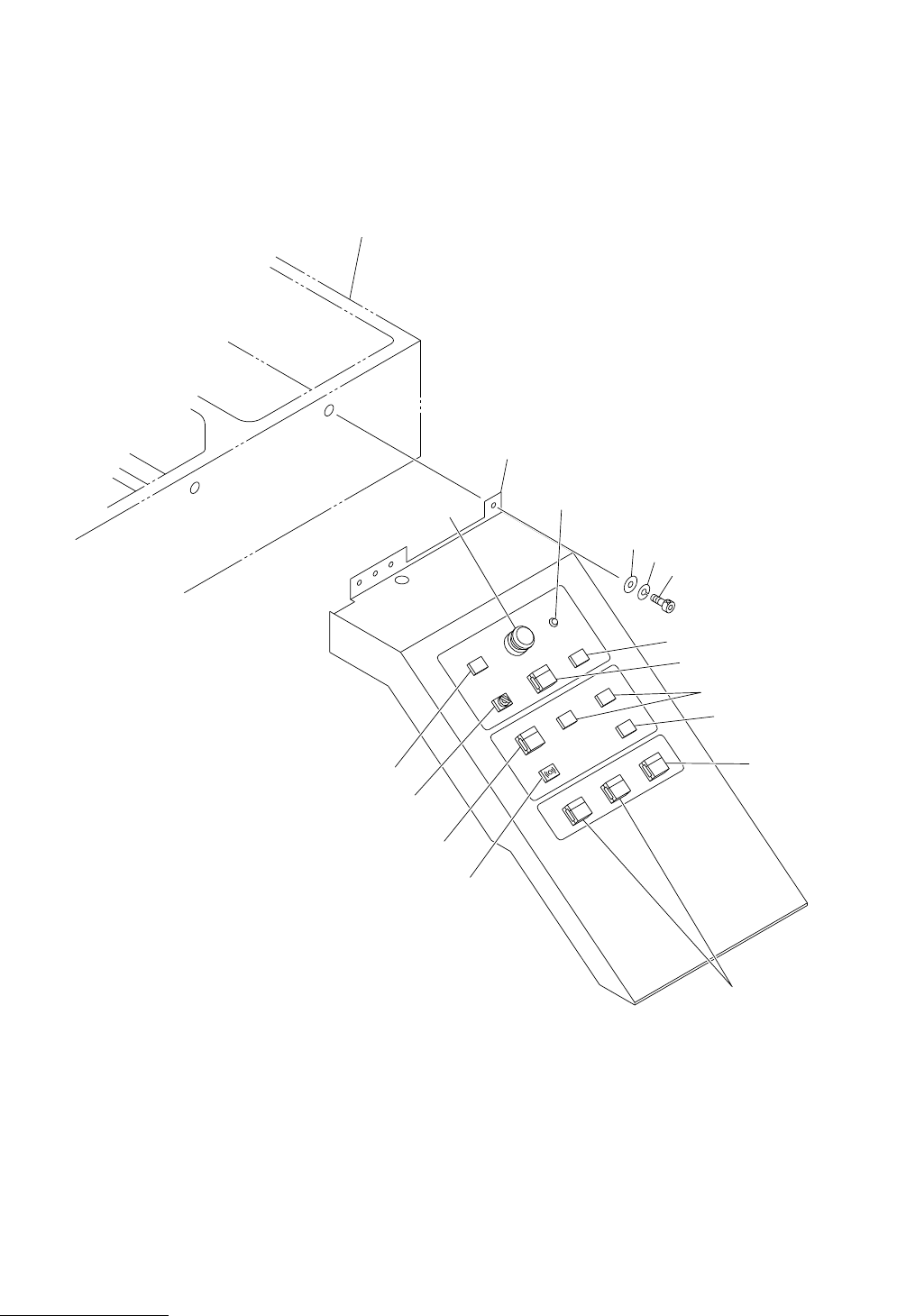

Fig.11-10 ೨㕙ᠲࡄࡀ࡞ Front Operation Panel
41
27
24
18
23
25
.
.
.
21 22
19
..
20
12 13
.
14
16 17
26
15
11
42
1
43
28
See Fig.1-1
Key No.13
