MODEL TCM-3700-2 0109-001 217 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 11 - 11 1 630 085 7535 B O X 1 739DD-01V-001 2 630 051 6173 HA NDLE 1 7 39 D D - 01 D - 0 18 3 4 11 1 4 1 4 5 0 3 WASHER V 8X17X1.6 2 FW…
MODEL TCM-3700-2
0109-001
216
㔚᳇ᓮㇱ ELECTRICAL SECTION

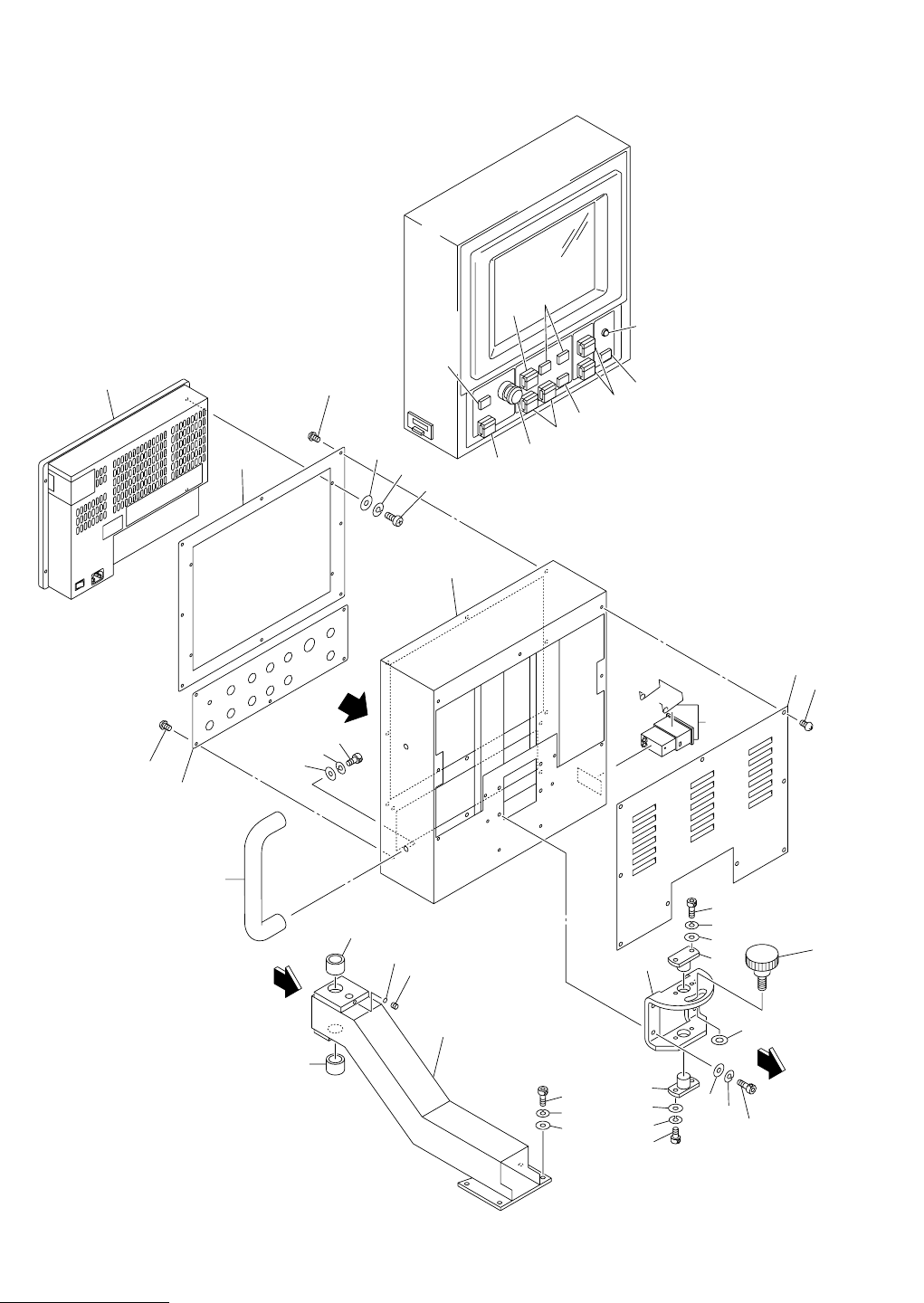

Fig.11-11 ᓟ㕙ᠲࡄࡀ࡞ Rear Operation Panel
7
6-2
6-3
6-4
24
14
23
18
27
28
25
.
21
22
.
16
17
.
11
12
.
13
.
19
20
.
6-1
6
29
10
3
2
4
5
1
30
44
49
48
52
53
54
44
42
B
42
50
51
41
56
55
57
43
45
46
47
B
45
46
47
32
31
A
DETAIL"A"
TCM-3700-2
TCM-3700
Fig.11-11
MODEL TCM-3700-2
0109-001
217
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-11
1 630 085 7535 BOX 1 739DD-01V-001
2 630 051 6173 HANDLE 1 739DD-01D-018
3 411 141 4503 WASHER V 8X17X1.6 2 FW8
4 411 141 3100 WASHER SPR 8 2 SW8
5 630 000 8005 BOLT,HEX-SCT 2 M8X16
6 630 086 8395 UNIT,DISPLAY 1 #UT3-E1AE-D-M 739DD-01D-014
6 -1 630 085 7580 PANEL 1 739DD-01V-008
6 -2 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
6 -3 411 086 4408 WASHER SPR 3 4 SW3 F
6 -4 411 040 6202 SCR PAN 3X10 4 M3X10 PAN
7 411 140 8304 SCR BIN 4X10 8 M4X10 BIN
10 630 058 5728 PANEL 1 739DD-01V-002
11 630 033 4609 SWITCH,BUTTON 1 PB2 739DD-01D-001
12 630 033 4586 DISPLAY ELEMENT 1 LED8 739DD-01D-002
13 630 033 4593 ACCESSORY,SW 1 739DD-01D-003
14 630 066 7042 SWITCH,BUTTON 1 PB4 739DD-01D-004
16 630 000 2713 SWITCH,BUTTON 1 PB14(LED9) 739DD-01D-006
17 630 000 0382 ACCESSORY,SW 1 739DD-01D-009
18 630 000 2515 SWITCH,BUTTON 2 PB18, PB19 739DD-01D-005
19 630 000 2713 SWITCH,BUTTON 2 PB15(LED10), PB22(LED11)
739DD-01D-006
20 630 000 0382 ACCESSORY,SW 2 739DD-01D-009
21 630 000 2508 SWITCH,BUTTON 2 PB16, PB17 739DD-01D-012
22 630 000 0382 ACCESSORY,SW 2 739DD-01D-009
23 630 007 6066 SWITCH,BUTTON 1 PB20 739DD-01D-007
24 630 007 6066 SWITCH,BUTTON 1 PB21 739DD-01D-007
25 630 000 0382 ACCESSORY,SW 1 739DD-01D-009
27 630 000 2744 SWITCH,BUTTON 1 PB23(LED12) 739DD-01D-008
28 407 035 4704 LED SLP-721F 1 LED13 739DD-01D-011
29 411 140 8304 SCR BIN 4X10 5 M4X10 BIN
30 630 000 5059 COUNTER 1 MCT 739DD-01D-013
31 630 085 7566 COVER 1 739DD-01V-006
32 411 113 9109 SCR TRS 5X10 9 M5X10 TRS
41 630 057 8010 SUPPORT 1 739DD-01V-004
42 630 051 6180 BUSH,BEARING 2 739DD-01D-015
43 630 052 3041 BRACKET 1 739DD-01V-003
44 630 051 5923 PIN,LOCATE 2 739DD-01V-005
45 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
46 411 141 3001 WASHER SPR 6 4 SW6
47 630 000 7886 BOLT,HEX-SCT 4 M6X16
48 630 051 6166 MECH PARTS(DRYMET WASHER) 1 739DD-01D-016
49 630 051 6159 MECH PARTS(7LOBE KNOB) 1 739DD-01D-017
50 630 041 6770 COLLAR 1 739DD-01V-007
51 630 000 8944 SET SCREW 1 M5X6 SET
52 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
53 411 141 3001 WASHER SPR 6 4 SW6
54 630 000 7886 BOLT,HEX-SCT 4 M6X16
55 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
56 411 141 3001 WASHER SPR 6 4 SW6
57 630 000 7893 BOLT,HEX-SCT 4 M6X20
MODEL TCM-3700-2
0109-001
218
㔚᳇ᓮㇱ ELECTRICAL SECTION

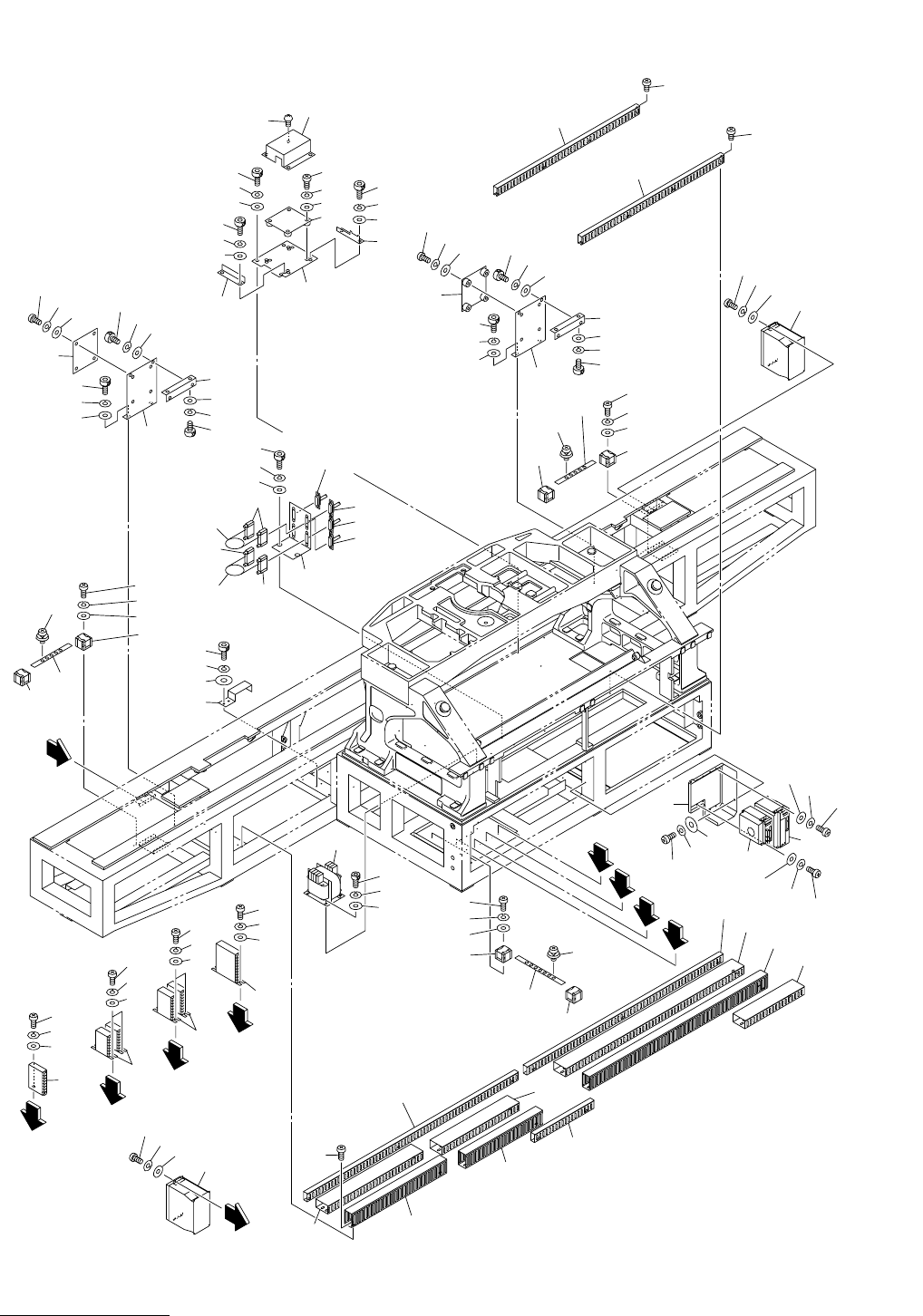

Fig.11-12 ᯏ᪾ᑫࠅ 1 Miscellaneous Parts-1
TCM-3700-2
Fig.11-12
73
73
71
32
31
30
29
28
27
26-1
32
31
30
45
44
43
55
54
53
50
49
48
47
22
21
32
31
30
29
28
27
26
25
23
24
97
96
95
92
93
92
93
92
87
88
89
91
69-3
69-2
69-1
10-4
10-3
10-2
10-1
10-6
10-5
10-1
E
14
13
12
59
58
57
19-4
19-3
19-2
19-1
19-6
A
B
C
102
101
6-1
6
6-2
6-3
5-1
5-2
5-3
5
103
104
D
19-1
19-5
56
14
13
12
14
13
12
11-3
11-2
15-3
15-2
15-1
15
11-1
A
68
66
61
61-1
62-1
62
65
57
63
63-1
64
B
4
3
2
1
E
C
D
69
See Fig.11-14
Key No.7
32
31
30
41
42
50
49
48
10-4
4
3
2
1
10-3
10-2
10-1
10-6
10-5
10-1
46
52
51
25
21
22
23
24
72
