MODEL TCM-3700-2 0109-001 228 㔚᳇ᓮㇱ ELECTRICAL SECTION Fig.11-15 ᓟ㕙ࠦࡦ࠰࡞ Rear Console 20 1 10 9 7 8 See Fig.13-1 Key No.10
MODEL TCM-3700-2
0109-001
227
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-14
1 630 087 7496 BOX 1 739FG-01V-001
2 630 049 1098 SWITCH,TOGGLE 2 SW1, SW2 739FG-01D-001
7 630 064 1509 CORD 1 CN116-CN190 739FB-01D-122
8 630 000 2744 SWITCH,BUTTON 1 PB30 739FG-01D-008
9 407 035 4704 LED SLP-721F 1 LED17 739FG-01D-011
21 630 057 0694 UNIT,I/O 1 FDD1, #FD-05HGS-750
739FG-01D-006
22 630 036 4736 MECH PARTS 4 739FG-01V-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 411 140 9905 NUT HEX 3 4 M3
26 630 064 1486 CORD 1 CN178-CN87 739FB-01D-125
27 630 060 5730 SWITCH,SELECTOR 1 SW4 739FG-01D-012
27 -1 630 061 2325 NAME PLATE,NOTICE 2 739FG-01D-014
28 630 001 0237 WASHER 2 BW6
29 411 141 3001 WASHER SPR 6 2 SW6
30 630 000 7879 BOLT,HEX-SCT 2 M6X12
31 630 065 2383 COVER 1 739FG-01V-003
32 411 113 9109 SCR TRS 5X10 2 M5X10 TRS
35 411 087 1109 WASHER IN TW 5 1
36 411 036 8609 SCR PAN+SW+W 5X12 1
50 630 060 1992 NAME PLATE,PARTS 1 739FG-01D-010
MODEL TCM-3700-2
0109-001
228
㔚᳇ᓮㇱ ELECTRICAL SECTION

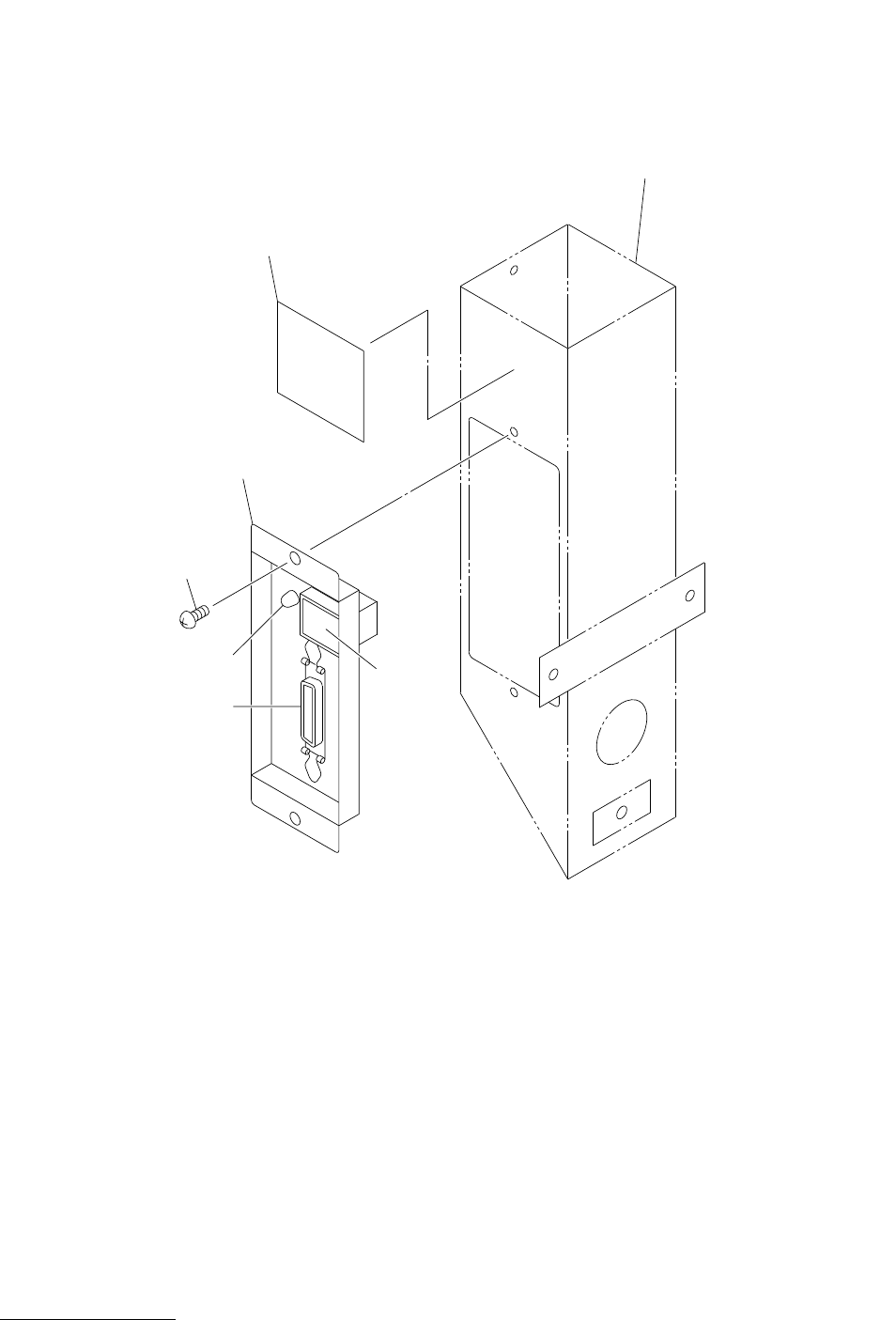

Fig.11-15 ᓟ㕙ࠦࡦ࠰࡞ Rear Console
20
1
10
9
7
8
See Fig.13-1
Key No.10
MODEL TCM-3700-2
0109-001
229
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-15
1 630 085 8334 BRACKET 1 739FG-01V-004
7 630 058 9191 CORD 1 CN120-CN192 739FB-01D-124
8 630 000 2744 SWITCH,BUTTON 1 PB31 739FG-01D-008
9 407 035 4704 LED SLP-721F 1 LED18 739FG-01D-011
10 411 140 8007 SCR TRS 5X6 2 M5X6 TRS
20 630 060 1619 NAME PLATE,PARTS 1 739FG-01D-013
