MODEL TCM-3700-2
0109-001
234
㔚᳇೙ᓮㇱ ELECTRICAL SECTION

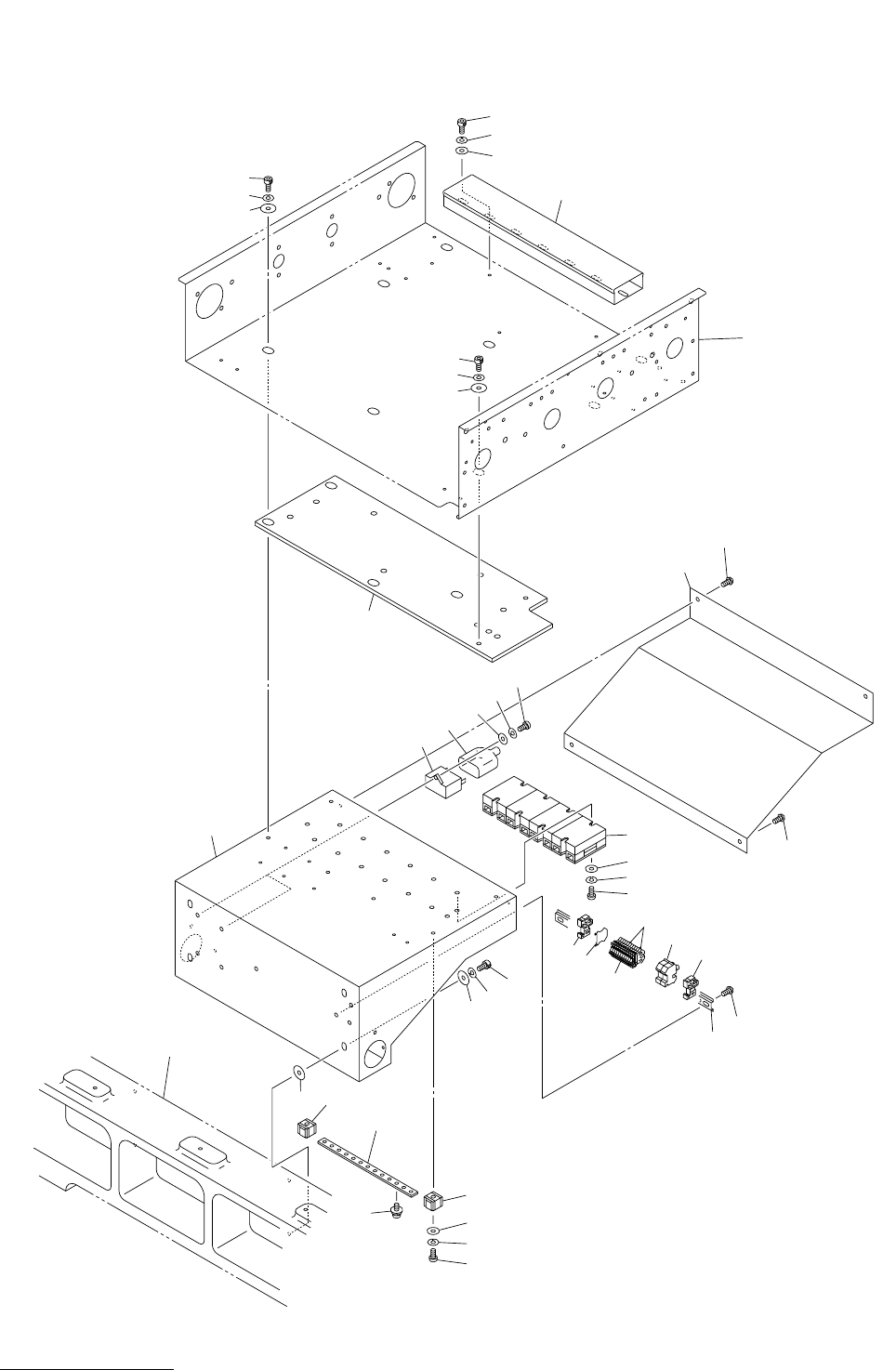

Fig.11-18 ࠦࡦࡌࠕ㚟േ࿁〝㧸 Conveyor Driver Circuit L
8
7
10
98
97
96
99
8
7
9
23
21
52-1
52
2
1
57
58
.
.
58-1
55
54
57
26
26-1
27
28
29
3
4
5
63
62
64
61
65
92
66
61
91
92
53 56
24
22
6
See Fig.1-1
Key No.11
See Fig.7-1
Key No.2
TCM-3700-2
TCM-3700
Fig.11-18
MODEL TCM-3700-2
0109-001
235
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-18
1 630 001 0237 WASHER 4 739G--01H-025
2 630 084 4443 BRACKET(TB) 1 739G--01B-045
3 630 001 0220 WASHER 4 BW5
4 411 141 6705 WASHER SPR 5 4 SW5
5 630 000 7770 BOLT,HEX-SCT 4 M5X20
6 630 084 4467 PLATE 1 739G--01B-053
7 630 001 0237 WASHER 3 BW6
8 411 141 3001 WASHER SPR 6 3 SW6
9 630 000 7893 BOLT,HEX-SCT 2 M6X20
10 630 000 7886 BOLT,HEX-SCT 1 M6X16
21 630 049 1210 RELAY 4 SSR1, SSR2, SSR5, SSR103
739FD-01D-001
22 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
23 411 008 1706 WASHER SPR 4 8 SW4 F
24 411 042 3001 SCR PAN 4X10 8 M4X10 PAN
27 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
28 411 008 1706 WASHER SPR 4 2 SW4 F
29 411 113 1400 SCR PAN 4X6 2 M4X6 PAN
52 -1 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
53 630 049 3801 TERMINAL 10 739FD-01D-008
54 630 049 3702 ACCESSORY,WIRING 2 739FD-01D-006
55 630 049 3733 ACCESSORY,WIRING 1 739FD-01D-005
57 630 049 3672 BRACKET,WIRING 2 739FD-01D-007
58 630 049 1173 FUSE HOLDER 2 739FD-01D-012
58 -1 423 022 8203 FUSE 250V 3.15A 2 F115, F117 739FD-01D-013
61 630 051 5763 WIRE PARTS 2 739FD-01D-020
62 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
63 411 008 1706 WASHER SPR 4 2 SW4 F
64 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
66 411 036 8609 SCR PAN+SW+W 5X12 9
91 630 084 4450 COVER(TB) 1 739G--01B-046
92 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
97 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
98 411 008 1706 WASHER SPR 4 2 SW4 F
99 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
MODEL TCM-3700-2
0109-001
236
㔚᳇೙ᓮㇱ ELECTRICAL SECTION

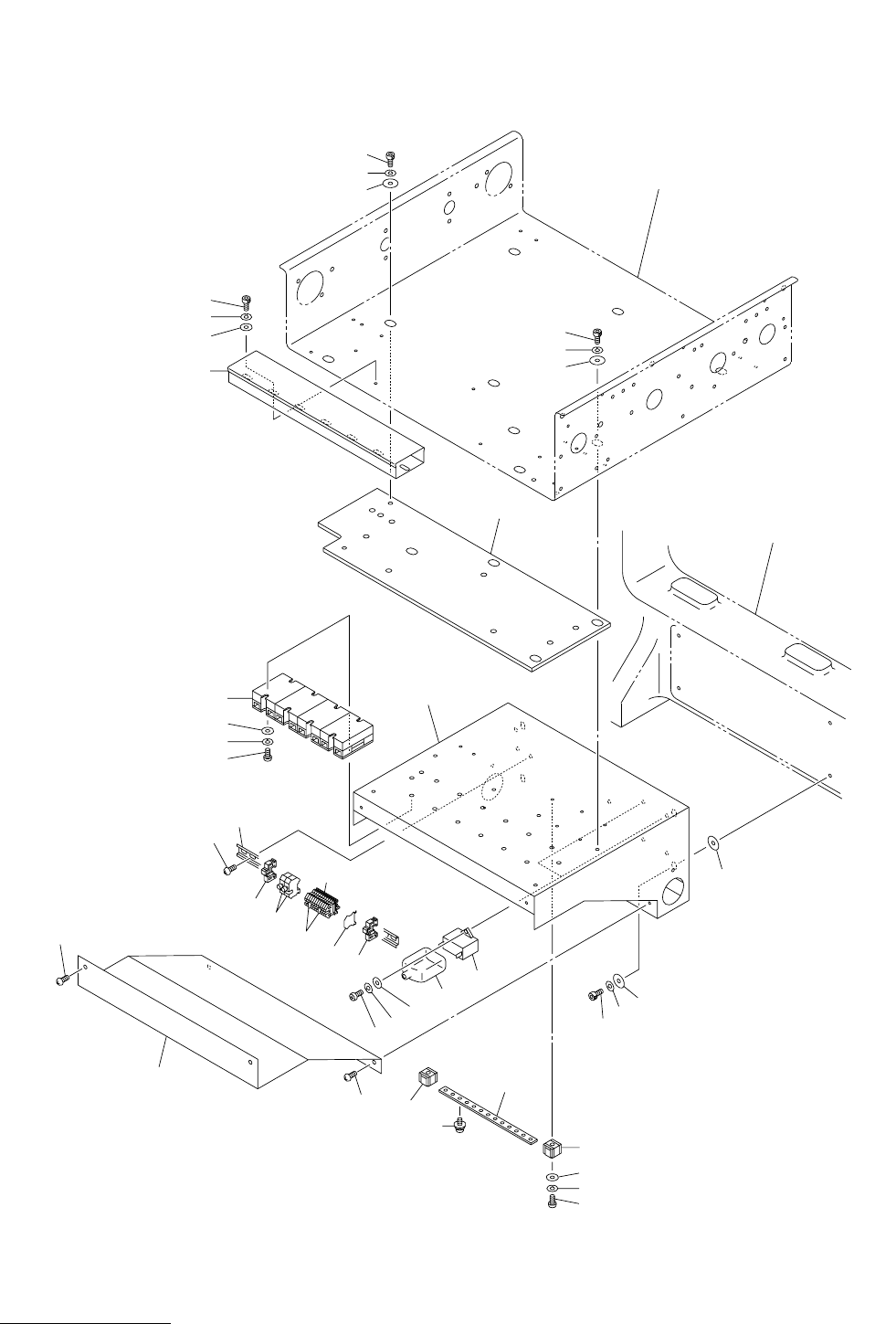

Fig.11-19 ࠦࡦࡌࠕ㚟േ࿁〝㧾 Conveyor Driver Circuit R
See Fig.8-1
Key No.2
See Fig.1-1
Key No.12
9
8
7
10
8
7
6
92
91
92
29
28
27
26-1
26
2
21
22
23
24
53
56
.
58
54
58-1
.
57
55
57
52
3
1
61
65
66
61
62
63
64
4
5
52-1
99
98
97
96
TCM-3700-2
TCM-3700
Fig.11-19
