P-199-001e - 第248页
MODEL TCM-3700-2 0109-001 246 ࠞࡃㇱ COVER SECTION Fig.12-2 ᧄࠞࡃ Body Cover 41 13 14 12 29 28 21 22 23 24 26 27 29 30 9 8 7 31 1 5 3 4 2 32 30 11 14 10 See Fig.1-2 Key No.58 42 43
MODEL TCM-3700-2
0109-001
245
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
12-1
1 630 058 2468 BRACKET 1 739R--01B-108
2 630 001 0237 WASHER 2 BW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7916 BOLT,HEX-SCT 2 M6X30
6 630 058 8644 BRACKET 2 739R--01B-112
7 630 050 7492 BRACKET 2 739R--01B-113
8 411 141 4107 WASHER V 5X10X1 8 FW5
9 411 141 6705 WASHER SPR 5 8 SW5
10 630 000 7756 BOLT,HEX-SCT 8 M5X12
11 630 085 4435 COVER(BC) 1 739R--01B-110
12 630 084 4566 BRACKET 1 739R--01B-106
13 630 001 0220 WASHER 10 BW5
14 411 141 6705 WASHER SPR 5 10 SW5
15 630 000 7756 BOLT,HEX-SCT 10 M5X12
16 630 001 0220 WASHER 2 BW5
17 411 141 6705 WASHER SPR 5 2 SW5
18 630 000 7756 BOLT,HEX-SCT 2 M5X12
30 630 030 0031 MECH PARTS(BRACKET) 8 739R--01H-013
31 411 141 4107 WASHER V 5X10X1 16 FW5
32 411 141 6705 WASHER SPR 5 16 SW5
33 630 000 7763 BOLT,HEX-SCT 16 M5X16
34 630 084 4573 COVER 1 739R--01B-107
35 411 113 9109 SCR TRS 5X10 6 M5X10 TRS
41 630 028 9909 MECH PARTS(URETHANES) 2 739R--01H-004
42 630 038 9698 COLLAR 2 739R--01B-105
43 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
44 411 141 3001 WASHER SPR 6 2 SW6
45 630 000 7916 BOLT,HEX-SCT 2 M6X30
MODEL TCM-3700-2
0109-001
246

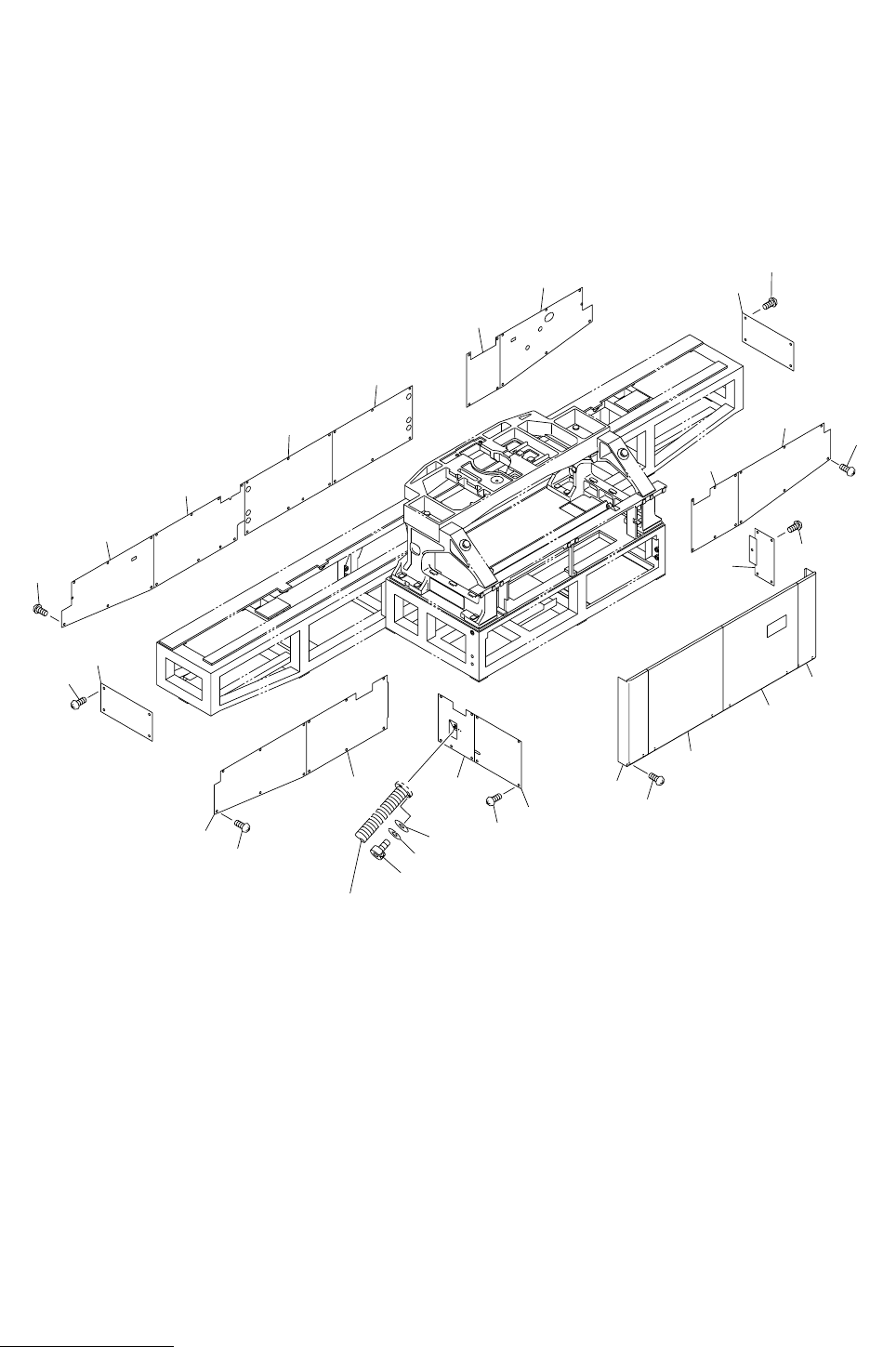

ࠞࡃㇱ COVER SECTION
Fig.12-2 ᧄࠞࡃ Body Cover
41
13
14
12
29
28
21
22
23
24
26
27
29
30
9
8
7
31
1
5
3
4
2
32
30
11
14
10
See Fig.1-2
Key No.58
42
43
MODEL TCM-3700-2
0109-001
247
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
12-2
1 630 041 9498 COVER 1 739R--01B-117
2 630 041 9504 COVER 1 739R--01B-118
3 630 065 7333 COVER 1 739R--01B-119
4 630 064 8775 COVER(MR) 1 739R--01B-120
5 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
7 630 085 4473 COVER(RFR) 1 739R--01B-123
8 630 085 4466 COVER(RFR) 1 739R--01B-122
9 411 113 9109 SCR TRS 5X10 11 M5X10 TRS
10 630 064 8799 COVER(DUCT) 1 739R--01B-133
11 630 085 4503 COVER(FSL) 1 739R--01B-126
12 630 085 4480 COVER(RFL) 1 739R--01B-124
13 630 085 4497 COVER(RFL) 1 739R--01B-125
14 411 113 9109 SCR TRS 5X10 21 M5X10 TRS
21 630 094 5928 COVER 1 739R--01B-127
22 630 085 4527 COVER(RBL) 1 739R--01B-128
23 630 094 5935 COVER 1 739R--01B-129
24 630 094 5942 COVER 1 739R--01B-130
26 630 085 4558 COVER(RBR) 1 739R--01B-131
27 630 094 5959 COVER 1 739R--01B-132
28 411 113 9109 SCR TRS 5X10 39 M5X10 TRS
29 630 085 4572 COVER(RS) 2 739R--01B-134
30 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
31 630 085 4596 COVER 1 739R--01B-138
32 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
41 411 141 4305 WASHER V 6X12.5X1.6 3 FW6
42 411 141 3001 WASHER SPR 6 3 SW6
43 630 000 7893 BOLT,HEX-SCT 3 M6X20
