P-199-001e - 第267页
MODEL TCM-3700-2 0109-001 265 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 13-2 51 630 085 4756 CO VE R 1 739RB-01B-028 52 630 085 4763 CO VE R 2 739RB-01B-029 53 630 085 4787 CO VE R 1 739RB-01B-031 54 630 085 …
MODEL TCM-3700-2
0109-001
264

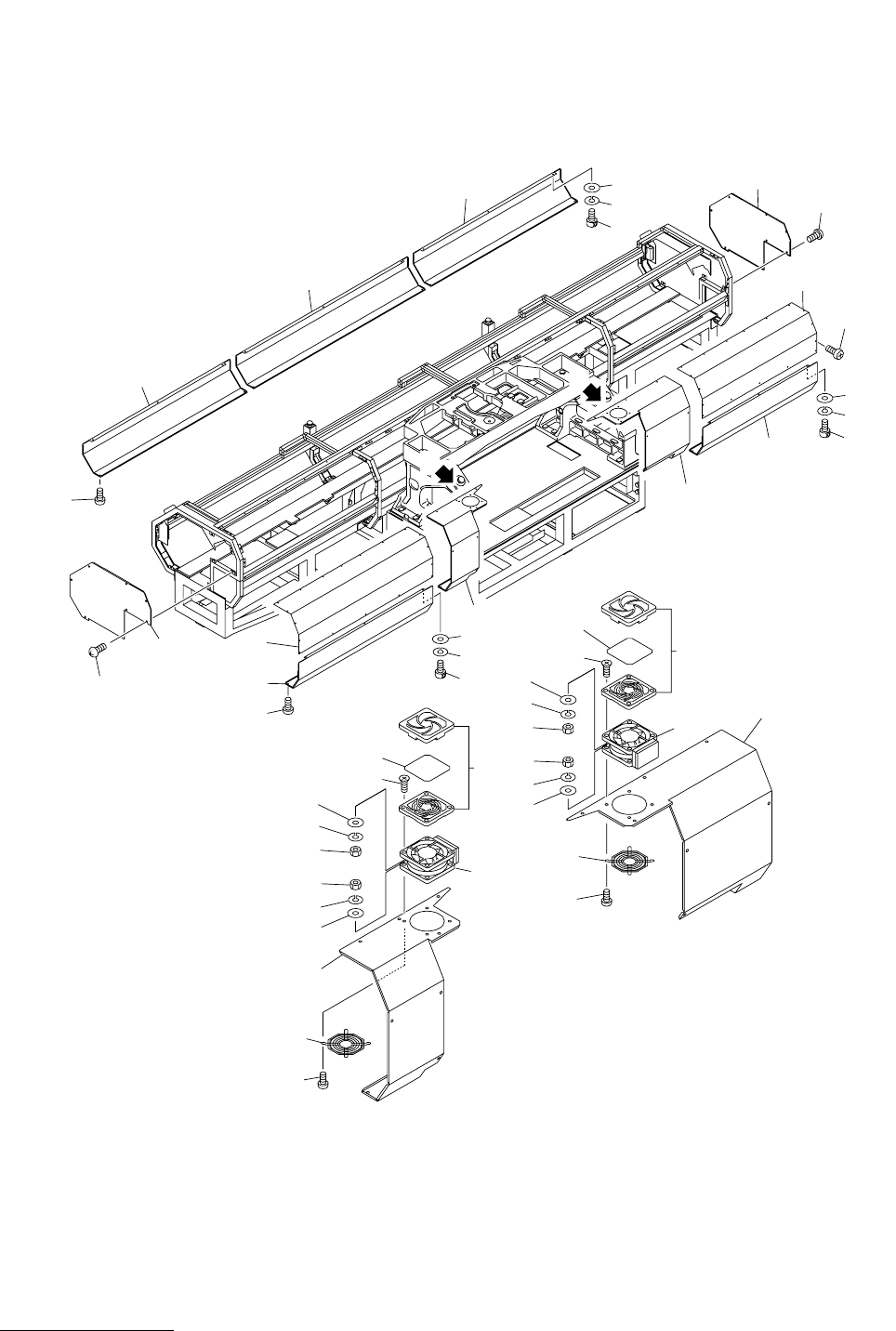

ᓟ㕙ࠞࡃㇱ REAR COVER SECTION
Fig.13-2 ᓟ㕙ࠞࡃ Rear Cover
94
93
92
63
85
91
87
67
53
62
55
63
64
54
56
57
67
61
82
88
89
DETAIL"A"
DETAIL"B"
82
94
93
92
64
85
91
87
86
84
83
88
89
84
86
83
55
67
65
67
66
56
57
55
52
51
52
67
56
57
B
A
MODEL TCM-3700-2
0109-001
265
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
13-2
51 630 085 4756 COVER 1 739RB-01B-028
52 630 085 4763 COVER 2 739RB-01B-029
53 630 085 4787 COVER 1 739RB-01B-031
54 630 085 4770 COVER 1 739RB-01B-030
55 630 001 0220 WASHER 15 BW5
56 411 141 6705 WASHER SPR 5 15 SW5
57 630 000 7756 BOLT,HEX-SCT 15 M5X12
61 630 085 4824 COVER 1 739RB-01B-041
62 630 060 0490 COVER 1 739RB-01B-035
63 630 085 4800 COVER 1 739RB-01B-037
64 630 085 4794 COVER 1 739RB-01B-036
65 630 060 0483 COVER 1 739RB-01B-034
66 630 085 4817 COVER 1 739RB-01B-040
67 411 113 9109 SCR TRS 5X10 67 M5X10 TRS
82 630 070 3061 MOTOR,AC 2 FAN11, FAN12, MRS16-BUL
739FB-01D-800
83 630 074 6853 ACCESSORY,MOT-M (FILTER) 2 739FB-01D-802
84 630 076 4932 ACCESSORY,MOT-M 2 739FB-01D-803
85 630 068 4292 ACCESSORY,MOT-M 2 739FB-01D-801
86 411 140 7406 SCR FLT 5X20 8 M5X20 FLT
87 411 088 1702 WASHER V 5X10X1 8 FW5 F
88 411 008 2109 WASHER SPR 5 8 SW5 F
89 411 118 8503 NUT HEX 5 8 M5 F
91 411 140 6508 SCR PAN 5X20 8 M5X20 PAN
92 411 088 1702 WASHER V 5X10X1 8 FW5 F
93 411 008 2109 WASHER SPR 5 8 SW5 F
94 411 118 8503 NUT HEX 5 8 M5 F
MODEL TCM-3700-2
0109-001
266
ᓟ㕙ࠞࡃㇱ REAR COVER SECTION
Fig.13-3 ోࠞࡃ Guard Cover
104
105
106
107
122
126
111
112
113
114
115
126
121
102
102
103
103
See Fig.13-4
DETAIL"A"
A
100
100
100
91
99
100
92
100
99
91
100
91
91
100
91
100
91
100
95
99
100
92
99
100
92
92
99
99
100
92
99
100
97
100
100
93
100
96
97
100
98
100
96
99
99
100
99
100
99
100
94
92
100
99
99
100
99
95
99
94
100
99
TCM-3700-2
TCM-3000Z-2
Fig.13-3
