P a g e | 11 UFC Ultra-Fine Cartr idges for work in tight spaces, co mpatible with CV -5200, CV -500 Systems an d Ultra-Fine Sold er Hand piece CV - H2 - UF . Temperature CV -Series Application UFC- 6 Temperature Sensiti…

P a g e | 10

Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs

SMTC-5170

Hoof,

(Bevel/L) 60° x 6.1 mm,

long reach,

(ø x L) 3.05 x 15.24mm

SMTC-0170

SMTC-1170

SMTC-8170V1

SMC-5HF6030S

SMC-6HF6030S

SMC-7HF6030S

SMC-8HF6030S

SMC-9HF6030S SMTC-8170

SMTC-5147

Hoof,

(Bevel/L) 60° x 6.6 mm,

long reach,

(ø x L) 3.3 x 17.78 mm

SMTC-0147

SMTC-1147

SMTC-8147V1

SMC-5HF6033S

SMC-6HF6033S

SMC-7HF6033S

SMC-8HF6033S

SMC-9HF6033S SMTC-8147

Special Rework Cartridges

SMTC-5172

Hook – for fine drag- and point-to-

point soldering on contacts from J-

lead components, bend 30°,

(ø x L) 0.51 x 15.24 mm

SMTC-0172

SMTC-1172

SMTC-8172V1

SMC-5HK0005S

SMC-6HK0005S

SMC-7HK0005S

SMC-8HK0005S

SMC-9HK0005S SMTC-8172

SMTC-5171

Used to remove small components

like 0201 and 0402 components

from a “topside” angle, bent 30°

for work under a microscope,

(ø x L) 0.76 x 16.51 mm

SMTC-0171

SMTC-1171

SMTC-8171V1

SMC-5HK0008S

SMC-6HK0008S

SMC-7HK0008S

SMC-8HK0008S

SMC-9HK0008S SMTC-8171

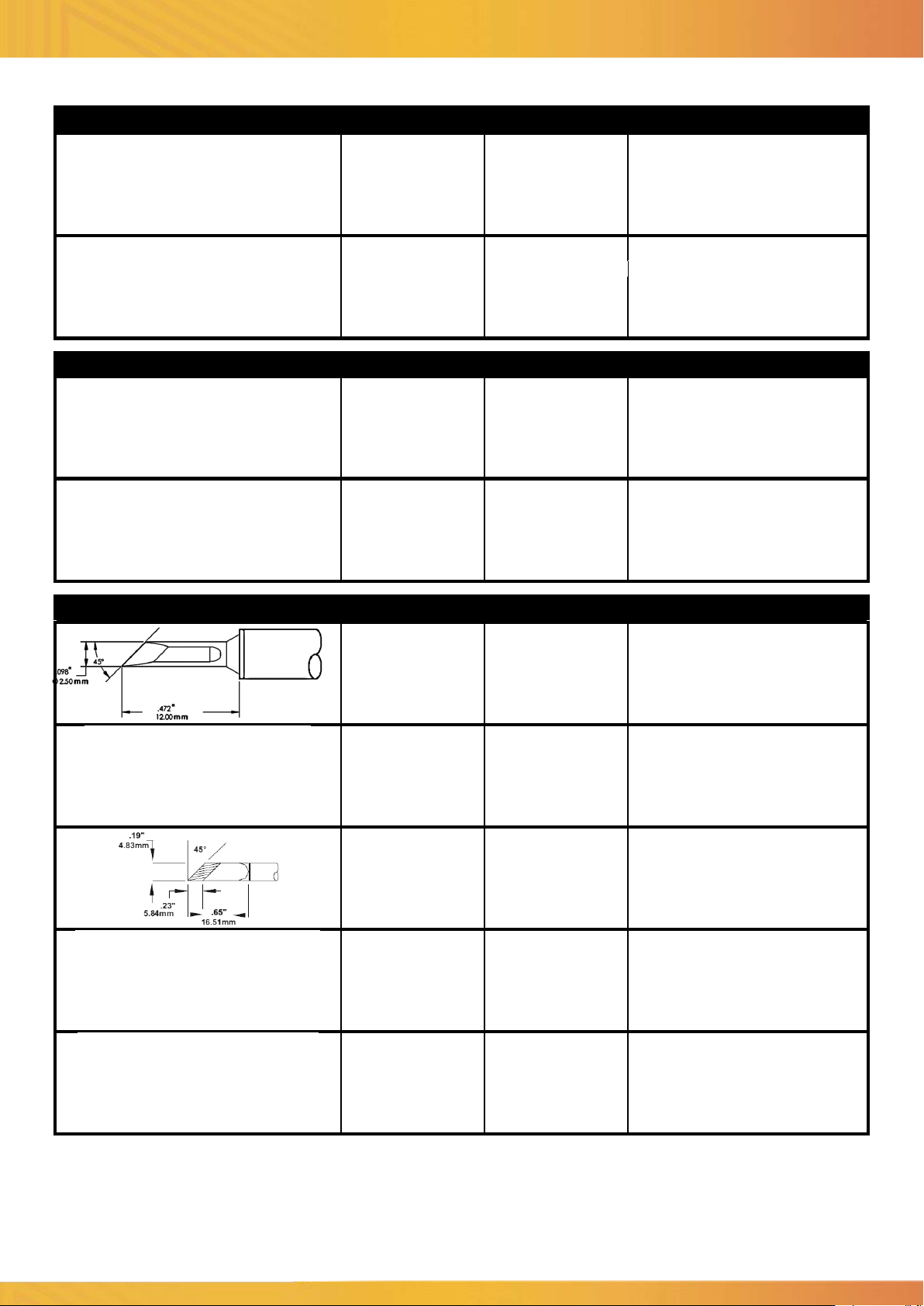

Rework Knife-Cartridges – For Multi-Lead Soldering of PLCCs/SOJs

SMTC-5165

Knife, 45° angled,

tinned area length 2.03 mm

(W x L) 2.5 x 12.0 mm

SMTC-0165

SMTC-1165

SMTC-8165V1

SMC-5KN0025S

SMC-6KN0025S

SMC-7KN0025S

SMC-8KN0025S

SMC-9KN0025S SMTC-8165

SMTC-5161

Knife, 45° angled, -

tinned area length 2.03 mm,

(W x L) 4.83 x 16.51 mm

SMTC-0161

SMTC-1161

SMTC-8161V1

SMC-5KN0048S

SMC-6KN0048S

SMC-7KN0048S

SMC-8KN0048S

SMC-9KN0048S SMTC-8161

SMTC-5173

Knife, 45° angled,

tinned area length 5.84 mm,

(W x L) 4.83 x 16.51 mm

SMTC-0173

SMTC-1173

SMTC-8173V1

SMC-5KN0048W

SMC-6KN0048W

SMC-7KN0048W

SMC-8KN0048W

SMC-9KN0048W

SMTC-8173

STTC-5173P

Knife, 45° angled,

0ptimised geometry for best

thermal performance,

tinned area length 5.6 mm,

(W x L) 5.0 x 13.2 mm

STTC-0173P

STTC-1173P

STTC-8173PV1

SMC-5KN0050P

SMC-6KN0050P

SMC-7KN0050P

SMC-8KN0050P

SMC-9KN0050P STTC-8173P

Knife, 45° angled, Long Life,

optimised geometry for best

thermal performance,

tinned area length 5.6 mm,

(W x L) 5.0 x 13.2 mm

STTC-5173PLL

STTC-0173PLL

STTC-1173PLL

SMC-5KN0050X

SMC-6KN0050X

SMC-7KN0050X

SMC-8KN0050X

SMC-9KN0050X

STTC-8173PLLV1

STTC-8173PLL

P a g e | 11

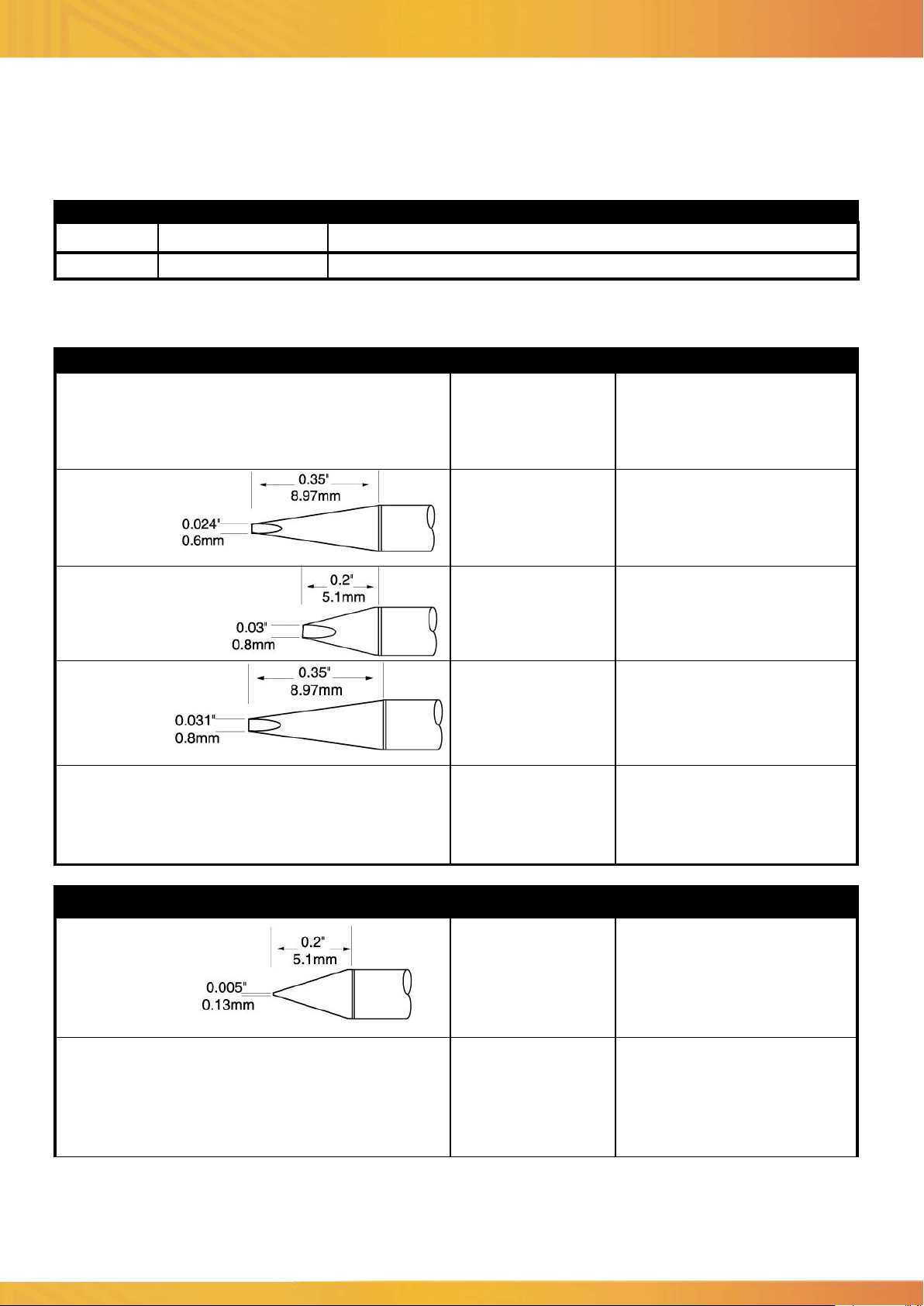

UFC Ultra-Fine Cartridges for work in tight spaces, compatible with CV-5200,

CV-500 Systems and Ultra-Fine Solder Hand piece CV-H2-UF.

Temperature CV-Series Application

UFC-6

Temperature Sensitive

UFC-7

Most Standard

Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry

of the cartridge.

Ultra-Fine Chisel Cartridge

UFC-6CH5106S

UFC-7CH5106S

(W x L) 0.6 x 5.1 mm

UFC-6CH9006S

UFC-7CH9006S

Long reach,

(W x L) 0.6 x 9 mm

UFC-6CH5108S

UFC-7CH5108S

(W x L) 0. 8 x 5.1 mm

UFC-6CH9008S

UFC-7CH9008S

Long reach,

(W x L) 0.8 x 9 mm

UFC-6CH5112S

UFC-7CH5112S

(W x L) 1.2 x 5.1 mm

Ultra-Fine Conical Cartridge

UFC-6CN5101S

UFC-7CN5101S

(ø x L) 0.13 x 5.1 mm

UFC-6CN5102S

UFC-7CN5102S

(ø x L) 0.2 x 5.1 mm

675 °F/357 °C

775 °F/413 °C

P a g e | 12

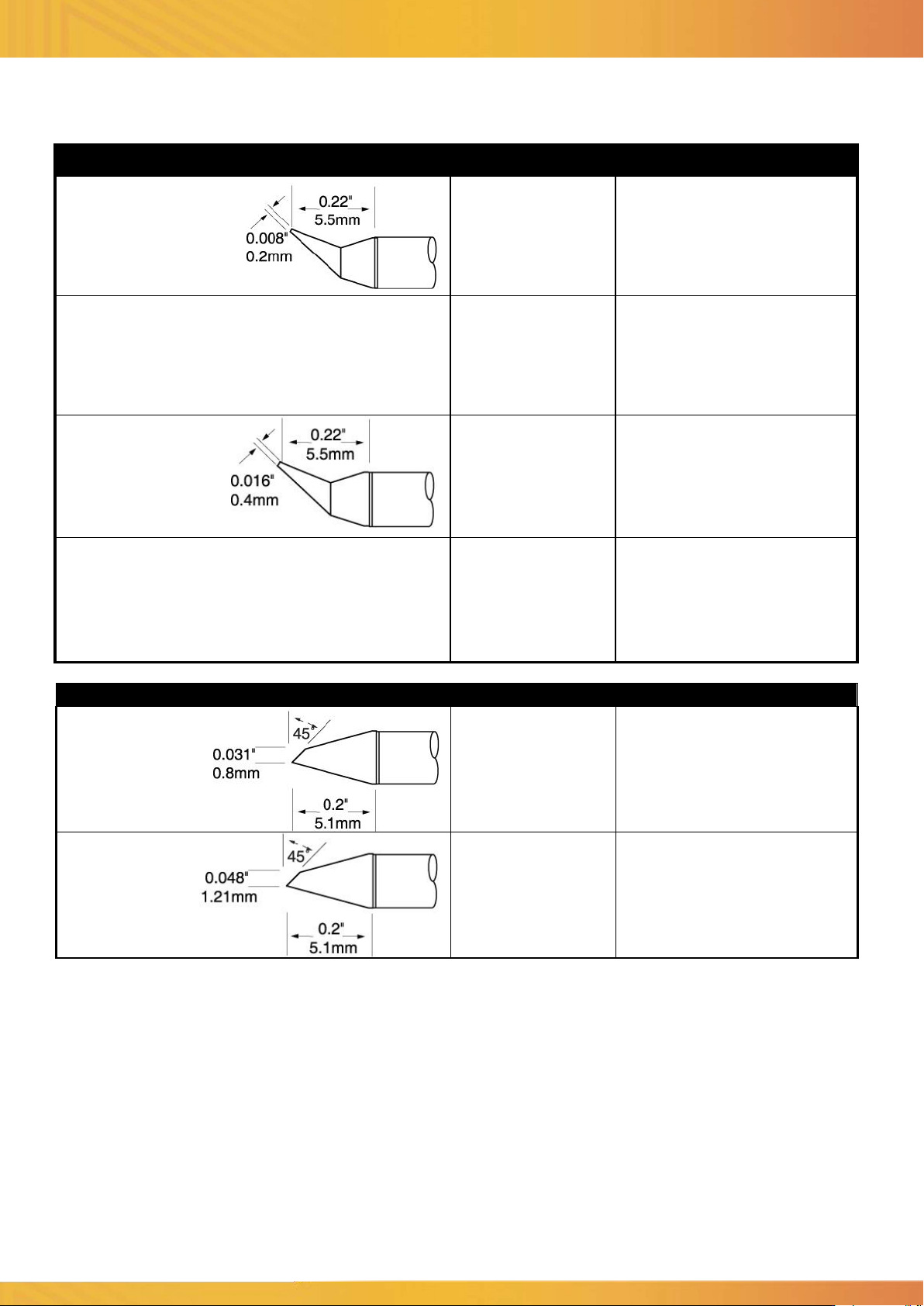

Ultra-Fine Conical Cartridge

UFC-6CN5502R

UFC-7CN5502R

Bent 30°,

for work under a microscope,

(ø x L) 0.2 x 5.6 mm

UFC-6CN5504S

UFC-7CN5504S

0.4 x 5.1 mm

UFC-6CN5504R

UFC-7CN5504R

Bent 30°,

for work under a microscope,

0.4 x 5.6 mm

UFC-6CN8004S

UFC-7CN8004S

For work in tight spaces,

long reach,

0.4 x 8.0 mm

Ultra-Fine Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs

UFC-6HF5108S

UFC-7HF5108S

Micro Hoof,

(Bevel/L) 45° x 1.13 mm,

(ø x L) 0.8 x 5.1 mm

UFC-6HF5112S

UFC-7HF5112S

Micro Hoof,

(Bevel/L) 45° x 1.71 mm,

(ø x L) 1.21 x 5.1 mm
