P a g e | 13 HCV Cartridges for Hi gh Thermal Deman d applications wit h increased heating ele ments are compatible with MX -5000, MX-520 0 and CV-5200 Sy stems MX - H6 -HTD, CV- H6 -HTD, CV- H7 -HTD Solder Hand pieces. …
P a g e | 12
Ultra-Fine Conical Cartridge
UFC-6CN5502R
UFC-7CN5502R
Bent 30°,
for work under a microscope,
(ø x L) 0.2 x 5.6 mm
UFC-6CN5504S
UFC-7CN5504S
0.4 x 5.1 mm
UFC-6CN5504R
UFC-7CN5504R
Bent 30°,
for work under a microscope,
0.4 x 5.6 mm
UFC-6CN8004S
UFC-7CN8004S
For work in tight spaces,
long reach,
0.4 x 8.0 mm
Ultra-Fine Rework Hoof-Cartridges – For Drag Soldering SOICs/QFPs
UFC-6HF5108S
UFC-7HF5108S
Micro Hoof,
(Bevel/L) 45° x 1.13 mm,
(ø x L) 0.8 x 5.1 mm
UFC-6HF5112S
UFC-7HF5112S
Micro Hoof,
(Bevel/L) 45° x 1.71 mm,
(ø x L) 1.21 x 5.1 mm
P a g e | 13
HCV Cartridges for High Thermal Demand applications with increased heating elements are
compatible with MX-5000, MX-5200 and CV-5200 Systems
MX-H6-HTD, CV-H6-HTD, CV-H7-HTD Solder Hand pieces.
HTC Cartridges for High Thermal Demand applications are compatible with
MX-5000 and MX-5200 Systems – MX-H6-HTD Solder Hand pieces.
Temperature CV-Series
MX-Series
Application
HCV-7 HTC-7
Most Standard
HCV-8 HTC-8
Ceramic and High Thermal Demand
HCV-9 HTC-9
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of
the cartridge.
For High Mass Applications
HCV-7CN0020S
HCV-8CN0020S
HCV-9CN0020S
HTC-7CN0020S
HTC-8CN0020S
HTC-9CN0020S
Conical,
(ø x L) 2 x 8.3 mm
HCV-7CH0015S
HCV-8CH0015S
HCV-8CH0015S
N/A
Chisel,
(W x L )1.47 x 10.4 mm
Chisel,
(W x L) 1.85 x 10 mm
HCV-7CH0018S
HCV-8CH0018S
N/A
HCV-9CH0018S
HCV-7CH0025S HTC-7CH0025S
Chisel,
(W x L) 2.5 x 8 mm
HCV-8CH0025S HTC-8CH0025S
HCV-9CH0025S HTC-9CH0025S
775 °F/413 °C
875 °F/468 °C
950 °F/
510 °C
P a g e | 14
For High Mass Applications
HCV-7CH0053S HTC-7CH0053S
Chisel,
(W x L) 5.3 x 8.3 mm
HCV-8CH0053S HTC-8CH0053S
HCV-9CH0053S HTC-9CH0053S

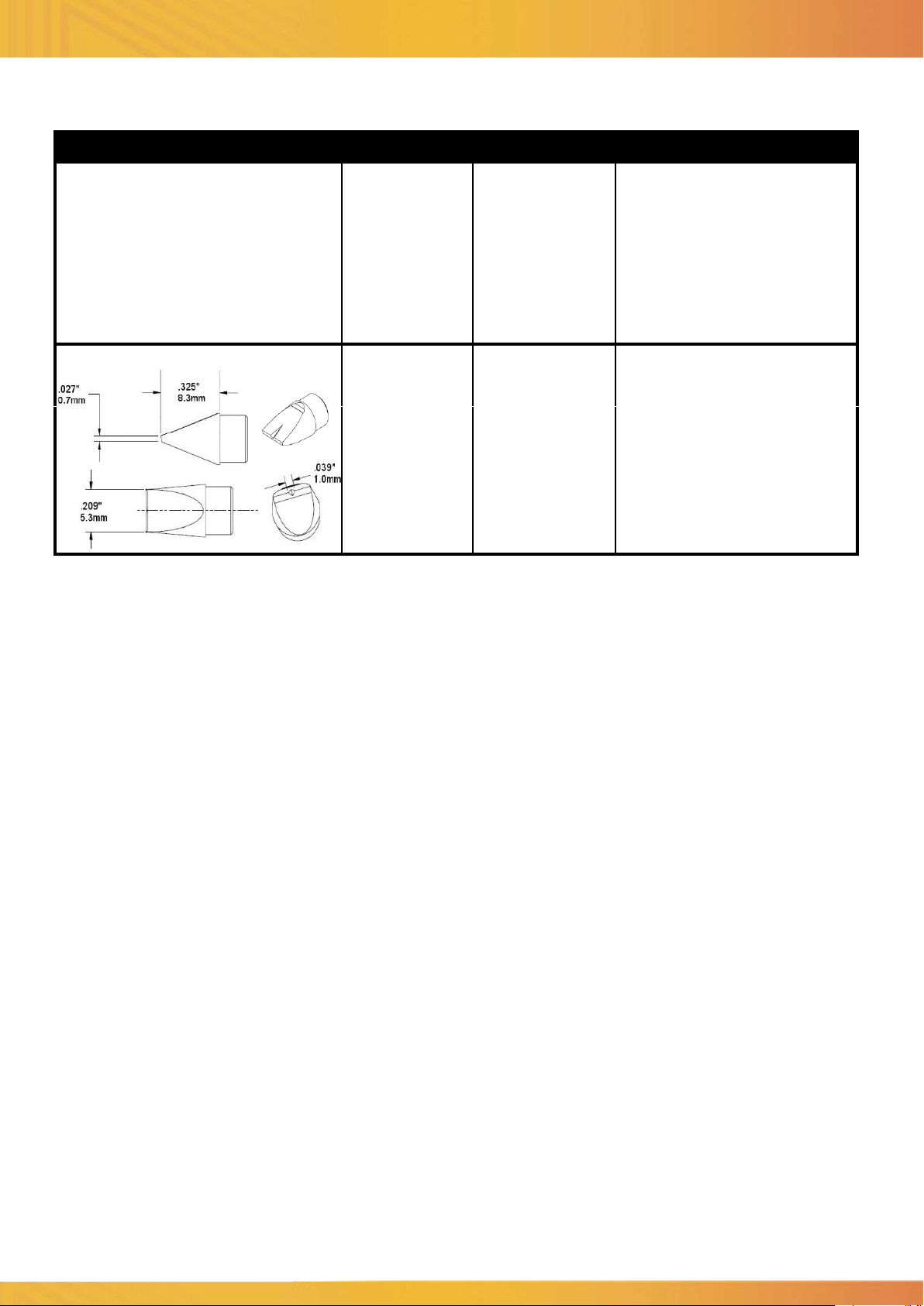

HCV-7VG0053S HTC-7VG0053S
V-Groove Chisel for pin soldering,
Grove (W x L) 1.0 x 4 mm,
(W x L) 5.3 x 8.3 mm
HCV-8VG0053S HTC-8VG0053S
HCV-9VG0053S HTC-9VG0053S
