P a g e | 1 CVC Cartridge s are compatible with MX -500, MX -5000, MX-5200 and CV-5200, CV - 500 S ystems - MX -RM3E, MX -RM6E , MX - H1 -AV, MX - H7 - SF - CV - H1 - AV and CV-H7- AV Sold er Hand pieces. STTC Cartridges…
Contents
Cartridges for CV and MX Soldering Systems
CV/MX-Series
Type Page
CVC/STTC Soldering Cartridges - Bevel Cartridges 1
CVC/STTC Soldering Cartridges – Chisel 2 - 4
CVC/STTC Solder Cartridges - Conical 5 - 6
CVC/STTC Soldering Cartridges - U-/V-Groove 7
SMC/SMTC Rework Cartridges - Blade 8
SMC/SMTC Rework Cartridges - Hoof 9 - 10
SMC/SMTC Rework Cartridges - Hook 10
SMC/SMTC Rework Cartridges - Knife 10
UFC/-- UltraFine Cartridges - Chisel 11
UFC/-- UltraFine Cartridges - Conical 11 - 12
UFC/-- UltraFine Cartridges – Hoof 12
HCV/HTC High Thermal Demand Cartridges 13 - 14
PTC/PTTC Tweezer Cartridges 15 - 16
UFT/-- UltraFine Tweezer Cartridges 17
DSC/STDC De-Solder Cartridges 18
P a g e | 1
CVC Cartridges are compatible with MX-500, MX-5000, MX-5200 and CV-5200, CV-500 Systems -
MX-RM3E, MX-RM6E, MX-H1-AV, MX-H7-SF - CV-H1-AV and CV-H7-AV Solder Hand pieces.
STTC Cartridges are compatible with MX-500, MX-5000 and MX-5200 Systems –
MX-RM3E, MX-RM6E, MX-H1-AV and MX-H7-SF Solder Hand pieces.
Temperature CV-Series MX-Series Application
575 °F/302 °C
CVC-5xxx STTC-5xx
Temperature Sensitive
675 °F/357 °C
CVC-6xxx STTC-0xx
775 °F/413 °C CVC-7xxx STTC-1xx
Most Standard
875 °F/468 °C
CVC-8xxx STTC-8xxV1
Ceramic and High Thermal Demand
950 °F/510 °C
CVC-9xxx STTC-8xx
Please note the above temperatures are the maximum temperatures of the heater. The idle temperature is dependent on the geometry of
the cartridge.
Bevel Cartridges
STTC-546
Long reach,
(Bevel/L) 60° x 1 mm,
(ø x L) 0.50 x 14.2 mm
STTC-046
STTC-146
STTC-846V1
CVC-5BV6005A
CVC-6BV6005A
CVC-7BV6005A
CVC-8BV6005A
CVC-9BV6005A STTC-846
STTC-547P
(Bevel/L) 60° x 1.78 mm,
optimised geometry for best
thermal performance
(ø x L) 0.89 x 6.6 mm
STTC-047P
STTC-147P
STTC-847PV1
CVC-5BV6018P
CVC-6BV6018P
CVC-7BV6018P
CVC-8BV6018P
CVC-9BV6018P STTC-847P
STTC-547
Long reach,
(Bevel/L) 70° x 1.78 mm,
(ø x L) 0.83 x 14.2 mm
STTC-047
STTC-147
STTC-847V1
CVC-5BV6018R
CVC-6BV6018R
CVC-7BV6018R
CVC-8BV6018R
CVC-9BV6018R STTC-847
STTC-524
(Bevel/L) 30° x 1.49 mm,
(ø x L) 1.23 x 9.3 mm
STTC-024
STTC-124
STTC-824V1
CVC-5BV4001S
CVC-6BV4001S
CVC-7BV4001S
CVC-8BV4001S
CVC-9BV4001S STTC-824
STTC-515
(Bevel/L 30°) x 1.47 mm,
optimised geometry for best
thermal performance,
(ø x L) 1.3 x 3.9 mm
STTC-015
STTC-115
STTC-815V1
CVC-5BV3018P
CVC-6BV3018P
CVC-7BV3018P
CVC-8BV3018P
CVC-9BV3018P
STTC-815
STTC-535
(Bevel/L) 30° x 2.06 mm,
(ø x L) 1.78 x 9.9 mm
STTC-035
STTC-135
STTC-835V1
CVC-5BV6018S
CVC-6BV6018S
CVC-7BV6018S
CVC-8BV6018S
CVC-9BV6018S STTC-835
STTC-505
(Bevel/L) 30° x 2.06 mm,
(ø x L) 1.78 x 11.7 mm
STTC-005
STTC-105
STTC-805V1
CVC-5BV3018S
CVC-6BV3018S
CVC-7BV3018S
CVC-8BV3018S
CVC-9BV3018S STTC-805
14,2 mm
1 mm
Ø 0.89 mm
Ø 0.83
mm
.26"
6.6 mm
70°
P a g e | 2

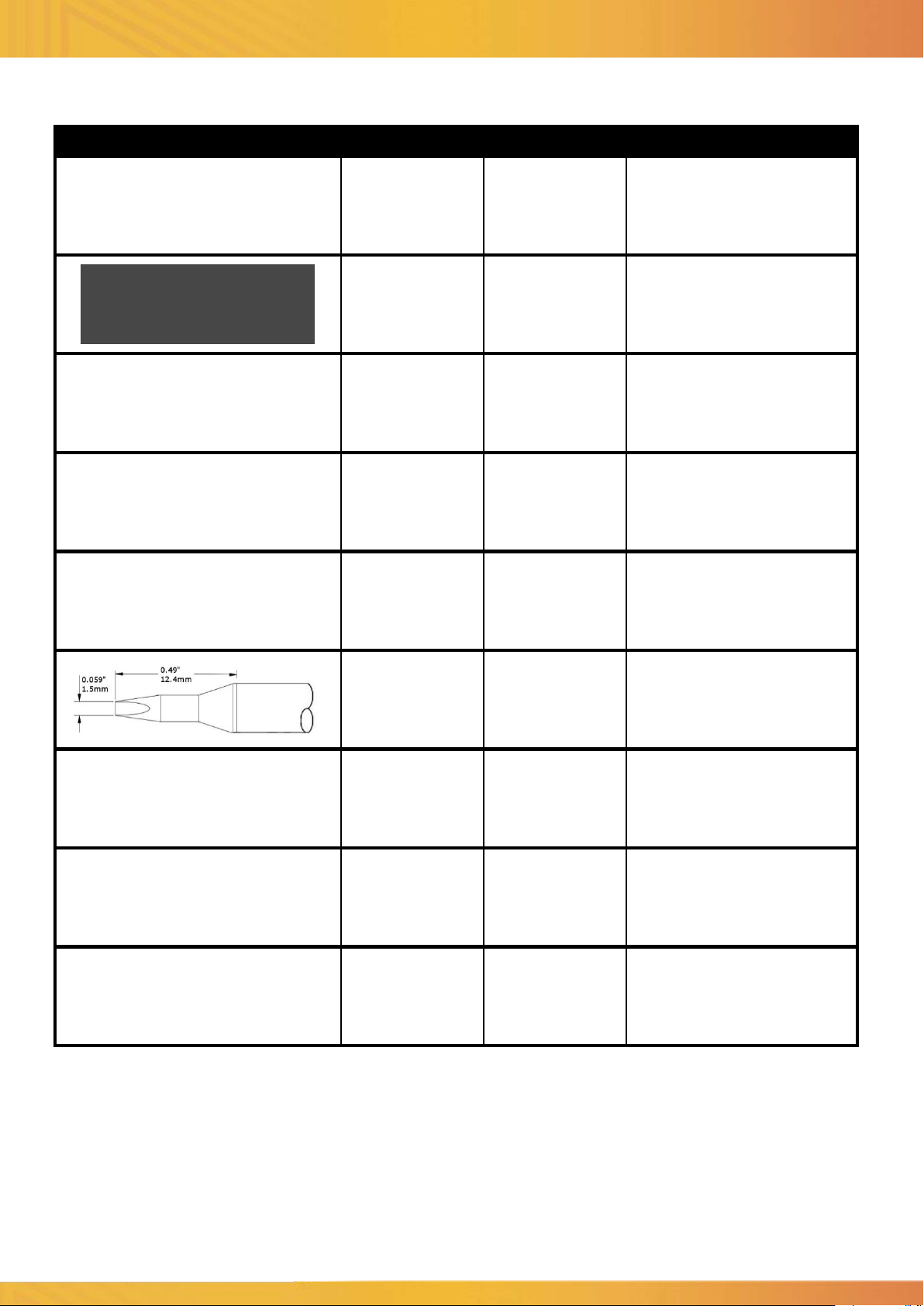

Chisel Cartridges
STTC-525P
Optimised geometry for best
thermal performance,
(W x L) 1.0 x 6.0 mm
STTC-025P
STTC-125P
STTC-825PV1
CVC-5CH0010P
CVC-6CH0010P
CVC-7CH0010P
CVC-8CH0010P
CVC-9CH0010P STTC-825P
N/A
Long reach,
for work in tight spaces,
(W x L) 1.0 x 12.4 mm
CVC-5CH0010A
CVC-6CH0010A
CVC-7CH0010A
CVC-8CH0010A
CVC-9CH0010A
STTC-525
(W x L) 1.0 x 9.1 mm
STTC-025
STTC-125
STTC-825V1
CVC-5CH0010S
CVC-6CH0010S
CVC-7CH0010S
CVC-8CH0010S
CVC-9CH0010S
STTC-825
STTC-538P
Optimised geometry for best
thermal performance,
(W x L) 1.4 x 6.0 mm
STTC-038P
STTC-138P
STTC-838PV1
CVC-5CH0014P
CVC-6CH0014P
CVC-7CH0014P
CVC-8CH0014P
CVC-9CH0014P STTC-838P
STTC-538
(W x L) 1.5 x 9.9 mm
STTC-038
STTC-138
STTC-838V1
CVC-5CH0014S
CVC-6CH0014S
CVC-7CH0014S
CVC-8CH0014S
CVC-9CH0014S STTC-838
N/A
Long reach,
for work in tight spaces,
(W x L) 1.5 x 12.4 mm
CVC-5CH0015A
CVC-6CH0015A
CVC-7CH0015A
CVC-8CH0015A
CVC-9CH0015A
STTC-599
Bent 30°, for work under a
microscope,
(W x L) 1.5 x 11.9 mm
STTC-099
STTC-199
STTC-899V1
CVC-5CH0015R
CVC-6CH0015R
CVC-7CH0015R
CVC-8CH0015R
CVC-9CH0015R STTC-899
STTC-542
Long reach, flat,
(W x L) 1.78 x 16mm
STTC-042
STTC-142
STTC-842V1
CVC-5CH0018A
CVC-6CH0018A
CVC-7CH0018A
CVC-8CH0018A
CVC-9CH0018A
STTC-842
STTC-537LL
Long life plating,
(W x L) 1.78 x 10 mm
STTC-037LL
STTC-137LL
STTC-837LLV1
CVC-5CH0018L
CVC-6CH0018L
CVC-7CH0018L
CVC-8CH0018L
CVC-9CH0018L STTC-837LL
