Samsung Component Placer SM320 Pr ogramming T utorial <Feeder> 8mm T ape <Nozzle 1> <Nozzle 2> CN0 65 CN065 <Register> A/C ( ) …
Program(Chip
)
1-21

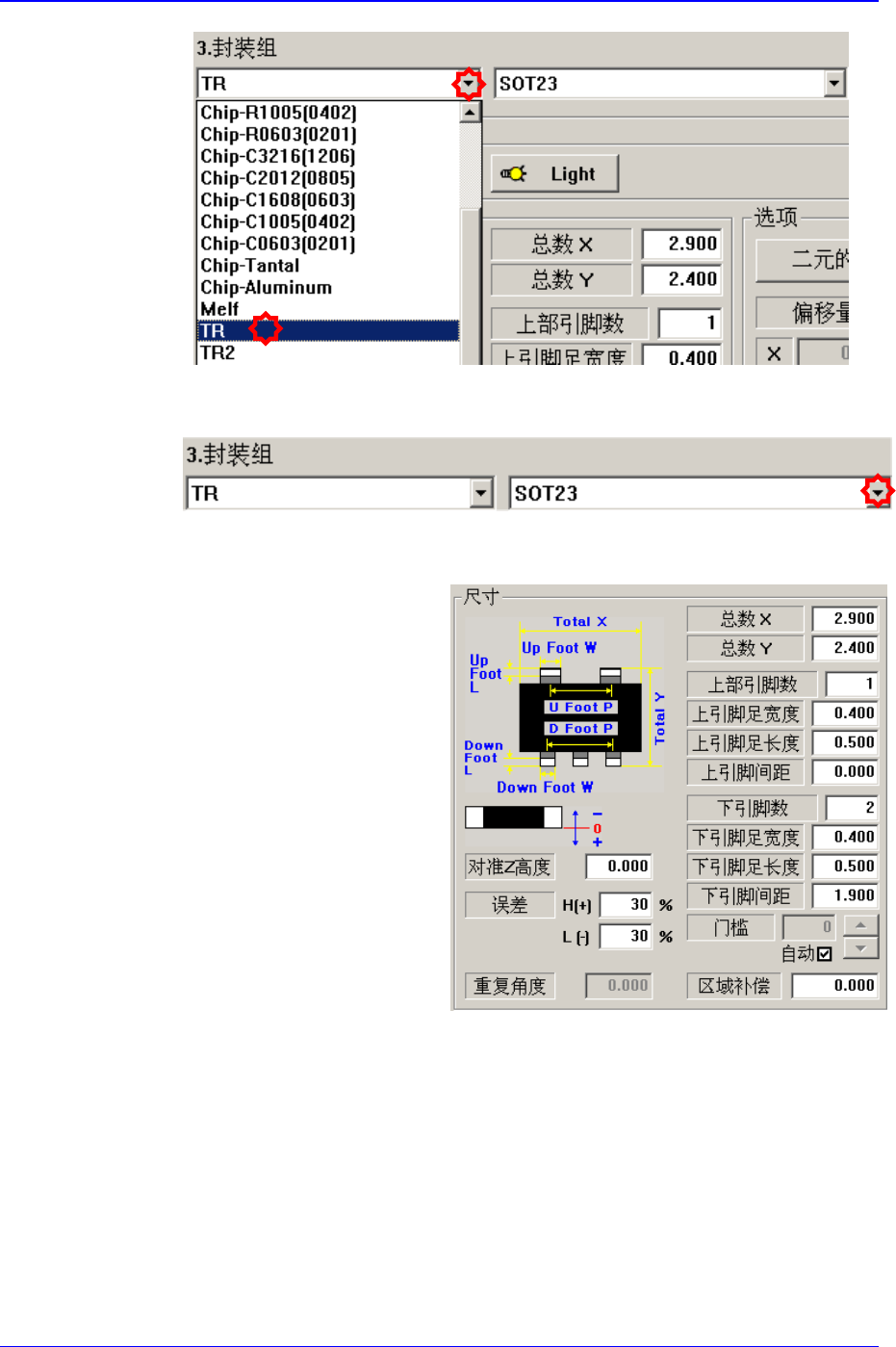

<3.Package Group> Profile SOT23
Align Data
Total X: 2.9, Y: 2.4
Up Group
Up Lead Number: 1
Foot W: 0.4
Foot L: 0.5
Lead P: 0.0
Down Group
Down Lead Number: 2
Foot W: 0.4
Foot L: 0.5
Lead P: 1.9
Part Data – (0.950)
<Common Data> Common Data
Samsung Component Placer SM320 Programming Tutorial

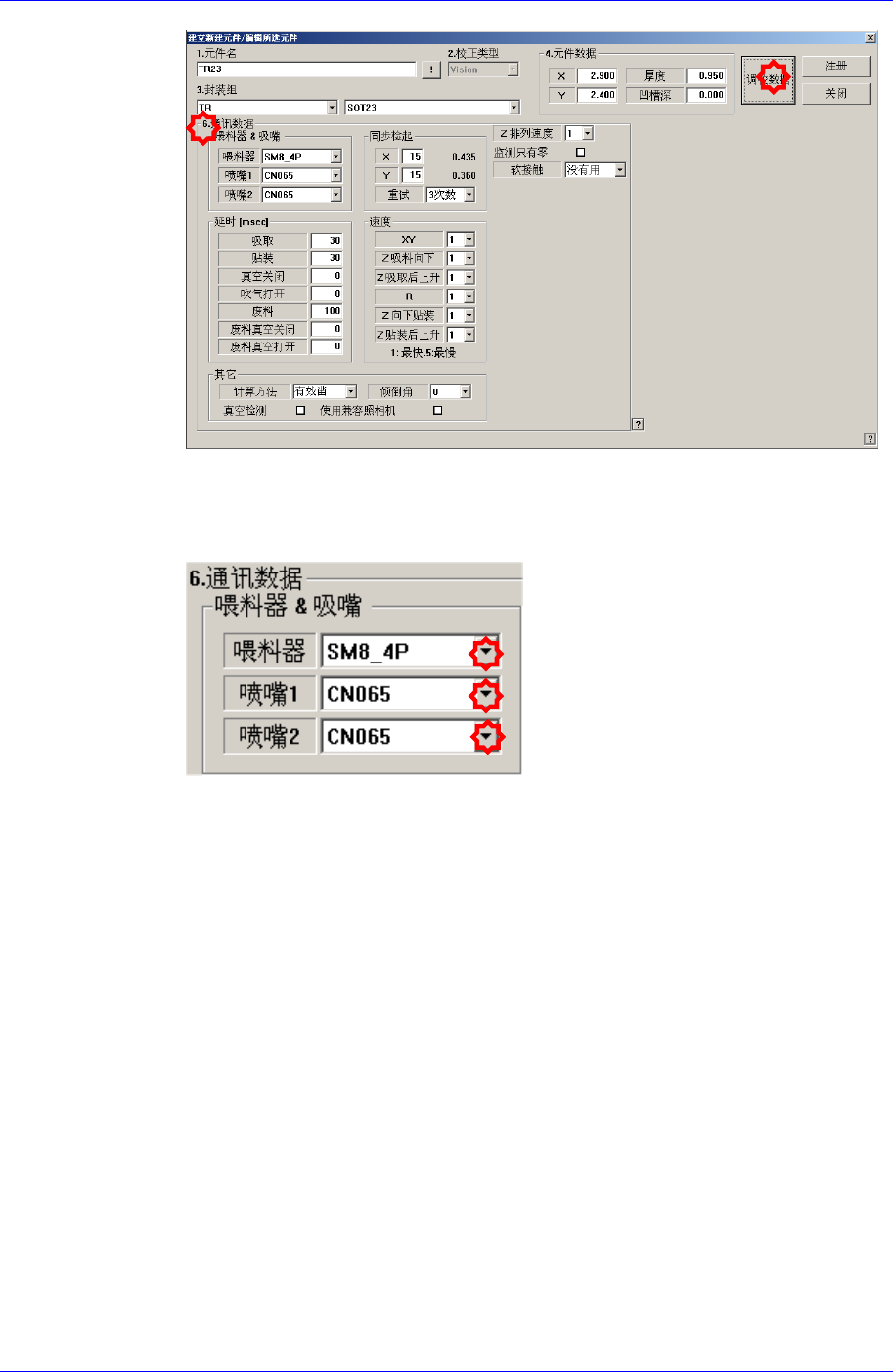

<Feeder> 8mm Tape
<Nozzle 1><Nozzle 2> CN065CN065
<Register>
A/C ()
<New Part…>
1-22
Program(Chip
)
1-23

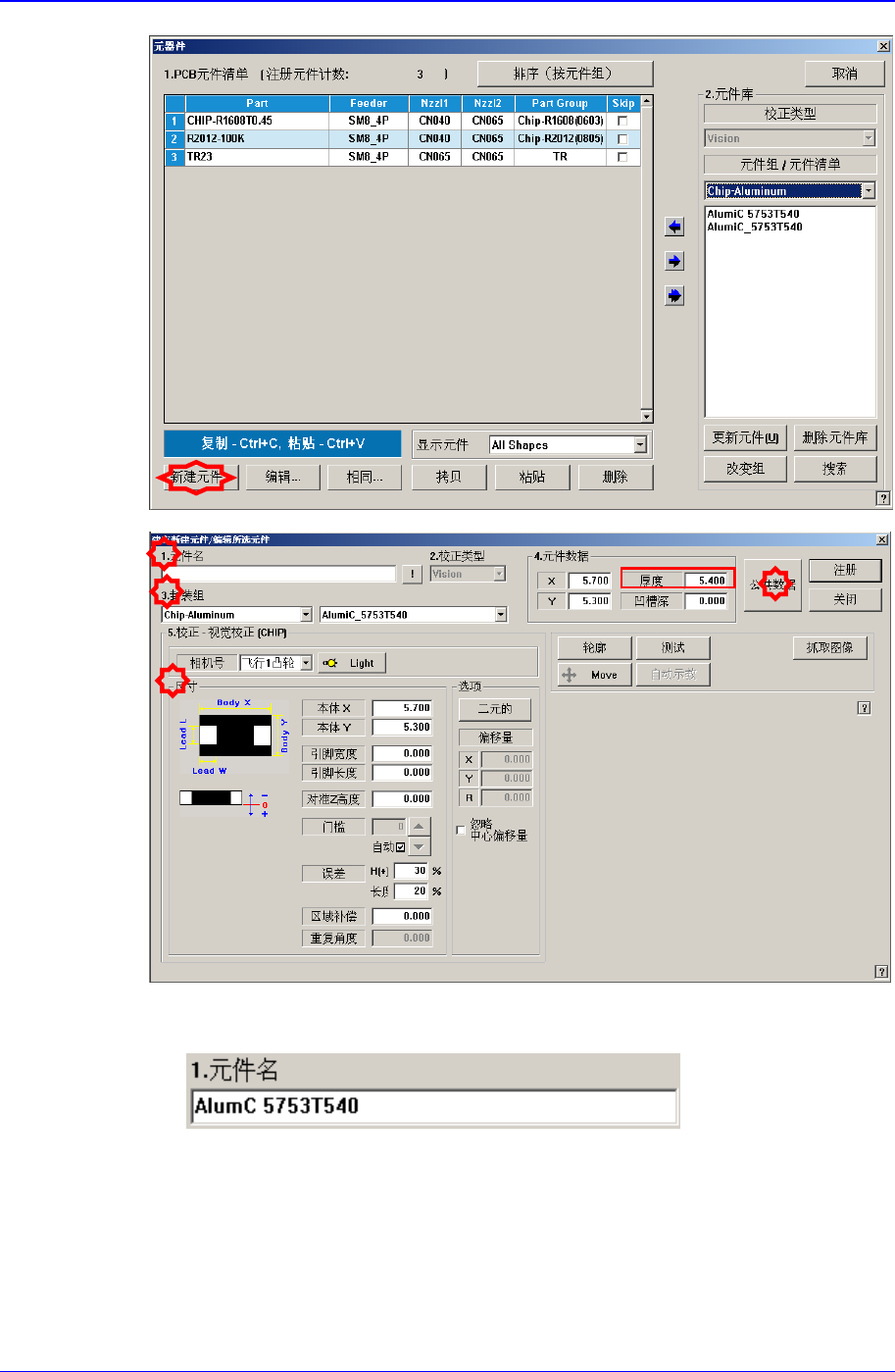

Part Name (AlumC 5753T540)
<3.Package Group> Group Chip-Aluminum
