Pr ogram(Chip ) 1-23 Part Name (AlumC 5753T540) <3.Packag e Group> Group Chip-Aluminum
Samsung Component Placer SM320 Programming Tutorial
<Feeder> 8mm Tape
<Nozzle 1><Nozzle 2> CN065CN065
<Register>
A/C ()
<New Part…>
1-22
Program(Chip
)
1-23
Part Name (AlumC 5753T540)
<3.Package Group> Group Chip-Aluminum
Samsung Component Placer SM320 Programming Tutorial

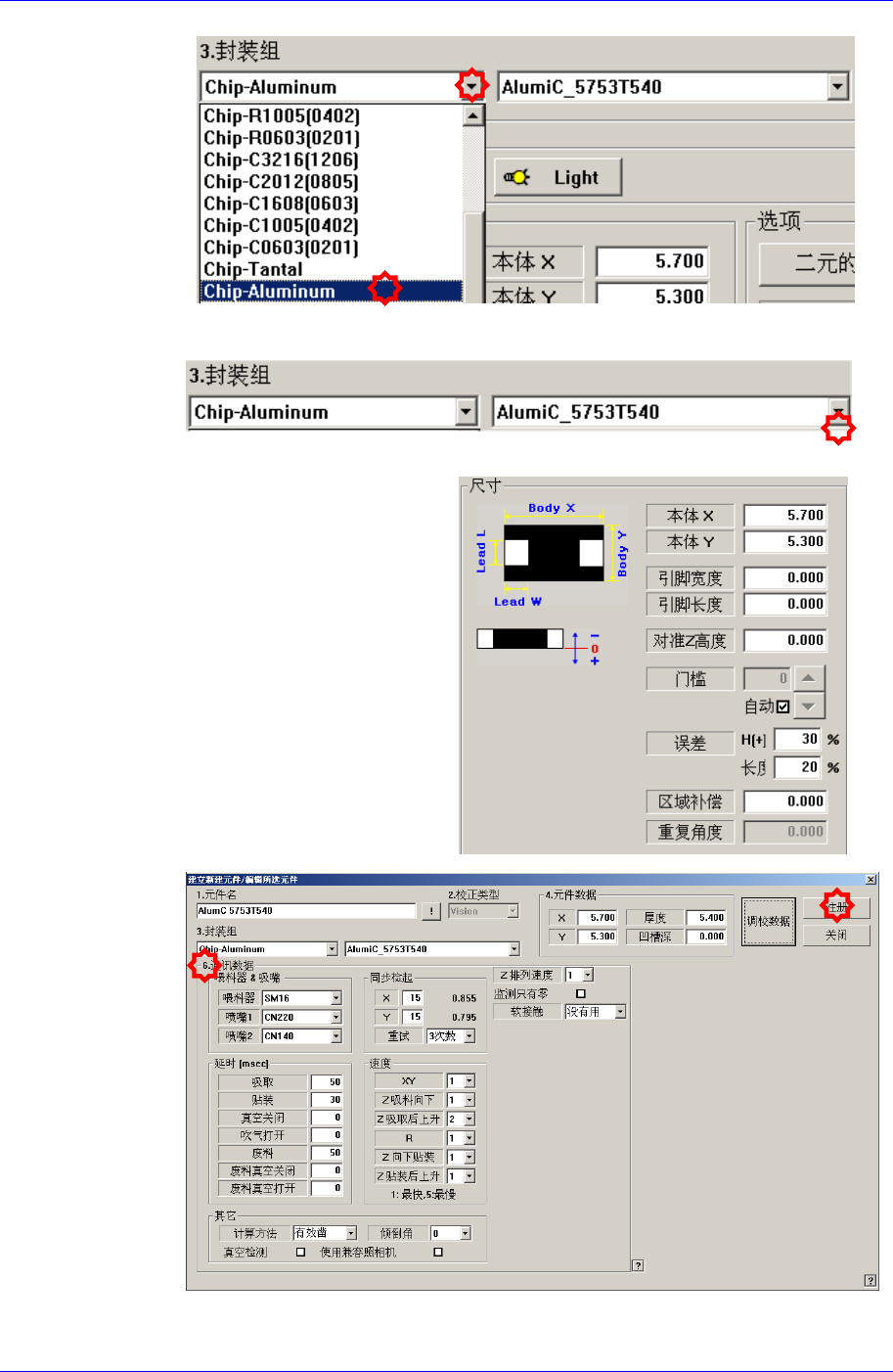

<3.Package Group> Profile Alumic_5753T540
Align Data
X: 5.7, Y: 5.3
Lead W: 2.0 Lead L: 0.8
Part Data – (5.4)
<Common Data> Common Data
<Feeder> 12mm Tape
