Pr ogram(Chip ) 1-27 <3.Packag e Group> Profile Tnac_3012T160 Align Data X: 3.0, Y : 1.2 Lead W : 1.2, Lead L: 0.5 Part Data – (1.6) <Common Data> Co…
Samsung Component Placer SM320 Programming Tutorial
Tantal
<New Part…>

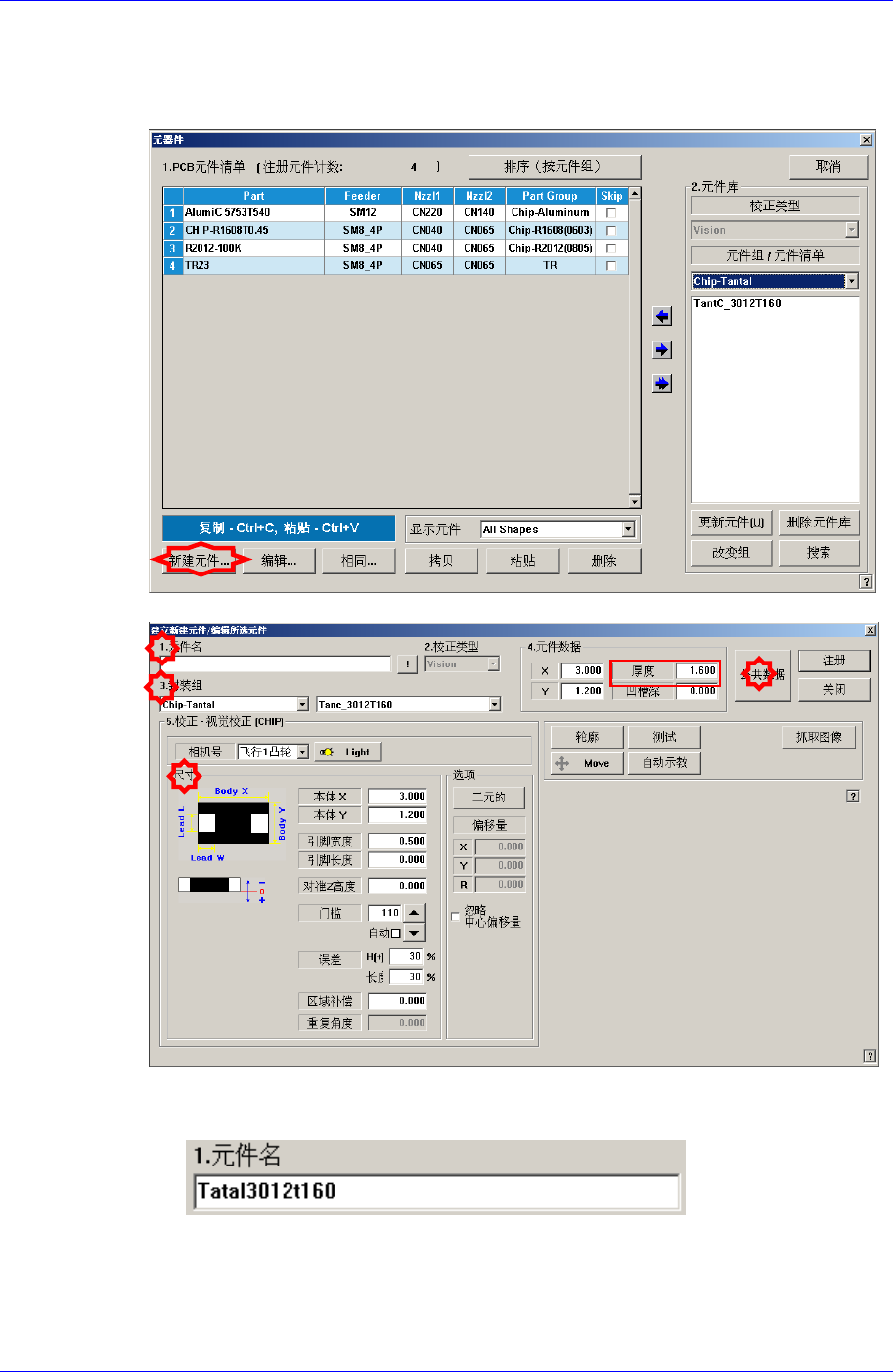

Part Name (Tatal3012t160)
<3.Package Group> Group Chip-Tantal
1-26
Program(Chip
)
1-27
<3.Package Group> Profile Tnac_3012T160
Align Data
X: 3.0, Y: 1.2
Lead W: 1.2, Lead L: 0.5
Part Data – (1.6)
<Common Data> Common Data
<Feeder> 8mm Tape
Samsung Component Placer SM320 Programming Tutorial
<Nozzle 1><Nozzle 2> CN065, CN040
<Register>
1.3.3. Feeder (供 装置的登)
Feeder Optimizer ( Tape Feeder
)
1.3.4. Step ( 装信息登) – 段 5 (STEP 5)
Reference()
R1, R2, R3, R4, M1, M2, TR1, TR2, A1, A2, T1, T2
12 X, Y Position (Teaching)
Chipr2012 = X: 10 Y: 10, X: 14 Y: 10
