5. YUNIT(1)(FORTR8S)
- -

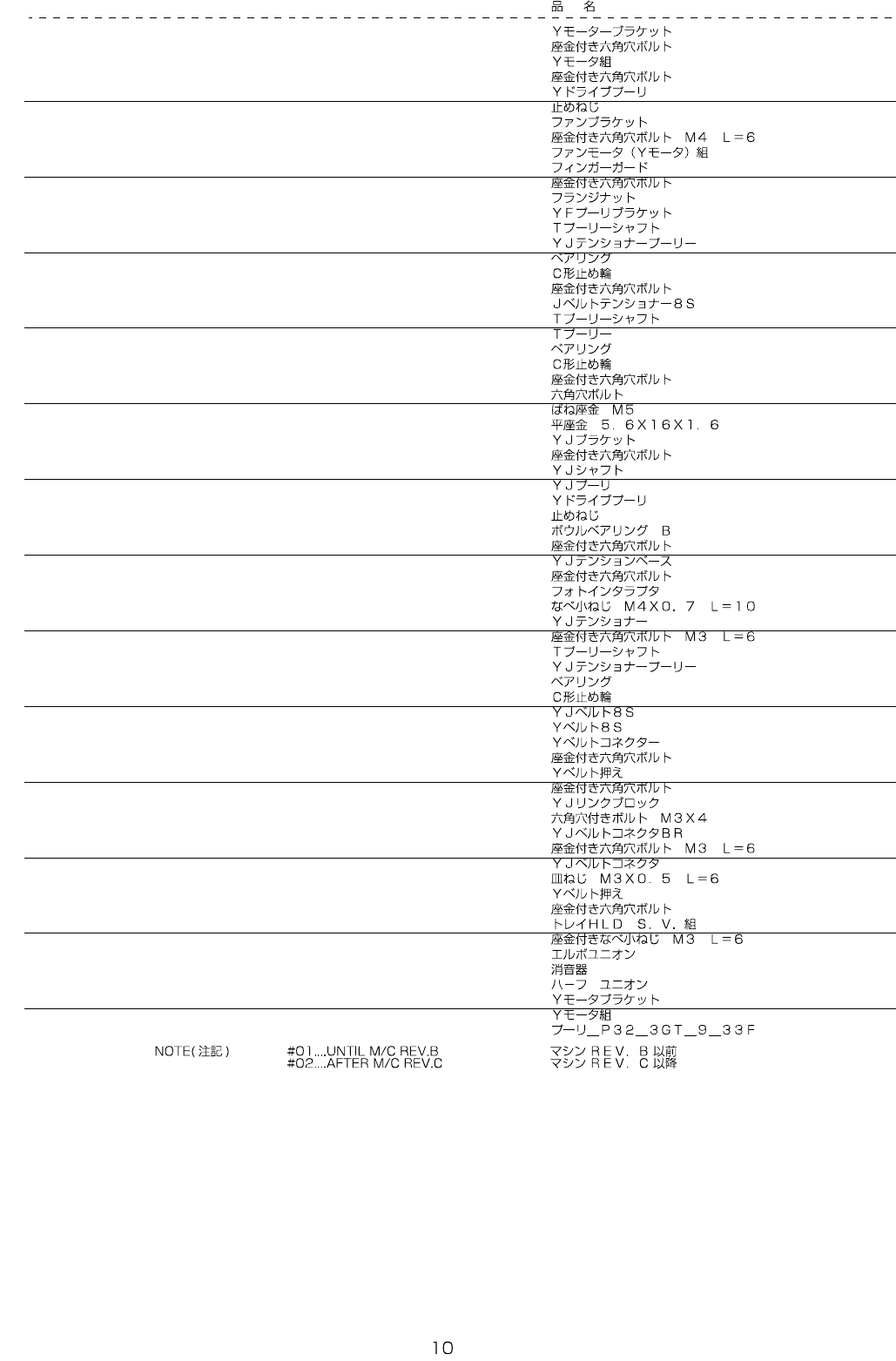

REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-54597 Y_MOTOR_BR 1
2 SL-6040892-TN BOLT 4
3
#01
400-45060 YMOTORASM 1
4 SL-6041042-TN BOLT 4
5
#01
E1341-726-000 YDRIVEPULLEY 1
6 SM-8040602-TP SCREWM4X0.7L=6 2
7 401-54600 FAN_BRACKET 1
8 SL-6040692-TN SCREWM4L=6 2
9 400-49579 FANMOTOR(YMOTOR)ASM 1
10 HM-0017800-10 FINGERGUARD 2
11 SL-6044092-TN SCREW 4
12 NM-3040520-SF FLANGENUTM4 2
13 401-54613 YF_PULLEY_BR 1
14 401-54618 T_PULLEY_SHAFT 1
15 401-54612 YJ_TENSIONER_PULLEY 1
16 SB-1060009-00 BEARING 2
17 RC-0560711-KP RETAININGRING 1
18 SL-6030842-TN SCREWM3L=8 4
19 401-83812 J_BELT_TENSIONER_8S 1
20 401-54618 T_PULLEY_SHAFT 1
21 401-54619 T_PULLEY 1
22 SB-1060009-00 BEARING 2
23 RC-0560711-KP RETAININGRING 1
24 SL-6051092-TN BOLT 1
25 SM-6051002-TN BOLT 1
26 WS-0510002-KN SPRINGWASHERM5 1
27 WP-0561616-SC WASHER5.6X16X1.6 1
28 401-54595 YJ_BRACKET 1
29 SL-6040892-TN BOLT 2
30 401-54609 YJ_SHAFT 1
31 E1362-726-000 YJPULLEY 1
32 E1341-726-000 YDRIVEPULLEY 1
33 SM-8040602-TP SCREWM4X0.7L=6 4
34 SB-1060007-00 BALLBEARING 2
35 SL-6040892-TN BOLT 2
36 401-54596 YJ_TENSION_BASE 1
37 SL-6040892-TN BOLT 2
38 HD-0017100-00 SENSOR 1
39 SM-4041001-SC SCREWM4X0.7L=10 1
40 401-54598 YJ_TENSIONER 1
41 SL-6030692-TN SCREWM3L=6 2
42 401-54618 T_PULLEY_SHAFT 1
43 401-54612 YJ_TENSIONER_PULLEY 1
44 SB-1060009-00 BEARING 2
45 RC-0560711-KP RETAININGRING 1
46 401-54614 YJ_BELT_8S 1
47 401-54615 Y_BELT_8S 1
48 401-54599 Y_BELT_CONNECTER 1
49 SL-6031092-TN SCREW 2
50 E1317-726-000 YBELTSTOPPER 1
51 SL-6031042-TN SCREW 4
52 401-54616 YJ_LINK_BLOCK 1
53 SM-6030402-TN SCREWM3X4 4
54 401-54590 YJ_BELT_CONN_BR 1
55 SL-6030692-TN SCREWM3L=6 2
56 E1320-726-000 YBELTCONNECTOR 1
57 SM-1030601-SC SCREWM3L=6 2
58 E1317-726-000 YBELTSTOPPER 1
59 SL-6031042-TN SCREW 4
60 400-49728 TRAYHLDS.V.ASM 1
61 SL-4030691-SC SCREWM3L=6 2
62 PJ-3040405-04 ELBOWUNION 2
63 PX-0505010-00 SILENCER 2
64 PJ-3010605-03 HALFUNION 1
65
#02
402-22647 Y_MOTOR_BR 1
66
#02
402-22210 YMOTORASM 1
67
#02
402-22646 PULLEY_P32_3GT_9_33F 1
- -

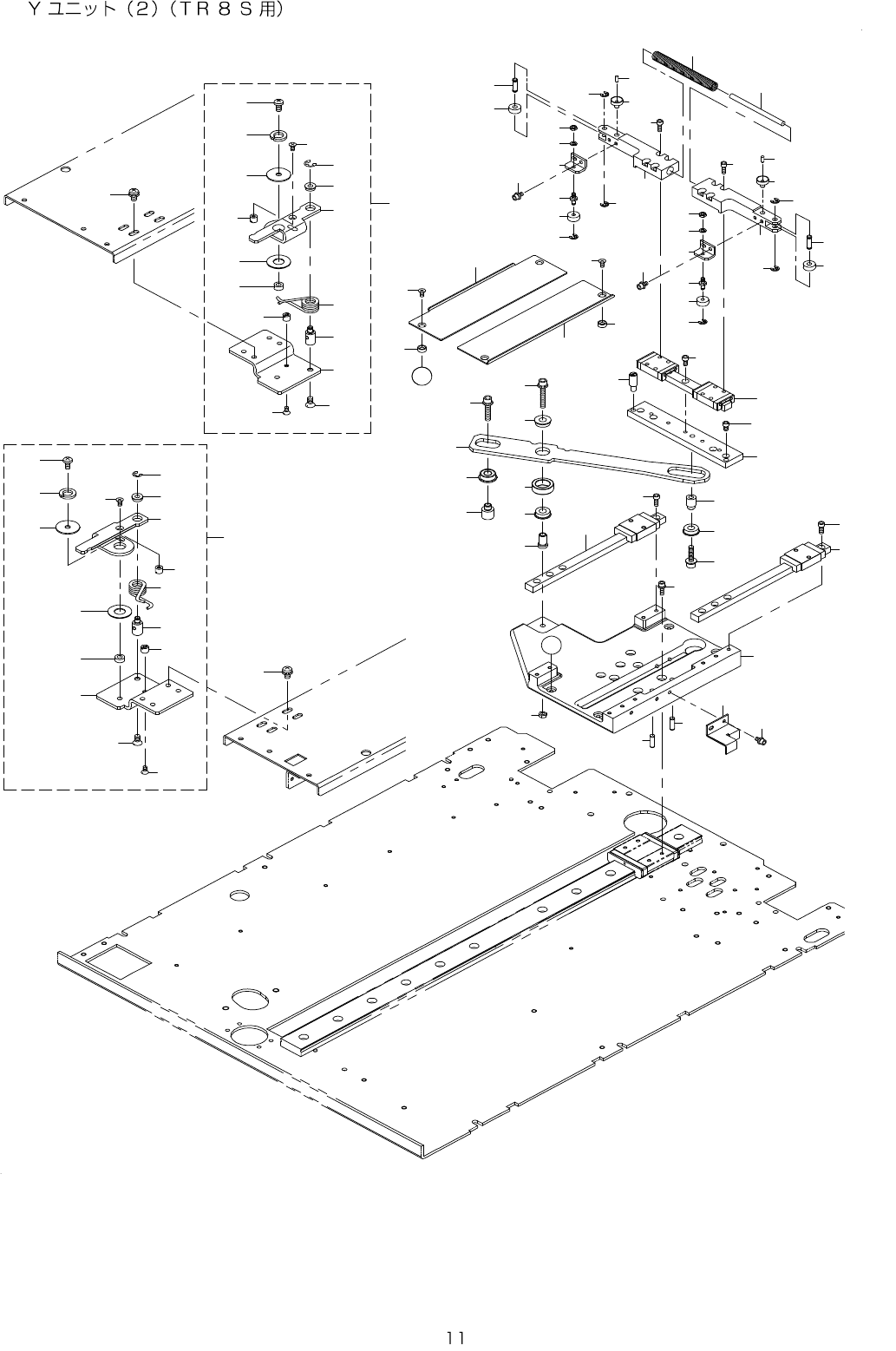

6. YUNIT(2)(FORTR8S)
1
2
2
3
4
4
5
5
7 5
9
8
7
6
2 5
2 4
1 5
1 4
1 3
1 7
1 6
1 7
1 4
1 3
1 7
1 1
1 7
1 5
1 6
1 0
1 2
1 2
2 1
2 2
1 9
1 8
2 3
2 0
2 0
2 3
1 8
1 9
2 2
2 1
2 6
2 7
3 6
2 8
3 4
3 3
3 4
3 2
3 0
2 9
3 1
7 2
7 4
7 3
3 5
4 0
3 7
3 9
A
3 8
3 9
4 0
A
5 6
6 2
6 8
6 9
6 7
6 1
6 4
5 8
6 4
6 3
5 9
7 0
6 3
6 5
6 0
5 7
6 6
4 4
4 7
5 4
5 3
4 9
4 8
5 0
5 1
4 8
4 9
4 2
4 5
4 6
5 5
4 3
5 2
4 1
7 1
7 1
7 6
7 6
