TR8S_TR8SR-Rev05 - 第17页

- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 401-54603 Y_JOINT_BR 2 2 WP-0430801-SC WASHERM4 12 3 SL-6040892-TN BOLT 8 4 401-54592 Y_BASE 1 5 SL-4040891-SC SCREWM4L=8 6 6 401-57979 Y_RAIL_A 1 7 SM-60408…

100%1 / 50
- -

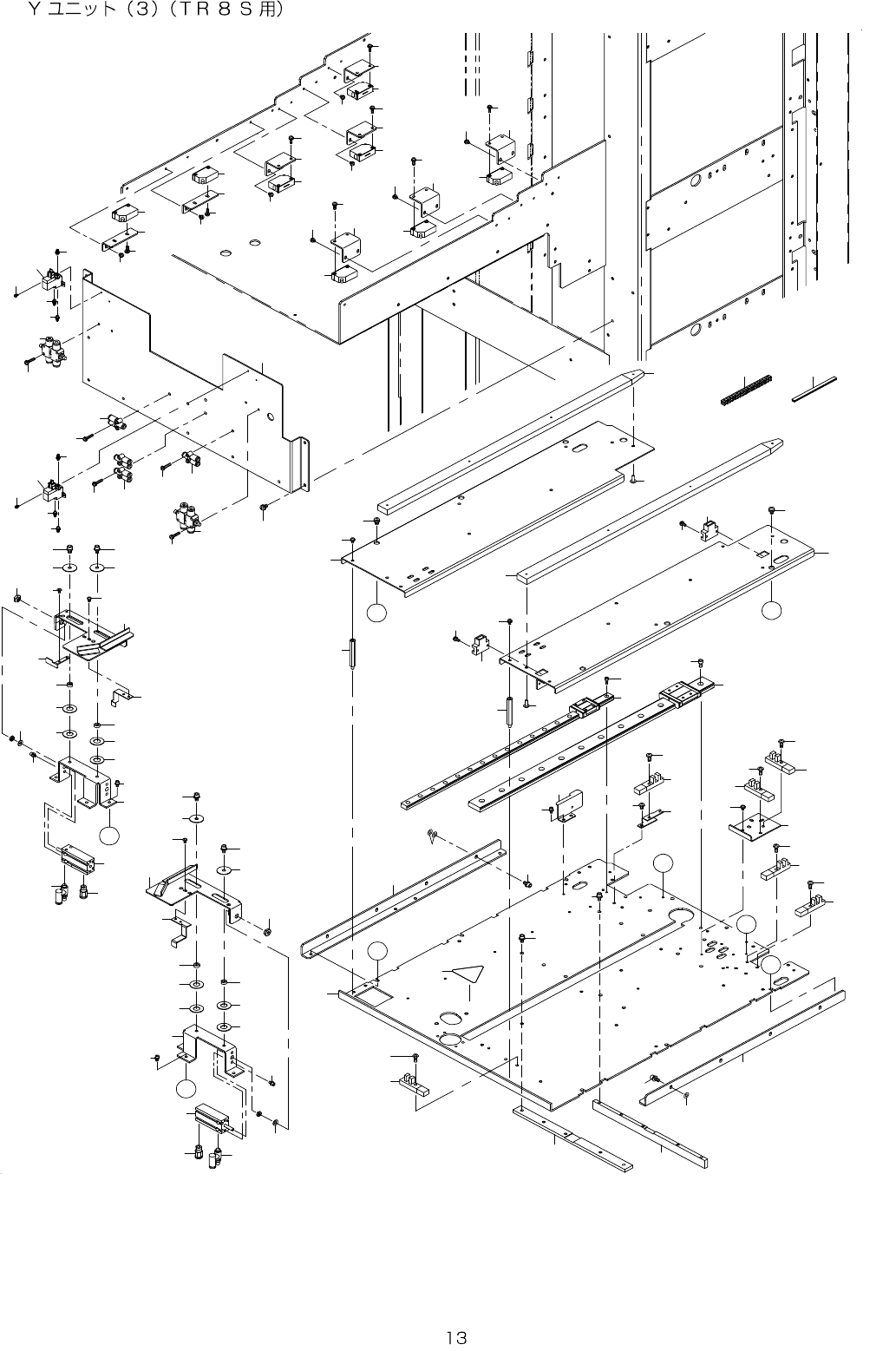

7. YUNIT(3)(FORTR8S)
1
4
3
A
B
2
3
B
5
5
A
6
7
8
9
4 2
4 3
3 4
4 0
3 8
3 9
3 8
3 9
3 5
3 6
3 6
3 6
3 2
3 3
3 1
2 9
4 1
3 7
3 6
3 5
5 8
5 9
5 7
5 1
5 2
5 3
5 3
5 3
4 9
5 0
4 6
5 3
5 2
4 8
5 4
6 0
5 5
5 5
3 0
4 4
4 5
C
C
4 7
5 6
5 6
D
D
6 1
6 2
6 3
6 5
6 5
6 4
6 5
6 4
6 4
6 5
6 5
6 4
6 5
6 3
6 7
7 0
6 6
7 0
7 2
7 1
7 3
7 3
7 4
7 4
7 5
7 5
7 6
7 7
7 7
7 6
1 0
7 8
7 8
1 0
1 6
1 5
1 8
1 6
1 5
1 0
1 31 0
1 1
1 4
1 1
1 0
7 8
7 8
7 8
1 9
2 0
2 1
2 2
2 3
2 5
2 4
2 4
2 5
2 6
2 7
2 6
2 7
2 8
2
1 2
1 0
1 2
7 8
1 3
1
1 7
6 8
6 9
8 2
8 0
8 1
7 9
1 4
1 4
1 4
1 4
1 4
1 9
8 3 8 4
8 5
8 5
8 5
2 3
8 5
8 5
2 2
8 5
2 6
2 7
- -

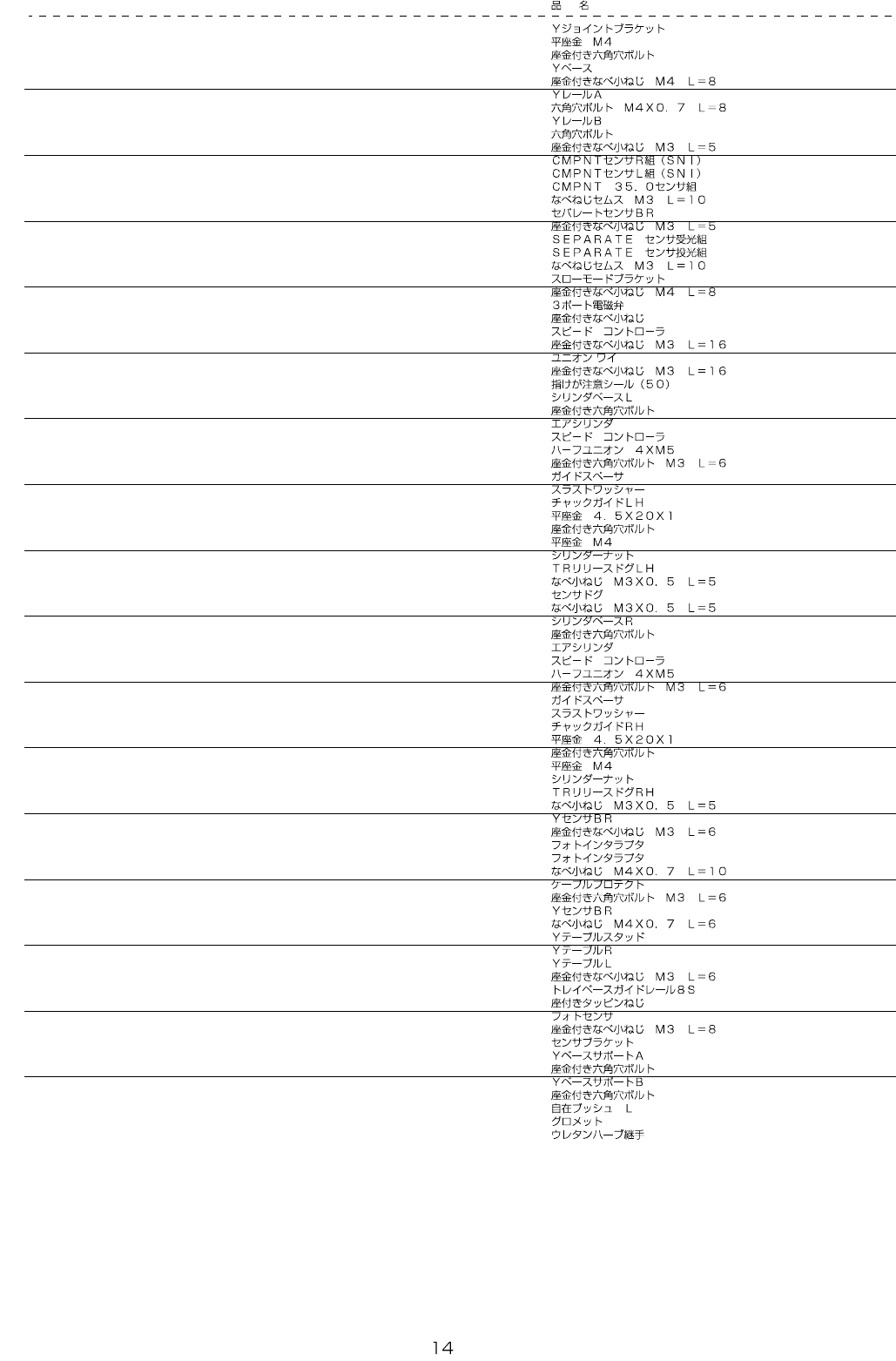

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-54603 Y_JOINT_BR 2
2 WP-0430801-SC WASHERM4 12
3 SL-6040892-TN BOLT 8
4 401-54592 Y_BASE 1
5 SL-4040891-SC SCREWM4L=8 6
6 401-57979 Y_RAIL_A 1
7 SM-6040802-TN SCREW 6
8 401-57980 Y_RAIL_B 1
9 SM-6030802-TN SCREW 6
10 SL-4030591-SC SCREWM3L=5 12
11 401-52797 CMPNTSENSORRASM(SNI) 1
12 401-52798 CMPNTSENSORLASM(SNI) 1
13 401-53402 CMPNT35.0SENSORASM 1
14 SL-4031081-SC SCREWM3X10 12
15 401-55808 SEPARATE_SENSOR_BR 2
16 SL-4030591-SC SCREWM3L=5 4
17 401-29057 SEPARATESENSORRECEIVERASM 1
18 401-29058 SEPARATESENSOREMISSIONASM 1
19 SL-4031081-SC SCREWM3X10 4
20 401-54617 SLOW_MODE_BRACKET 1
21 SL-4040891-SC SCREWM4L=8 4
22 PV-1303060-A0 SOLENOID_VALVE 2
23 SL-4020581-SC WASHERSCREW 4
24 PC-0124010-00 SPEEDCONTROLLER 4
25 SL-4031691-SC SCREWM3L=16 4
26 PJ-3080400-07 UNIONY 4
27 SL-4031691-SC SCREWM3L=16 4
28 CM-3002000-04 LABEL(50) 1
29 E1430-726-000 CYLINDERBASEL 1
30 SL-6030642-TN SCREWM3L=6 3
31 PA-1001524-A0 AIRCYLINDER 1
32 PC-0105190-00 SPEEDCONTROLLER 1
33 PJ-3010405-02 HALFUNION4XM5 1
34 SL-6030692-TN SCREWM3L=6 2
35 E3403-715-000 GUIDESPACER 2
36 E3404-700-000 THRUSTWASHER 4
37 400-48712 CHUCKGUIDELH 1
38 WP-0451016-SP WASHER4.5X20X1 2
39 SL-6040842-TN SCREWM4L=8 2
40 WP-0430801-SC WASHERM4 1
41 E1432-726-000 CYLINDERNUT 1
42 401-57958 TR_RELEASE_DOG_LH 1
43 SM-4030501-SC SCREWM3X0.5L=5 2
44 401-54611 SENSOR_DOG 1
45 SM-4030501-SC SCREWM3X0.5L=5 2
46 E1440-726-000 CYLINDERBASER 1
47 SL-6030642-TN SCREWM3L=6 3
48 PA-1001524-A0 AIRCYLINDER 1
49 PC-0105190-00 SPEEDCONTROLLER 1
50 PJ-3010405-02 HALFUNION4XM5 1
51 SL-6030692-TN SCREWM3L=6 2
52 E3403-715-000 GUIDESPACER 2
53 E3404-700-000 THRUSTWASHER 4
54 400-48713 CHUCKGUIDERH 1
55 WP-0451016-SP WASHER4.5X20X1 2
56 SL-6040842-TN SCREWM4L=8 2
57 WP-0430801-SC WASHERM4 1
58 E1432-726-000 CYLINDERNUT 1
59 400-48715 TRRELEASEDOGRH 1
60 SM-4030501-SC SCREWM3X0.5L=5 2
61 E1328-726-000 YSENSORBR 1
62 SL-4030691-SC SCREWM3L=6 2
63 HD-0017000-00 SENSOR 2
64 HD-0017100-00 SENSOR 4
65 SM-4041001-SC SCREWM4X0.7L=10 6
66 401-54620 CABLE_PROTECT 1
67 SL-6030692-TN SCREWM3L=6 2
68 401-57959 Y_SENSOR_BR 1
69 SM-4040601-SC SCREWM4X0.7L=6 1
70 E1324-726-000 YTABLESTUD 11
71 401-54593 Y_TABLE_R 1
72 401-54594 Y_TABLE_L 1
73 SL-4030691-SC SCREWM3L=6 11
74 401-54605 TRAY_BASE_GUIDE_RAIL_8S 2
75 SV-4031006-SR SCREWM3L=10 8
76 HD-0009000-00 PHOTOSENSOR 2
77 SL-4030881-SC SCREWM3L=8 4
78 401-54601 SENSOR_BRACKET 6
79 401-58046 Y_BASE_SUPPORT_A 1
80 SL-6040892-TN BOLT 5
81 401-58047 Y_BASE_SUPPORT_B 1
82 SL-6040892-TN BOLT 5
83 EA-9002B11-00 BUSHINGL 0.26
84 HX-0066900-0A GROMMET 0.2
85 PJ-0320390-01 CONNECTOR 6
- -

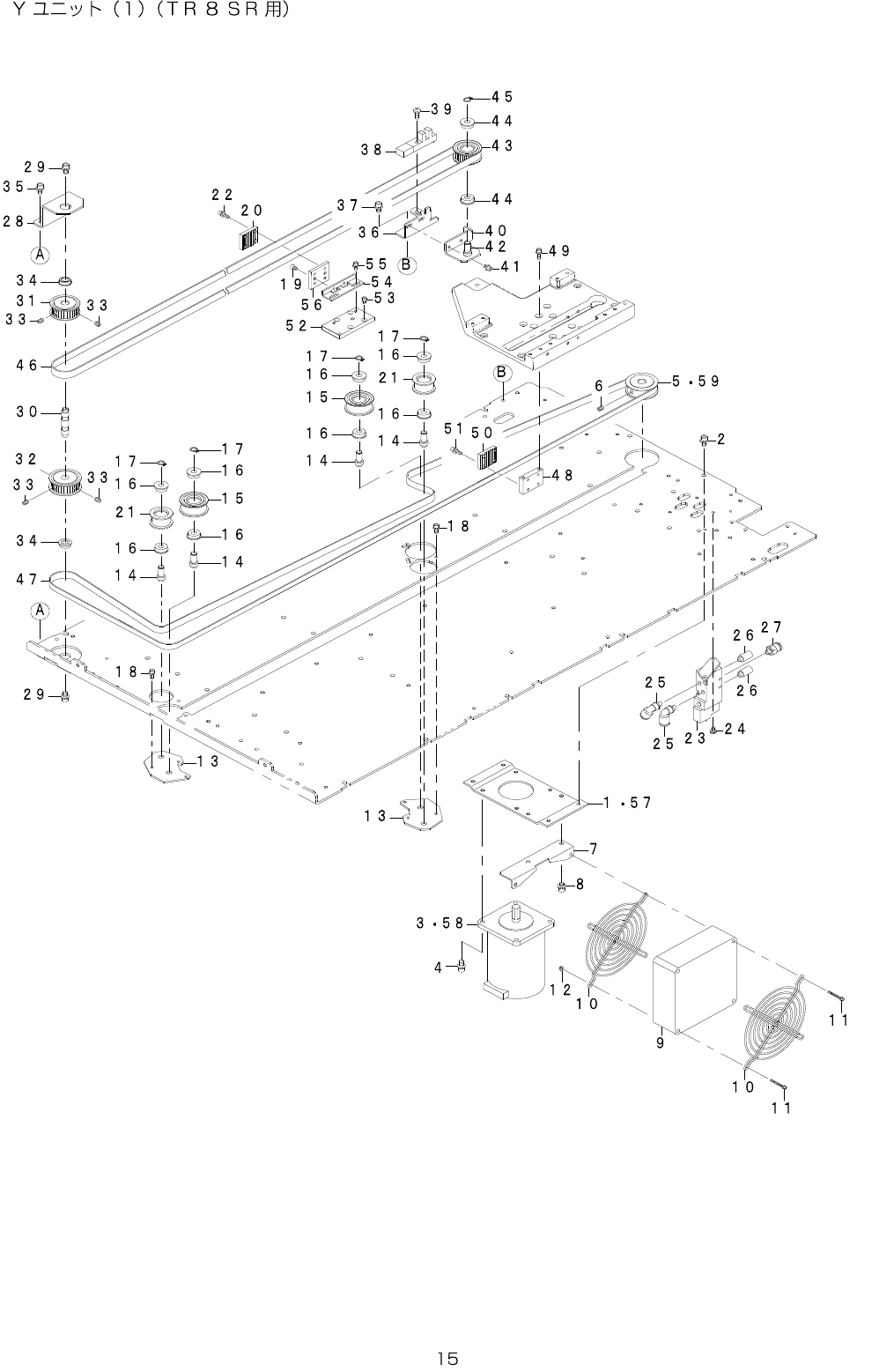

8. YUNIT(1)(FORTR8SR)
