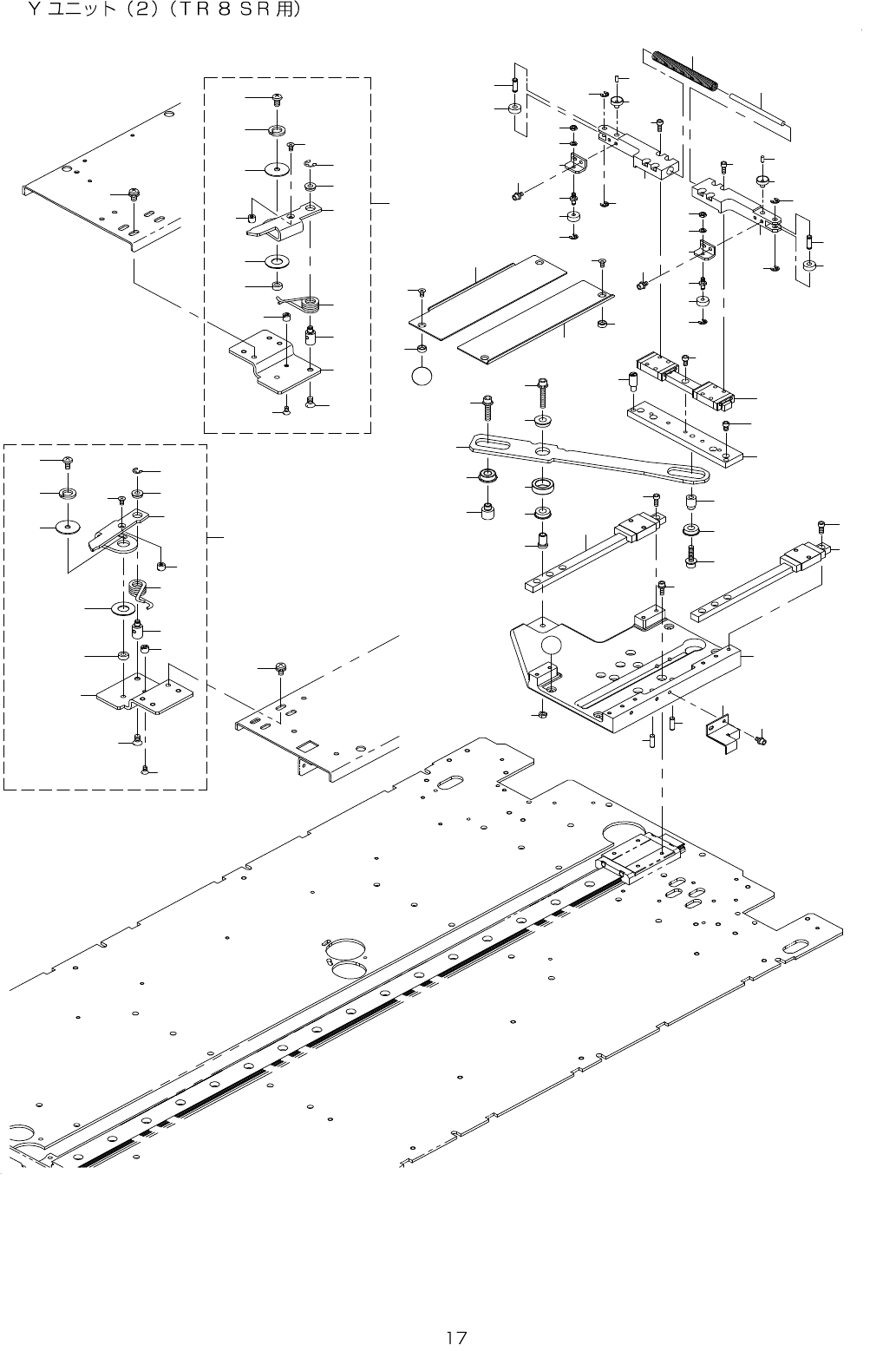

9. YUNIT(2)(FORTR8SR)
1
2
2
3
4
4
5
5
7 5
9
8
7
6
2 5
2 4
1 5
1 4
1 3
1 7
1 6
1 7
1 4
1 3
1 7
1 1
1 7
1 5
1 6
1 0
1 2
1 2
2 1
2 2
1 9
1 8
2 3
2 0
2 0
2 3
1 8
1 9
2 2
2 1
2 6
2 7
3 6
2 8
3 4
3 3
3 4
3 2
3 0
2 9
3 1
7 2
7 4
7 3
3 5
4 0
3 7
3 9
A
3 8
3 9
4 0
A
5 6
6 2
6 8
6 9
6 7
6 1
6 4
5 8
6 4
6 3
5 9
7 0
6 3
6 5
6 0
5 7
6 6
4 4
4 7
5 4
5 3
4 9
4 8
5 0
5 1
4 8
4 9
4 2
4 5
4 6
5 5
4 3
5 2
4 1
7 1
7 1
7 6
7 6
- -

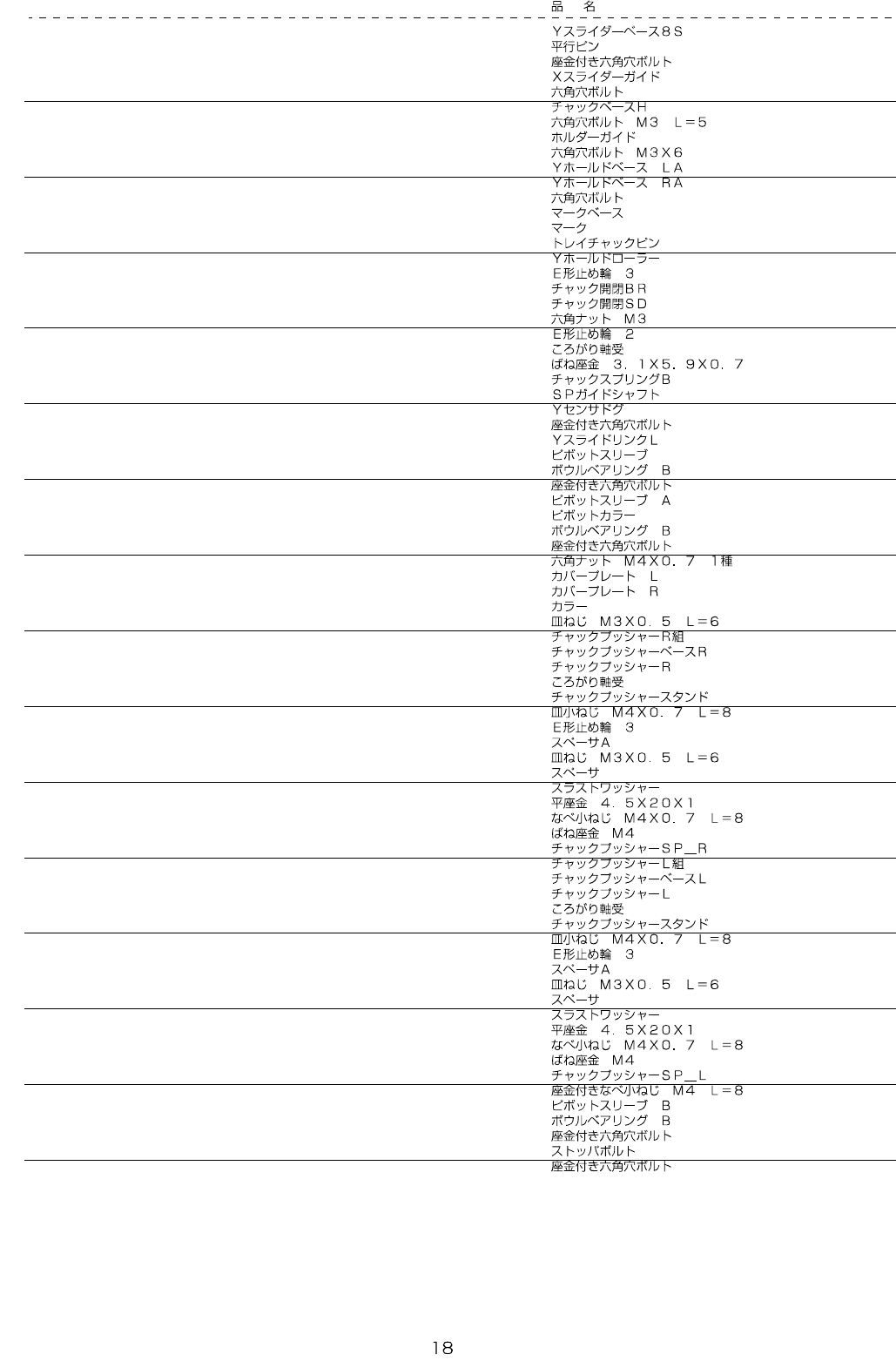

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-54608 Y_SLIDER_BASE_8S 1
2 PH-0400122-C0 PIN 2
3 SL-6031092-TN SCREW 4
4 400-49188 XSLIDERGUIDE 2
5 SM-6030802-TN SCREW 10
6 E1452-726-000 CHUCKBASEH 1
7 SM-6030502-TN SCREWM3L=5 4
8 400-48776 HOLDERGUIDE 1
9 SM-6030602-TN SCREWM3X6 5
10 E6137-723-000 YHOLDBASELA 1
11 E6138-723-000 YHOLDBASERA 1
12 SM-6030802-TN SCREW 8
13 E1420-726-000 MARKBASE 2
14 E2601-725-000 MARK 2
15 E1401-726-000 TRAYCHUCKPIN 2
16 400-48807 YHOLDROLLER 2
17 RE-0300000-K0 E-RING3 4
18 E1425-726-000 CHUCKO-SBR 2
19 E1426-726-000 CHUCKO-SSD 2
20 NM-6030003-SC NUTM3 2
21 RE-0200000-K0 E-RING2 2
22 SB-1030002-00 BEARING 2
23 WS-0310002-KN SPRINGWASHERM3 2
24 401-65087 CHUCK_SP_B 1
25 E1459-726-000 SPGUIDESHAFT 1
26 E1390-726-000 YSENSORDOG 1
27 SL-6030642-TN SCREWM3L=6 2
28 401-83094 Y_SLIDE_LINK_L 1
29 400-49268 PIVOTSLEEVE 1
30 SB-1060007-00 BALLBEARING 1
31 400-49273 SCREW 1
32 400-49266 PIVOTSLEEVEA 1
33 400-49267 PIVOTCOLLAR 1
34 SB-1060007-00 BALLBEARING 2
35 SL-6042592-TN SCREW 1
36 NM-6040001-SC NUTM4X0.7TYPE1 1
37 400-49270 COVERPLATEL 1
38 400-49271 COVERPLATER 1
39 400-49272 COLLAR 4
40 SM-1030601-SC SCREWM3L=6 4
41 401-83511 CHUCK_PUSHER_R_ASM 1
42 401-41120 CHUCK_PUSHER_BASE_R (1)
43 401-83108 CHUCK_PUSHER_R (1)
44 SB-1040011-00 BEARING (1)
45 401-41124 CHUCK_PUSHER_STAND (1)
46 SM-1040801-SC SCREWM4X0.7L=8 (1)
47 RE-0300000-K0 E-RING3 (1)
48 401-41126 SPACER_A (2)
49 SM-1030601-SC SCREWM3L=6 (2)
50 401-41125 SPACER (1)
51 E3404-700-000 THRUSTWASHER (1)
52 WP-0451016-SP WASHER4.5X20X1 (1)
53 SM-4040801-SC SCREWM4X0.7L=8 (1)
54 WS-0410002-KN SPRINGWASHERM4 (1)
55 401-41127 CHUCK_PUSHER_SP_R (1)
56 401-83512 CHUCK_PUSHER_L_ASM 1
57 401-41121 CHUCK_PUSHER_BASE_L (1)
58 401-83107 CHUCK_PUSHER_L (1)
59 SB-1040011-00 BEARING (1)
60 401-41124 CHUCK_PUSHER_STAND (1)
61 SM-1040801-SC SCREWM4X0.7L=8 (1)
62 RE-0300000-K0 E-RING3 (1)
63 401-41126 SPACER_A (2)
64 SM-1030601-SC SCREWM3L=6 (2)
65 401-41125 SPACER (1)
66 E3404-700-000 THRUSTWASHER (1)
67 WP-0451016-SP WASHER4.5X20X1 (1)
68 SM-4040801-SC SCREWM4X0.7L=8 (1)
69 WS-0410002-KN SPRINGWASHERM4 (1)
70 401-41128 CHUCK_PUSHER_SP_L (1)
71 SL-4040891-SC SCREWM4L=8 8
72 400-49264 PIVOTSLEEVEB 1
73 SB-1060007-00 BALLBEARING 1
74 SL-6042092-TN SCREWM4L=20 1
75 E1455-726-000 STOPPERBOLT 2
76 SL-6030642-TN SCREWM3L=6 2
- -

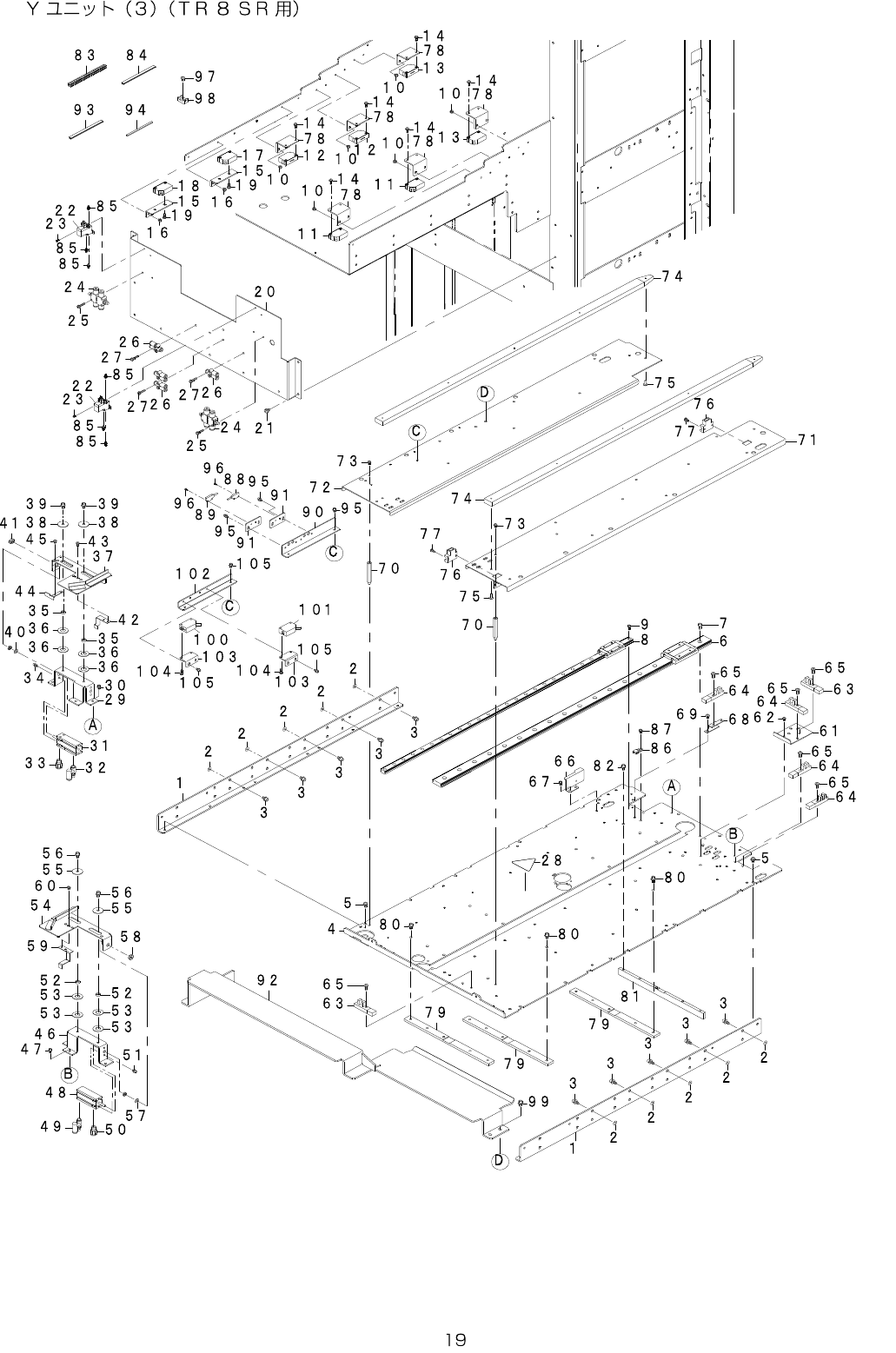

10.YUNIT(3)(FORTR8SR)
