- - 13. STACKERUNIT 1 3 1 2 2 9 2 2 2 2 2 2 2 2 2 2 2 2 9 2 9 2 9 2 1 3 2 2 3 1 2 2 2 2 2 2 2 2 5 6 7 8 9 1 0 1 1 1 9 1 1 1 9 2 6 1 4 2 6 1 4 2 2 2 4 2 0 2 2 1 5 1 7 1 8 2 0 2 4 2 0 2 2 2 2 2 2 2 2 2 3 2 5 2 2 2 2 7 …

100%1 / 50
- -

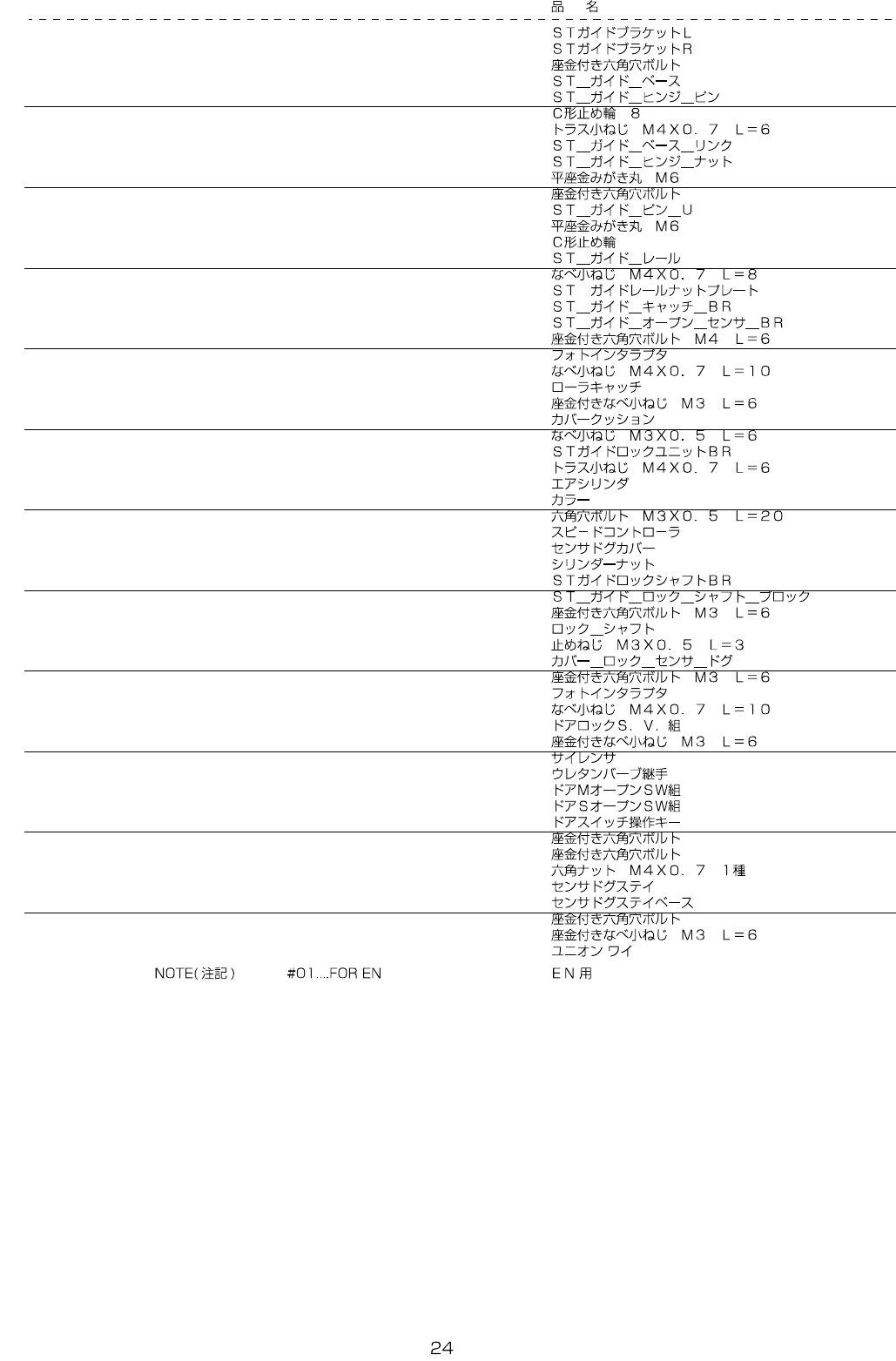

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-54674 ST_GUIDE_BRL 2
2 401-54675 ST_GUIDE_BR_R 2
3 SL-6040892-TN BOLT 12
4 401-54582 ST_GUIDE_BASE 2
5 401-54581 ST_GUIDE_HINGE_PIN 4
6 RC-0740811-KP C-RING 4
7
#01
SM-0040601-SC SCREWM4X0.7L=6 8
8 401-54580 ST_GUIDE_BASE_LINK 4
9 401-54677 ST_GUIDE_HINGE_NUT 4
10 WP-0641601-SC WASHER 4
11 SL-6051092-TN BOLT 8
12 401-54585 ST_GUIDE_PIN_U 4
13 WP-0641601-SC WASHER 8
14 RC-0560711-KP RETAININGRING 8
15 401-54584 ST_GUIDE_RAIL 4
16 SM-4040801-SC SCREWM4X0.7L=8 16
17 401-54729 STGUIDERAILNUTPLATE 4
18 401-54574 ST_GUIDE_CATCH_BR 2
19 401-54573 ST_GUIDE_OPEN_SENSOR_BR 2
20 SL-6040692-TN SCREWM4L=6 8
21 HD-0017100-00 SENSOR 2
22 SM-4041001-SC SCREWM4X0.7L=10 2
23 E5117-172-000 ROLLERCATCH 2
24 SL-4030691-SC SCREWM3L=6 4
25 400-49671 COVERCUSHION 2
26 SM-4030601-SC SCREWM3X6 2
27 401-54723 STGUIDELOCKUNITBR 2
28 SM-0040601-SC SCREWM4X0.7L=6 4
29 PA-1001524-A0 AIRCYLINDER 2
30 401-54676 COLLAR 4
31 SM-6032002-TN SCREWM3X0.5L=20 4
32 PC-0105080-00 SPEEDCONTROLLER 4
33
#01
401-54671 SENSORDOGCOVER 2
34 E1432-726-000 CYLINDERNUT 2
35 401-54728 STGUIDELOCKSHAFTBR 2
36 401-54577 ST_GUIDE_LOCK_SHAFT_BLOCK 2
37 SL-6030692-TN SCREWM3L=6 4
38 401-54576 LOCK_SHAFT 2
39 SM-8030302-TP SCREWM3X0.5L=3 2
40 401-54579 COVER_LOCK_SENSOR_DOG 2
41 SL-6030692-TN SCREWM3L=6 2
42 HD-0017100-00 SENSOR 2
43 SM-4041001-SC SCREWM4X0.7L=10 2
44 401-54361 DOORLOCKS.V.ASM 1
45 SL-4030691-SC SCREWM3L=6 2
46 E3274-760-000 SILENCER 2
47 PJ-0320390-01 CONNECTOR 3
48
#01
400-45228 DOORMOPENSWASM 1
49
#01
400-45233 DOORSOPENSWASM 1
50
#01
HA-0045500-30 SWITCH 2
51
#01
SL-6040892-TN BOLT 4
52
#01
SL-6044092-TN SCREW 4
53
#01
NM-6040001-SC NUTM4X0.7TYPE1 4
54
#01
401-54672 SENSORDOGSTAY 2
55
#01
401-54673 SENSORDOGSTAYBASE 2
56
#01
SL-6040892-TN BOLT 8
57 SL-4030681-SC SCREWM3L=6 4
58 PJ-3080400-07 UNIONY 2
- -

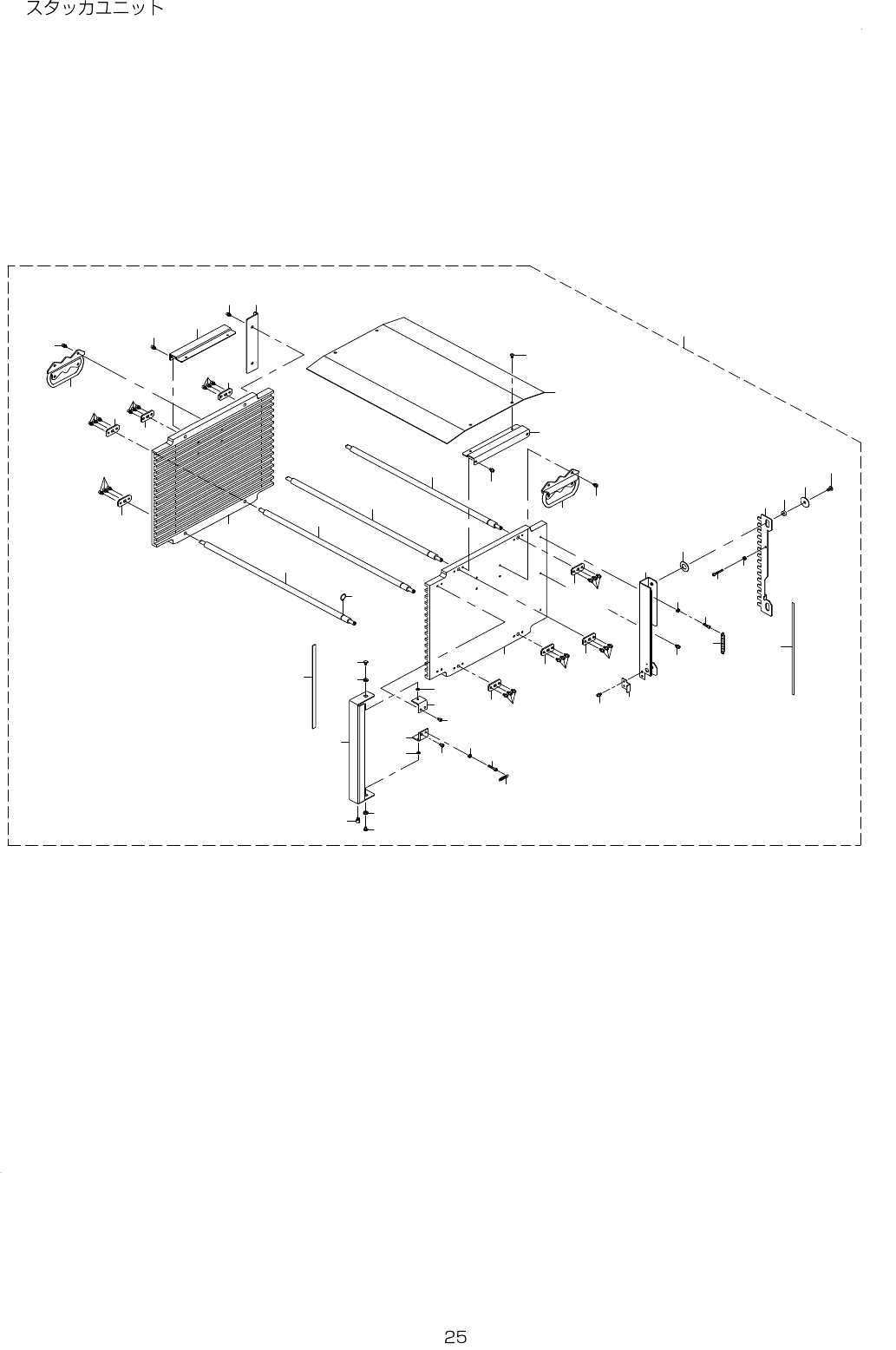

13.STACKERUNIT
1 3
1 2
2 9
2
2 2
2 2
2 2
2
2
2 2
2 9
2 9
2 9
2 1
3
2 2
3
1
2
2 2
2
2
2
2 2
5
6
7
8
9
1 0
1 1
1 9
1 1
1 9
2 6
1 4
2 6
1 4
2 2
2 4
2 0
2 2
1 5
1 7
1 8
2 0
2 4
2 0
2 2
2 2
2 2
2 2
2 3
2 5
2 2
2
2 7
2 8
2 2
4
1 6
3 1
2 2
2 2
3 1
3 0
3 2
- -

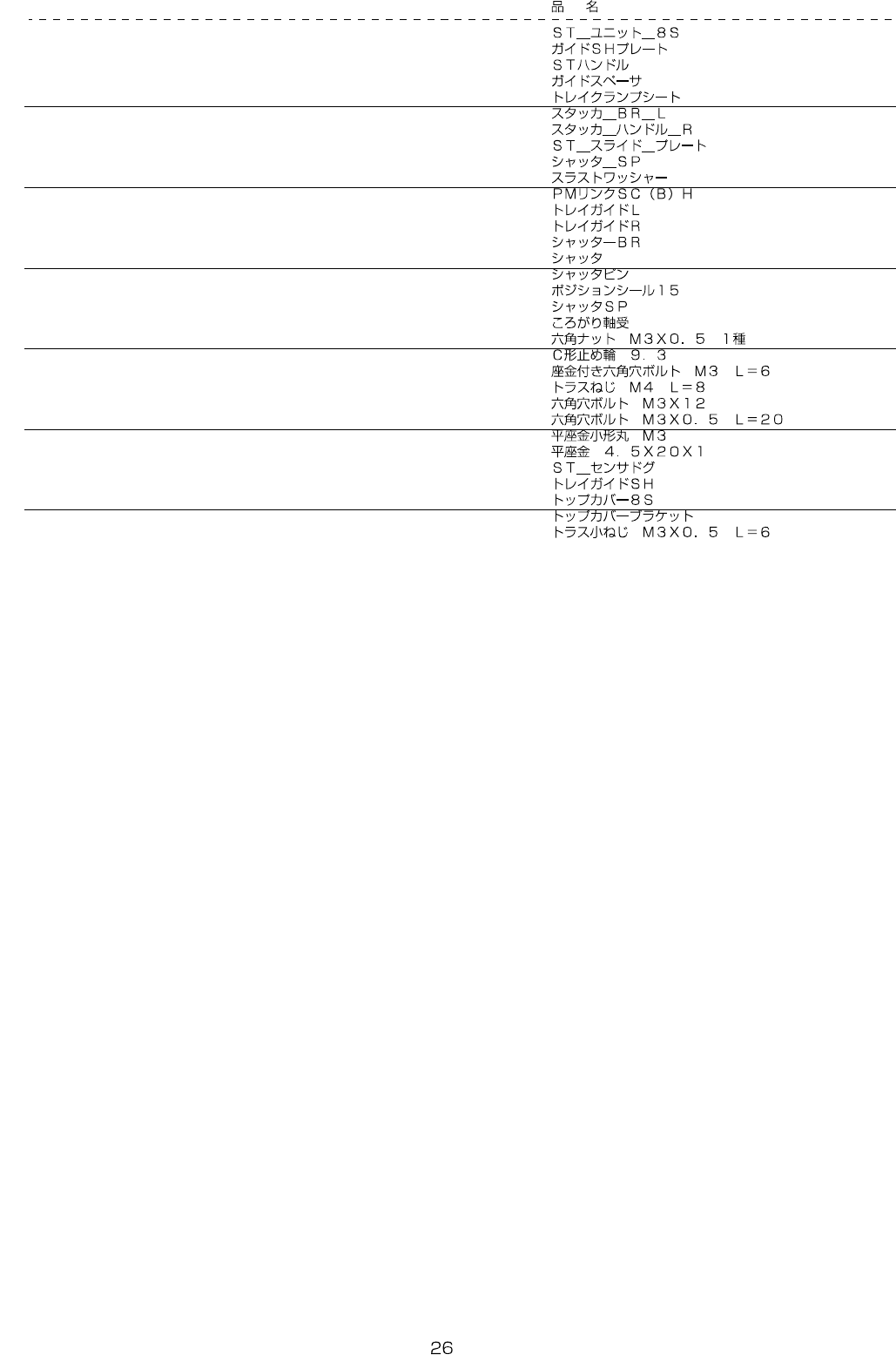

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-55490 ST_UNIT_8S 2
2 E1504-726-000 GUIDESHPLATE (8)
3 E1515-726-000 STHANDLE (2)
4 E1519-726-000 GUIDESPACER (2)
5 E1572-726-000 TRAYCLAMPSHEET (1)
6 401-54566 STACKER_BR_L (1)
7 401-54567 STACKER_HANDLE_R (1)
8 401-54569 ST_SLIDE_PLATE (1)
9 E3040-723-000 SHUTTERSP (1)
10 E3404-700-000 THRUSTWASHER (2)
11 E4560-531-000 PMLINKSC(B)H (2)
12 E4601-717-000 TRAYGUIDEL (1)
13 E4602-717-000 TRAYGUIDER (1)
14 E4605-717-000 SHUTTERBR (2)
15 401-54732 SHUTTER (1)
16 E1512-726-000 SHUTTERPIN (1)
17 E4608-717-000 POSITIONSEAL15 (1)
18 E1503-726-000 SHUTTERSP (1)
19 SB-1040004-00 ROLLINGSHAFTHOLDER (2)
20 NM-6030001-SC NUTM3X0.5TYPE1 (3)
21 RC-0100001-KP SNAPRINGM10 (1)
22 SL-6030692-TN SCREWM3L=6 (46)
23 SM-0040801-SC SCREW (2)
24 SM-6031202-TN SCREWM3X12 (2)
25 SM-6032002-TN SCREWM3X0.5L=20 (1)
26 WP-0320500-SC WASHERM3 (2)
27 WP-0451016-SP WASHER4.5X20X1 (2)
28 401-54686 ST_SENSOR_DOG (1)
29 E1502-726-000 TRAYGUIDESH (4)
30 401-61920 TOP_COVER_8S (1)
31 401-61921 TOP_COVER_BR (1)
32 SM-0030601-SC SCREWM3X0.5L=6 (4)
