B-64
2-5. Flange Replacement (2.2 kW Spindle)
[Optional Accessory]
Operation flow
The flange replacement procedure consists of the following steps.
2-5-1 Removing the flange (2.2 kW spindle)
2-5-2 Mounting the flange (2.2 kW spindle)
Type of the spindle and flange
Spindle Name
2.2 kW spindle S-type flange
Before operation
Have on hand the following jigs for flange replacement.
Jig Name Function
Bit
Torque wrench
Used to remove or mount the flange B
and flange B lock nut, which secure
flange type blades.
Nut demounting jig Used to remove or mount the flange B.
FlangeA removing jig Used to remove the flange A.
[Other]
Alcohol / Lint-free waste
B-65
Torque wrench set (2.2 kW Spindle)
It is used to remove the lock bolt.
Torque wrench
Bit
Jig Name Part No.
Bit (S4) MOKBN011
Torque wrench MOKBN010
Nut demounting jig (2.2 kW Spindle)
It is used to remove or mount the flange B lock nut.
Jig Name Part No.
Nut demounting jig MAKBN004
B-66

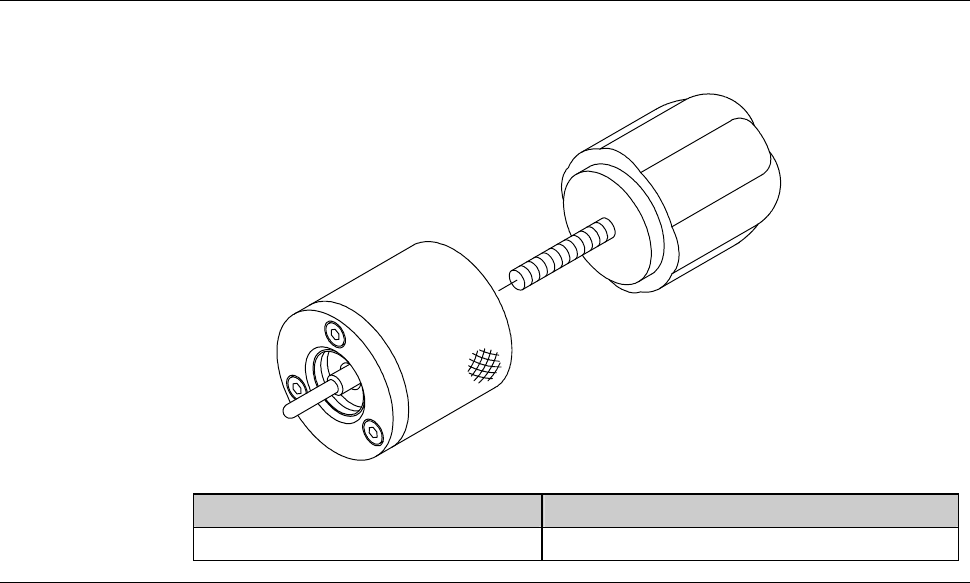

FlangeA removing jig (2.2 kW Spindle)
It is used to remove the flangeA.
[2.2 kW Spindle: S-Type Flange]
Removing jig B
Removing jig A
Jig Name Part No.
Removing jig (flange) MAKBN006
