B-70

Procedures for removing the flange (2.2 kW spindle) (Continued)

Step No. Do This

Turn the torque wrench counterclockwise.

- The lock bolt rotates counterclockwise and comes loose.

Remove the lock bolt and washer.

Insert the pin of the removing jig A into the hole at the center of

the spindle.

Screw the removing jig A in the screw thread at the tip of the

flange A and turn it twice or more.

- In order to screw the removing jig A in the flangeA, turn it

clockwise.

- If the removing jig Ais screwed in shallowly, this could lead to

breakage of the flange A.

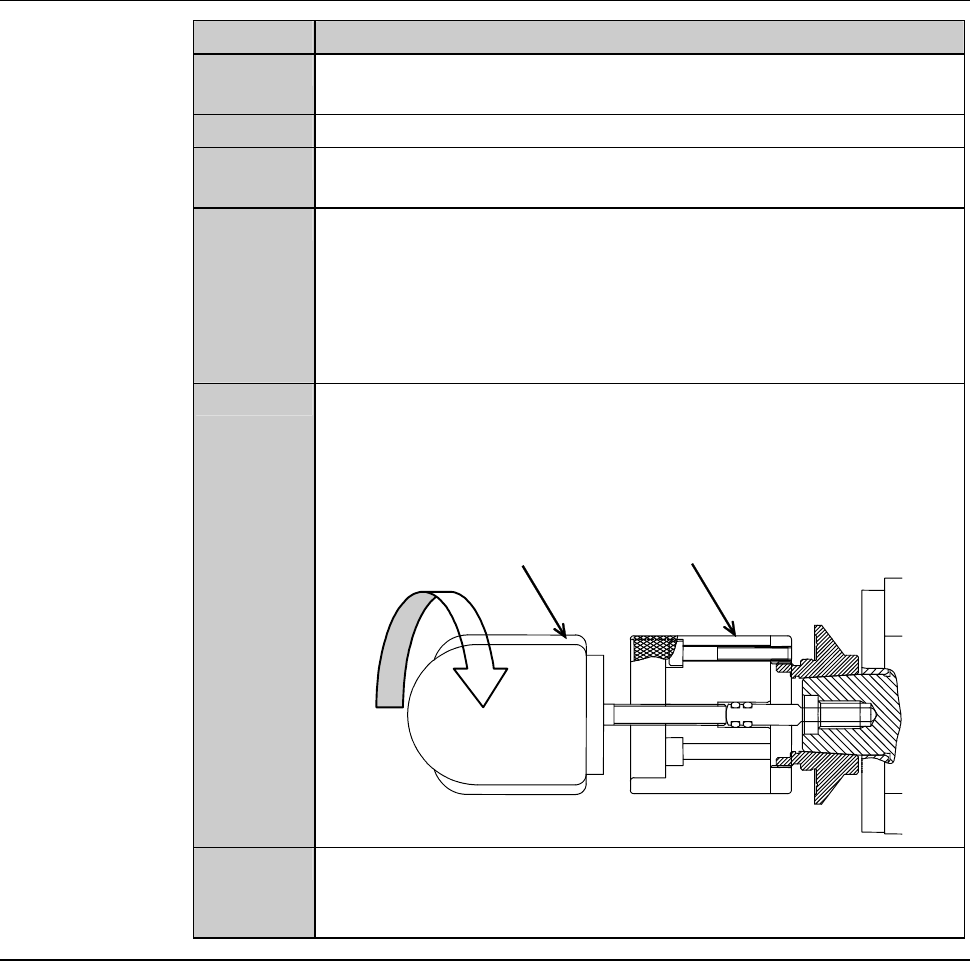

While holding the removing jig A so that it does not turn, screw

the removing jig B in the tap hole at the tail of the removing jig

- In order to screw the removing jig B in the jig A, turn it

clockwise.

Removing jig A

Removing jig B

Turn it clockwise

While holding the removing jig A so that it does not turn, turn the

removing jig B clockwise.

- The flange A comes off.

Continued in the next section.

B-71

2-5-2. Mounting the flange (2.2 kW spindle)

Safety precautions for mounting the flange (2.2 kW spindle)

WARNING

- In the flange mounting operation, you have to touch the spindle-axis

section and axis operating section directly by your hands. Unless

the spindle stops, your hands or fingers may be caught or cut off.

Before opening the splash cover, visually make sure from outside of

the cover that the spindle is completely stopped.

Ensure that no other person touches the machine during operation.

While you don't use the touch panel, press the Disco's logo button

located at the upper left of the screen in order to lock up and

deactivate the touch panel.

- If the spindle is rotated at a speed higher than the maximum

permissible speed for the blade outside diameter, blade breakage

or flange separation may occur and cause personal injury or

damage to the machine.

The spindle rotating speed varies depending on the outside

diameter of the installed blade. Be sure that the employed spindle

rotating speed is suitable for the outside diameter of the installed

blade.

Blade

diameter

[inch]

Maximum spindle

rotating speed

[min

-1

(rpm)]

Time to reach

maximum

speed [s]

Time needed for

complete stop [s]

3 30,000 30 15

B-72

Safety precautions for mounting the flange (2.2 kW spindle) (Continued)

WARNING

- If the lock bolt is tightened to a torque smaller than specified, it may

come off to incur flange separation that could cause personal injury

or damage to the machine.

Tighten the lock bolt to the specified torque with the supplied torque

wrench.

[Procedures for tightening the lock bolt]

1: Torque the lock bolt to 8.0 N·m.

2: Close the cover.

3: Turn ON the spindle at the rotating speed to be used for cutting.

(Any button operation including turning OFF the spindle will be

deactivated until the rotating speed reaches the maximum.)

4: After the spindle rotation for sufficient time, turn OFF the spindle.

(Spindle rotations for too short time may cause flange loosing

while cutting. Take due account of the "Time to reach maximum

speed" in the table below.)

5: Torque the lock bolt to 8.0 N·m again.

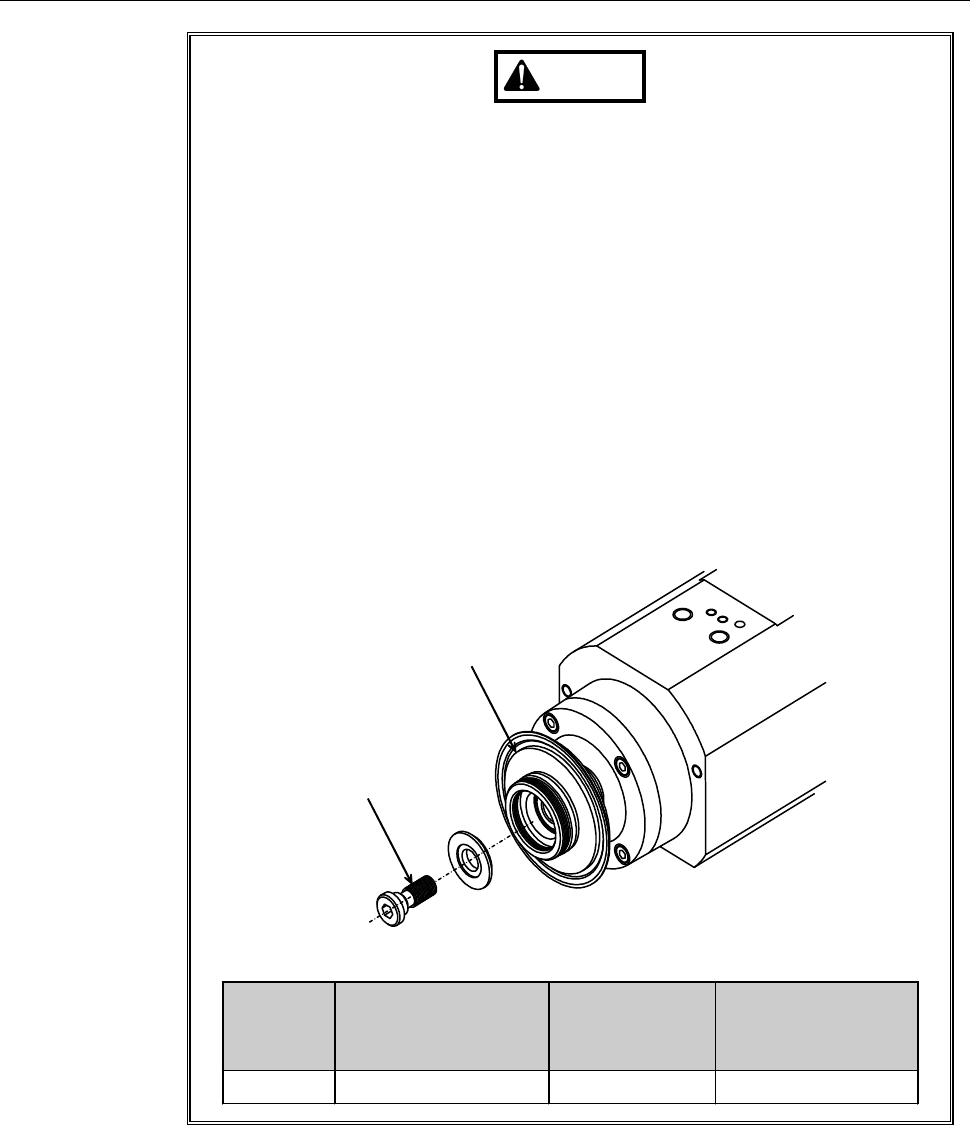

Lock bolt

Flange
