B-98 Procedur es for re moving the s pinner tabl e (Continued) Step No. Do This 6 Remove the spinner table. 7 With a lint-free cloth moistened with alcohol, clean the removed spinner table. 8 Enclose the cleaned spin ner…
B-97
3-4-1. Removing the spinner table
Procedures for removing the spinner table
Step No. Do This
(Continued from the previous section)
1
Press the <F1> button on the CHANGE FRAME SIZE screen
[screen 6.1].
- The upper arm moves to above the chuck table.
2
Press the <F2> button on the CHANGE FRAME SIZE screen
[screen 6.1].
- The lower arm moves to above the chuck table.
3
Visually make sure that all drive sections stop completely.
4
Open the rear arm section cover.
5

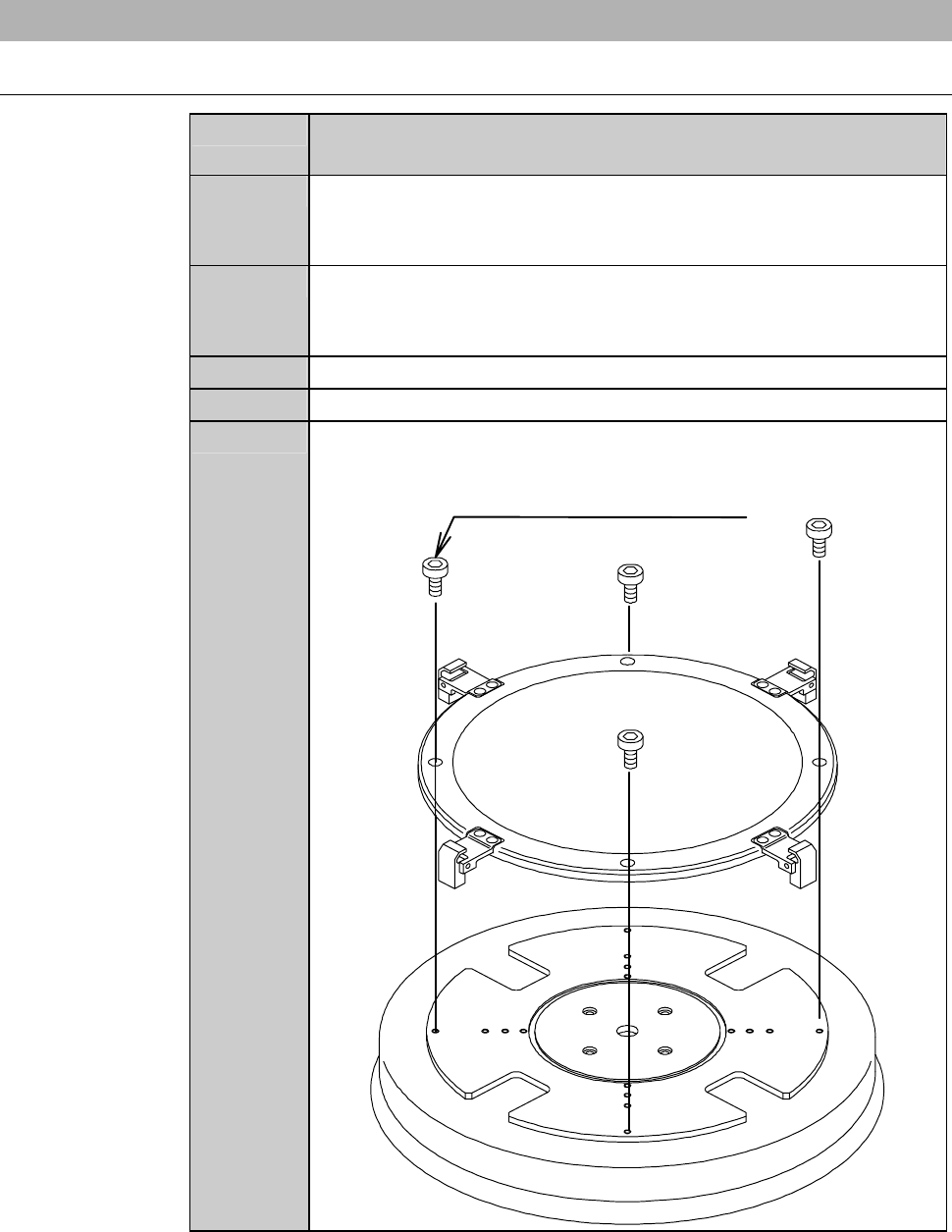

Remove the retaining screw of the spinner table.
M4 (for
φ
8" spinner table)
M6 (for
φ
300mm spinner table)
B-98
Procedures for removing the spinner table (Continued)
Step No. Do This
6
Remove the spinner table.
7
With a lint-free cloth moistened with alcohol, clean the removed
spinner table.
8
Enclose the cleaned spinner table in the packing material, to
avoid flaws, and then store it.
Continued in the next section.
B-99
3-4-2. Mounting the spinner table
Procedures for mounting the spinner table
Step No. Do This
(Continued from the previous section)
1
With a lint-free cloth moistened with alcohol, clean the spinner
table to be installed and the table base.
2
Set the spinner table on the table base.
3
Screw down the all retaining screws of the spinner table.
4
Close the rear arm section cover.
Continued in the next section.
